10 Jul, 2025 4 Views Author: Cherry Shen

Research on Capacitor Leakage Current Testing with Capacitor IR Meter: A Case Study of LISUN LS6586 Series

Abstract
This paper delves into the critical significance of capacitor leakage current testing within the electronics industry. It introduces the fundamental principles of capacitor leakage current and insulation resistance (IR) testing, while focusing on the application of advanced testing equipment – the Capacitor IR Meter. Taking the LISUN LS6586 Series Capacitor Leakage Current Tester as a specific case, this paper elaborates on its technical specifications, functional characteristics, and practical application scenarios. Additionally, it provides detailed comparative data through tables to highlight the device’s performance advantages in enhancing testing efficiency and accuracy. The research aims to offer a comprehensive reference for professionals engaged in capacitor production, quality control, and related testing fields.

1. Introduction
Capacitors serve as indispensable passive electronic components, widely utilized in various electronic devices and systems such as power supplies, circuits, and communication equipment. The leakage current of a capacitor refers to the small current that flows through the dielectric material when a DC voltage is applied, which is an important indicator reflecting the quality and reliability of the capacitor. Excessive leakage current can lead to energy loss, overheating of components, and even cause circuit failures or equipment malfunctions. Therefore, accurate measurement of capacitor leakage current and insulation resistance is of great significance for ensuring the performance and service life of electronic products.
The Capacitor IR Meter is a specialized testing instrument designed to measure the leakage current and insulation resistance of capacitors. It plays a crucial role in the production, testing, and maintenance processes of capacitors. This paper takes the LISUN LS6586 Series Capacitor Leakage Current Tester, a typical representative of such meters, as an example to systematically analyze its technical parameters, functional features, and application values.

2. Basic Principles of Capacitor Leakage Current and IR Testing

2.1 Leakage Current Mechanism

When a DC voltage is applied to a capacitor, an ideal capacitor should exhibit infinite resistance, with no current flowing through the dielectric. However, in reality, due to the imperfection of the dielectric material, a small current – the leakage current (LC) – will flow. This current is mainly caused by the ionization of impurities in the dielectric, the movement of ions, and other factors. The magnitude of the leakage current directly reflects the quality of the dielectric. For example, in electrolytic capacitors, excessive leakage current may indicate defects in the oxide film, while in film capacitors, it may be related to the purity of the dielectric material.

2.2 Insulation Resistance (IR) Testing

Insulation resistance is defined as the ratio of the applied DC voltage to the leakage current, expressed by the formula:
IR=V/ILC, where V is the test voltage and ILC is the leakage current. IR testing is an effective method to evaluate the insulation performance of capacitors. A higher IR value indicates better insulation performance and lower leakage current. The test principle involves applying a specific DC voltage to the capacitor and measuring the resulting leakage current to calculate the IR value.

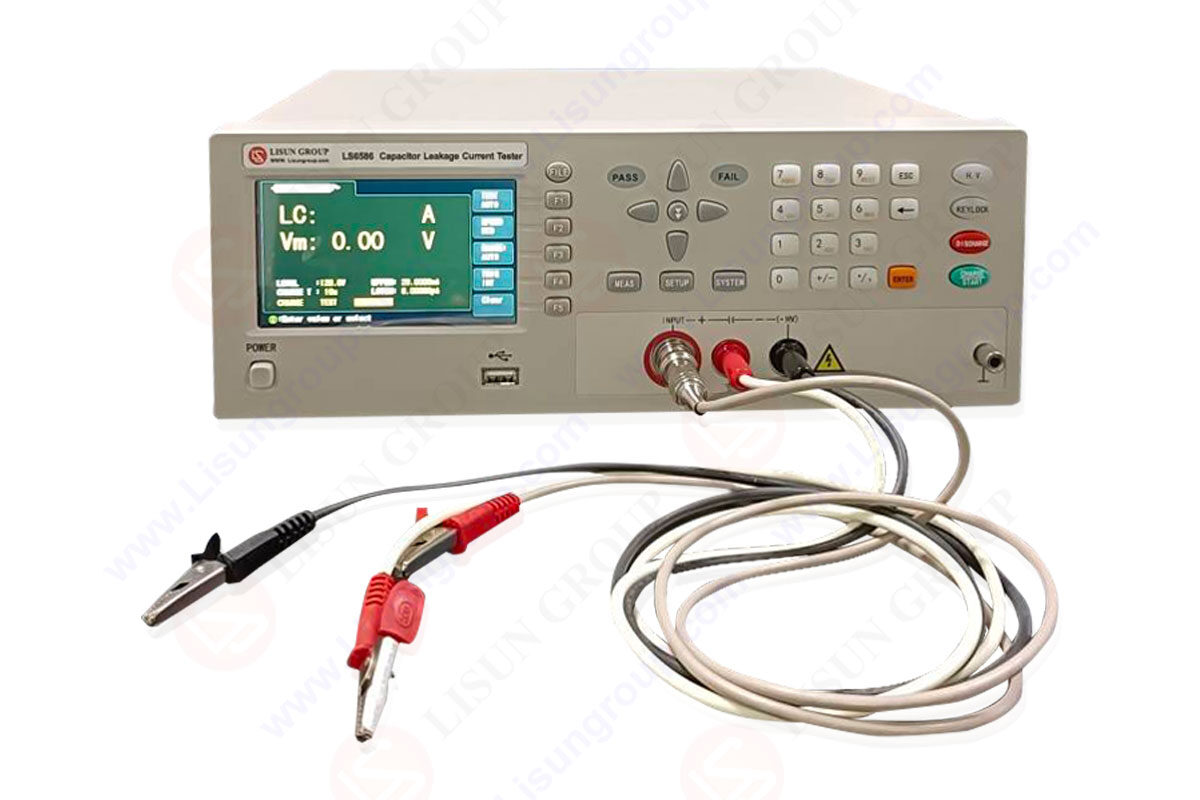

Research on Capacitor Leakage Current Testing with Capacitor IR Meter: A Case Study of LISUN LS6586 Series

LS6586_Capacitor Leakage Current Tester

3. Overview of LISUN LS6586 Series Capacitor IR Meter

The LISUN LS6586 Series Capacitor Leakage Current Tester is a high – performance Capacitor IR Meter developed by LISUN Group, a renowned manufacturer of electronic testing instruments. It is designed to meet the diverse testing needs of capacitors in different application scenarios, featuring high stability, high reliability, and user – friendly operation.

3.1 Product Features

• High Precision and Stability: Adopting advanced measurement circuits and high – quality components, the instrument ensures accurate and stable measurement results. Its measurement accuracy for leakage current reaches 1%±0.05μA, and the voltage accuracy is 0.5% of the set value ±0.2V, making it suitable for high – precision testing requirements.
• Wide Measurement Range: The LS6586 series covers a broad measurement range for both leakage current and insulation resistance. The leakage current measurement range is 0.001μA−20.00mA, and the insulation resistance measurement range is 0.01kΩ−99.99GΩ, enabling it to handle various types of capacitors, from small – value capacitors to large – capacity power capacitors.
• Flexible Test Voltage: The test voltage is continuously adjustable. For example, the LS6586 – 500 model can provide a test voltage ranging from 1V to 500V, and the LS6586 – 800 model can reach 1V to 800V. This allows users to select the appropriate test voltage according to the rated voltage and test requirements of the capacitor, ensuring the scientificity and rationality of the test.
•Abundant Interfaces and Automation Capability: Equipped with multiple interfaces such as RS232, USB, GPIB (optional), and Handler port, the instrument supports seamless integration with automated testing systems. It can communicate with computers, PLCs, and other devices to realize functions such as data transmission, remote control, and automated sorting of test results. The SCPI (Standard Commands for Programmable Instruments) instruction set further facilitates the establishment of automated testing systems, improving testing efficiency and reducing manual operation errors.
• Convenient Data Management: The instrument has an internal storage capacity to save 50 sets of test conditions, and can store 500 sets of test files on a USB disk. It also supports functions such as data recording, saving, and processing as required, making it easy for users to manage and analyze test data. The USB automatic upgrade function allows customers to customize functions and update the instrument’s software conveniently, keeping it adaptable to evolving testing needs.
• User – Friendly Interface and Operation: With a color LCD display, the instrument provides clear and intuitive display of test parameters and results. The comparator function can automatically determine whether the test results are qualified and realize sorting of qualified and unqualified products. It also has functions such as buzzer alarm and indicator display, making the operation more convenient and the test status more visible.

3.2 Model Comparison

Model

LS6586-500

LS6586-800

Test voltage

1-500V,Continuously adjustable

1-800V,Continuously adjustable

Test function

LC(Leakage current)、IR(Insulation resistance)

Voltage accuracy

0.5%  Set value ±0.2V

Measuring range

LC(0.001uA-20.00mA)、IR(0.01kΩ-99.99G)

Measurement accuracy

1%±0.05uA

Charging time

0-999s,Continuously adjustable

Test time

Fast:About 30 times/second,Medium:About 15 times/second,Slow:About 6 times per second

Test range

Automatic, 20mA, 2mA, 200µA, 20µA, 2µA total of 5 ranges

HANDLER port

Pass, fail, exceed the upper limit, exceed the lower limit, buzzer alarm, indicator display

Rich interface

RS232、USB DEVICE、GPIB(Optional),HANDLER port

Volume and weight

Volume(W*H*D):310mm*110mm*315mm;Weight:8kg

4. Application Scenarios of LS6586 Series Capacitor IR Meter

4.1 Capacitor Production Line Testing

In the capacitor production process, the LS6586 series is widely used for online testing of leakage current and insulation resistance. It can be integrated into the automated production line through the Handler port and other interfaces to realize rapid batch testing of capacitors. The fast test speed (up to 30 times per second in fast mode) ensures high production efficiency, while the high measurement accuracy ensures the quality of the products. For example, in the production of electrolytic capacitors, by setting appropriate test voltages and charging times, the instrument can effectively detect capacitors with defective dielectric materials or improper manufacturing processes, reducing the occurrence of defective products.

4.2 Quality Control and Laboratory Testing

In quality control departments and laboratories, the LS6586 series serves as an essential testing tool. It can provide accurate test data for incoming material inspection, process inspection, and final product inspection. Engineers can use it to conduct in – depth analysis of capacitor performance, such as studying the impact of different temperatures, humidity levels, and voltages on leakage current and insulation resistance. The instrument’s data storage and processing functions facilitate the compilation of test reports and the tracking of quality trends, providing a solid foundation for quality improvement.

4.3 Research and Development of New Capacitors

In the research and development of new capacitors, the Capacitor IR Meter is crucial for evaluating the performance of new materials and new structures. Researchers can use the LS6586 series to measure the leakage current and insulation resistance of prototype capacitors under various test conditions, providing data support for optimizing the design of capacitors. For instance, when developing high – temperature – resistant capacitors, testing the leakage current at elevated temperatures can help determine the suitability of the dielectric material for high – temperature environments.

4.4 Maintenance and Fault Diagnosis of Electronic Equipment

In the maintenance of electronic equipment, the LS6586 series can be used to detect faulty capacitors. By measuring the leakage current and insulation resistance of capacitors in the equipment, technicians can quickly identify capacitors with degraded performance or faults, such as increased leakage current or reduced insulation resistance, and replace them in a timely manner to restore the normal operation of the equipment.

5. Advantages of LS6586 Series in Capacitor Testing

5.1 Improved Testing Efficiency

The automated test functions and fast test speed of the LS6586 series significantly reduce the testing time. Compared with traditional manual testing methods, which may take several minutes to test a single capacitor, the fast mode of the LS6586 series can complete multiple tests per second, making it highly suitable for large – scale production testing. In addition, the automatic range switching function (5 ranges: 20mA, 2mA, 200μA, 20μA, 2μA) eliminates the need for manual range adjustment, further improving testing efficiency.

5.2 Enhanced Measurement Accuracy

The high measurement accuracy of the instrument ensures the reliability of the test results. The leakage current measurement accuracy of 1%±0.05μA and the voltage accuracy of 0.5% of the set value ±0.2V
enable it to detect subtle changes in capacitor performance, which is crucial for high – quality requirements in industries such as aerospace and medical electronics.

5.3 Strong Adaptability

With a wide range of test voltages (1 – 500V/800V) and measurement ranges, the LS6586 series can meet the testing needs of various types of capacitors, including different capacitance values, voltage ratings, and dielectric materials. The adjustable charging time (0 – 999s) allows for testing capacitors with different charging characteristics, ensuring the accuracy of the test results.

5.4 Convenient Data Management and System Integration

The data storage and interface functions of the instrument facilitate the integration of testing into the overall production and quality management system. Test data can be transmitted to a computer for analysis and archiving through RS232 or USB interfaces, realizing the traceability of quality data. The support for SCPI instructions and the Handler port enables seamless connection with automated testing systems and industrial robots, forming a complete automated testing solution.

6. Challenges and Future Developments in Capacitor Testing

6.1 Current Challenges

Miniaturization and High – Density Integration of Capacitors: As electronic devices become more miniaturized, capacitors are also developing towards smaller sizes and higher integration. This poses higher requirements for the spatial resolution and accuracy of testing instruments, as traditional testing methods may struggle to accurately measure the leakage current of ultra – small capacitors.
Testing under Complex Environmental Conditions: In some application scenarios, capacitors need to work under extreme environmental conditions such as high temperatures, high humidity, or strong electromagnetic interference. Developing testing instruments that can simulate these complex environments and accurately measure capacitor performance is a current challenge.
Big Data and Intelligent Analysis of Test Data: With the increasing scale of production, the amount of test data generated is also growing rapidly. How to effectively manage and analyze these large amounts of data to extract valuable information for quality improvement and process optimization is a problem that needs to be addressed.

6.2 Future Development Trends

• Intelligentization and Automation: Future Capacitor IR Meters will be more intelligent, with built – in artificial intelligence algorithms to automatically analyze test data, predict capacitor lifespan, and provide maintenance suggestions. At the same time, the degree of automation will be further improved, realizing fully automated testing from sample loading to result judgment.
• Multi – Parameter and Comprehensive Testing: In addition to leakage current and insulation resistance, future testing instruments may integrate more test parameters, such as capacitance, dissipation factor, and equivalent series resistance (ESR), to provide a more comprehensive evaluation of capacitor performance.
• Portability and On – Site Testing: With the development of portable electronic devices and the needs of on – site maintenance, portable Capacitor IR Meters with compact size, low power consumption, and high performance will become an important development direction, enabling technicians to conduct testing anywhere, anytime.
• Green and Energy – Saving: In response to the global trend of energy conservation and environmental protection, the design of testing instruments will focus more on energy – saving technologies, such as low – power circuits and energy – saving operation modes, to reduce energy consumption and environmental impact.

7. Conclusion

The Capacitor IR Meter, represented by the LISUN LS6586 Series Capacitor Leakage Current Tester, plays a vital role in capacitor leakage current and insulation resistance testing. Its high precision, wide measurement range, flexible interfaces, and strong automation capability make it an ideal choice for various testing scenarios in the electronics industry. By accurately measuring these key parameters, the instrument helps ensure the quality and reliability of capacitors, promotes the development of high – performance electronic products, and contributes to the advancement of the electronics industry.

As technology continues to evolve, the Capacitor IR Meter will continue to develop in the direction of intelligence, multi – functionality, and portability to meet the ever – changing testing needs. Professionals in the industry should pay close attention to the latest technological developments and make rational use of advanced testing instruments to improve product quality and technological innovation capabilities.
