In – Depth Analysis of LCR Meter with DC Bias Current Source: Unveiling the LISUN LS1373X

Abstract
This paper focuses on the LCR Meter with DC Bias Current Source, an essential instrument for the precise measurement of electronic components’ electrical characteristics under complex conditions. The LISUN LS1373X LCR Meter with DC Bias Current Source, as a representative product, is comprehensively analyzed. Through detailed introduction of its technical specifications, functional features, measurement principles, application scenarios, and comparative advantages, combined with tabular data, this article demonstrates how this instrument meets the high – precision testing requirements of modern electronic component manufacturing and research. It highlights the importance of the LCR Meter with DC Bias Current Source in accurately evaluating the performance of components such as inductors, capacitors, and resistors when affected by DC bias, which is crucial for ensuring the reliability and stability of electronic systems.

1. Introduction

1.1 Significance of LCR Meters with DC Bias Current Source

In the field of electronics, accurate measurement of inductance (L), capacitance (C), and resistance (R) is fundamental for component characterization, circuit design, and quality control. The LCR Meter with DC Bias Current Source goes beyond traditional LCR meters by incorporating a DC bias current source. This feature allows for the measurement of components’ parameters under the influence of a DC bias, which is a common operating condition in many electronic circuits, such as power supplies, filters, and magnetic components.

Components’ electrical characteristics can change significantly when subjected to DC bias. For example, the inductance value of a magnetic – core inductor may decrease as the DC bias current increases due to magnetic saturation. By using an LCR Meter with DC Bias Current Source, engineers and researchers can obtain more realistic and accurate parameter values, enabling them to design more reliable and efficient electronic products.

1.2 Overview of the LISUN LS1373X

The LISUN LS1373X LCR Meter with DC Bias Current Source is a high – performance testing instrument developed by LISUN Group. It combines advanced measurement technology with user – friendly operation, making it suitable for a wide range of applications from research and development to industrial production. The instrument integrates an LCR meter and a DC bias current source, providing a comprehensive solution for component testing under DC bias conditions.

2. Technical Specifications of the LISUN LS1373X LCR Meter with DC Bias Current Source

2.1 LCR Measurement Specifications

The LCR measurement function of the LS1373X is designed to achieve high – precision parameter measurement. The following table (Table 1) summarizes the key LCR measurement specifications:

2.2 DC Bias Current Source Specifications

The DC bias current source in the LS1373X provides a stable and adjustable DC bias for component testing. Table 2 shows the detailed specifications of the DC bias current source:

The wide range of DC bias current and voltage allows the LS1373X to test various components under different bias conditions, meeting the diverse needs of electronic component testing.

2.3 Other Technical Specifications

In addition to LCR measurement and DC bias source specifications, the LS1373X also has the following important technical features, as shown in Table 3:

3. Functional Features of the LISUN LS1373X

3.1 Precise LCR Measurement

The LS1373X uses advanced measurement algorithms and high – precision components to ensure accurate LCR parameter measurement. Its wide test frequency range from 20 Hz to 100 kHz enables the characterization of components’ frequency – dependent behavior. For example, when testing capacitors, the instrument can accurately measure the capacitance value and the dissipation factor at different frequencies, which is crucial for understanding the performance of capacitors in AC circuits.

3.2 Stable DC Bias Current Source

The integrated DC bias current source can provide a stable and continuous DC bias to the tested component. The high – resolution adjustment of the DC bias current and voltage (0.1 mA for current and 0.1 V for voltage) allows for fine – tuning of the bias conditions. This stability is essential for obtaining repeatable and reliable measurement results, especially when testing components that are sensitive to DC bias changes, such as inductors with magnetic cores.

3.3 Multiple Measurement Modes

The instrument supports multiple measurement modes, including series mode, parallel mode, and automatic mode. In series mode, the measured impedance is considered as a series combination of resistance and reactance, which is suitable for components with a dominant resistive or inductive behavior. Parallel mode is used when the component’s behavior is more like a parallel combination of resistance and reactance, often applicable to capacitors. The automatic mode can intelligently select the appropriate measurement mode based on the component under test, simplifying the operation process for users.

3.4 Data Management and Interface Functions

The LS1373X is equipped with a variety of interfaces for data transfer and communication. The USB and LAN interfaces enable easy connection to a computer, allowing users to transfer measurement data, set up instrument parameters, and perform remote control. The Handler Interface supports connection to automatic test handlers, facilitating high – volume production testing. The 7 – inch color touch – screen LCD provides an intuitive and user – friendly interface for data display, parameter setting, and operation.

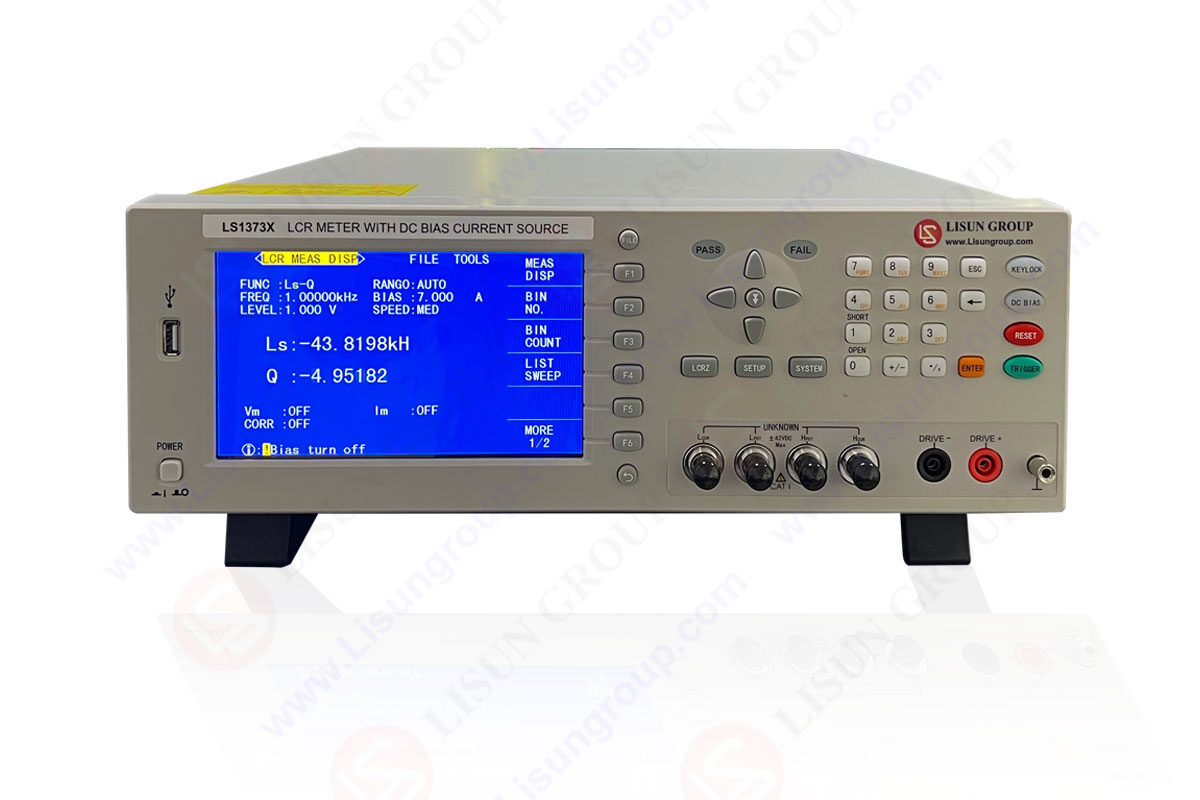

LS1373 LCR Meter with DC Bias Current Source

4. Measurement Principles

4.1 LCR Measurement Principle

The LCR measurement in the LS1373X is based on the vector impedance measurement method. A test signal with a specific frequency and amplitude is applied to the component under test. By measuring the voltage and current signals across the component, the instrument calculates the impedance vector. Then, through mathematical operations, parameters such as inductance, capacitance, resistance, impedance, admittance, dissipation factor, and quality factor can be obtained.

For example, to measure the inductance of an inductor, the test signal generates a magnetic field in the inductor, and the induced electromotive force is related to the inductance value. By analyzing the relationship between the applied voltage, current, and the phase difference between them, the inductance can be accurately calculated.

4.2 DC Bias Current Source Principle

The DC bias current source in the LS1373X uses a high – stability power supply circuit. It can adjust the output DC current and voltage according to user – set values. The control circuit continuously monitors the output current and voltage, and through feedback control, it ensures that the actual output values match the set values within the specified accuracy range. This principle ensures that the DC bias can be precisely applied to the component during the measurement process without interfering with the LCR measurement signal.

5. Application Scenarios

5.1 Inductor Testing

Inductors are widely used in power supplies, filters, and radio – frequency circuits. When inductors are used in power supply circuits, they often work under the influence of DC bias current. The LS1373X can accurately measure the inductance value of inductors at different DC bias currents, helping engineers to evaluate the inductor’s performance under actual operating conditions. For example, in a switching power supply, the magnetic core of the inductor may saturate under high DC bias current, reducing the inductance value. By using the LS1373X, designers can select the appropriate inductor and optimize the circuit design to avoid saturation problems.

5.2 Capacitor Testing

Capacitors also need to be tested under various conditions. The LS1373X can measure the capacitance, dissipation factor, and other parameters of capacitors at different frequencies and DC bias voltages. In high – voltage capacitor applications, such as power factor correction circuits, the performance of capacitors may change with the applied DC bias voltage. The instrument can provide accurate parameter values, enabling manufacturers to ensure the quality and reliability of capacitors.

5.3 Research and Development

In the research and development of new electronic components and materials, the LS1373X is an important tool. Researchers can use it to study the electrical characteristics of new materials under different DC bias and frequency conditions, which helps in the development of high – performance components. For example, in the research of new magnetic materials for inductors, the instrument can measure the inductance and magnetic properties of the materials under various DC bias currents, providing valuable data for material optimization.

5.4 Industrial Production Quality Control

In industrial production, the LS1373X is used for mass – production testing of electronic components. Its high – speed measurement function (up to 15 times/second in fast mode) and automatic test capabilities (through the Handler Interface) can significantly improve the testing efficiency. The accurate measurement results ensure that only qualified components are used in the production process, reducing the failure rate of electronic products and improving production quality.

6. Comparative Advantages of the LISUN LS1373X

6.1 High Precision and Wide Measurement Range

Compared with some traditional LCR meters with DC bias, the LS1373X offers higher measurement accuracy (±0.05% for LCR parameters) and a wider measurement range. For example, in terms of inductance measurement, it can measure from as low as 0.0001 μH to as high as 9999 H, covering a wide variety of inductor types. This wide range and high precision make it more adaptable to different types of components and measurement requirements.

6.2 User – friendly Operation and Interface

The 7 – inch color touch – screen LCD of the LS1373X provides a more intuitive and convenient operation interface compared to instruments with traditional button – based interfaces. The touch – screen operation allows users to quickly set parameters, select measurement modes, and view measurement results. In addition, the instrument’s menu design is well – organized, making it easy for both novice and experienced users to operate.

6.3 Comprehensive Interface and Data Management

The LS1373X has a more comprehensive set of interfaces, including USB Host, USB Device, RS232, LAN, and Handler Interface. This rich interface combination enables seamless integration with different devices and systems, such as computers, automatic test handlers, and data management software. It provides more flexibility for data transfer, remote control, and automated testing, which is not always available in competing products.

7. Challenges and Future Trends

7.1 Challenges

One of the main challenges in the development of LCR Meters with DC Bias Current Source is to further improve the measurement accuracy and stability in complex electromagnetic environments. As electronic devices become more miniaturized and integrated, the electromagnetic interference around the measurement instruments may affect the measurement results. Another challenge is to reduce the size and power consumption of the instruments while maintaining high – performance features, making them more suitable for portable and on – site testing applications.

7.2 Future Trends

In the future, LCR Meters with DC Bias Current Source are likely to incorporate more advanced technologies, such as artificial intelligence and machine learning algorithms. These technologies can be used to optimize measurement algorithms, automatically identify component types, and predict component failures based on historical measurement data. In addition, with the development of the Internet of Things (IoT), these instruments may be more closely integrated with the IoT ecosystem, enabling remote monitoring, data sharing, and collaborative testing across different locations.

8. Conclusion
The LCR Meter with DC Bias Current Source, especially the LISUN LS1373X, plays a vital role in the field of electronic component testing. Its high – precision LCR measurement, stable DC bias current source, multiple functional features, and wide application scenarios make it an ideal choice for both research and industrial production. By providing accurate parameter values of components under DC bias conditions, it helps ensure the reliability and performance of electronic systems. As the electronics industry continues to develop, the demand for such advanced testing instruments will continue to grow, and the LS1373X is well – positioned to meet these evolving needs.
