The rapid evolution of LED lighting technology has revolutionized the lighting industry, making LED luminaires the preferred choice for residential, commercial, and industrial applications due to their high efficiency, energy conservation, and extended lifespan.
However, one persistent challenge in LED lighting is flicker, a phenomenon that significantly impacts the quality of LED luminaires and user experience. Flicker in LED lighting can lead to visual fatigue, headaches, and, in severe cases, neurological issues, making the LED flicker test a critical aspect of quality assurance. The LPCE-2 (LMS-9000) LED CCD Rapid Photometric and Electrical Comprehensive Testing System, developed by LISUN, is a state-of-the-art, high-precision testing instrument designed to address the complexities of LED flicker testing. This article provides an in-depth exploration of the technical features, testing principles, application scenarios, and broader industry impact of the LPCE-2 (LMS-9000) system in the context of LED flicker testing.

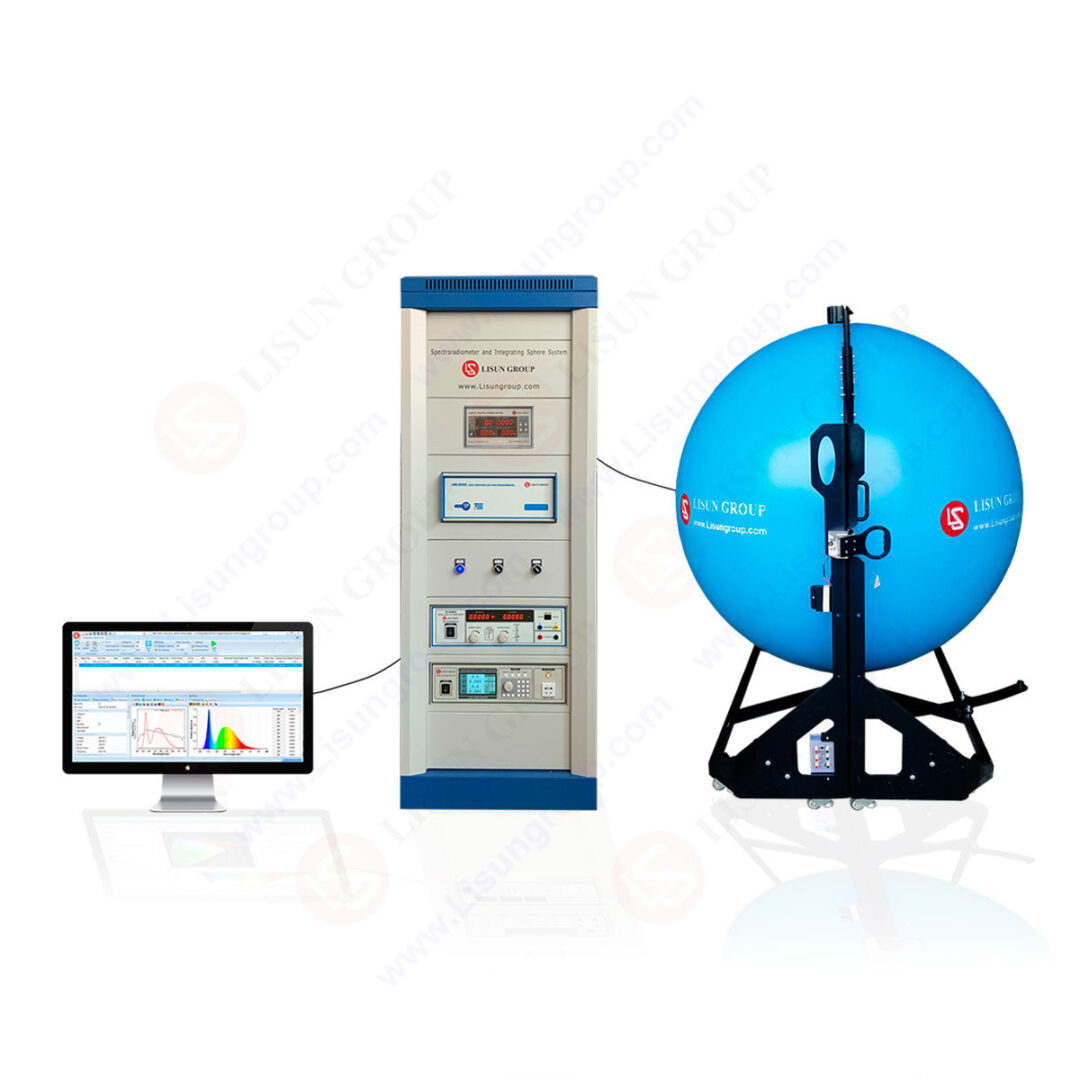

LPCE-2(LMS-9000)High Precision Spectroradiometer Integrated Sphere System
LED flicker refers to the rapid, periodic fluctuations in light output intensity from an LED light source, resulting in a perceptible or imperceptible flickering effect. This phenomenon is primarily caused by the design of the power driver, dimming techniques, or inherent circuit characteristics. Flicker in LED luminaires can be classified into two main categories: visible flicker, occurring at frequencies below 100 Hz, which is noticeable to the human eye, and invisible flicker, occurring at frequencies above 100 Hz, which, while not directly visible, can still cause significant health issues over time. Prolonged exposure to invisible flicker may lead to visual discomfort, reduced concentration, headaches, and even neurological problems, underscoring the importance of conducting thorough LED flicker tests.
The adverse effects of flicker have prompted the development of international standards to regulate and measure it. Standards such as IEC-Pst, Energy Star V2.1, CIE SVM (Stroboscopic Visibility Measure), and IEEE Std 1789 outline specific requirements for LED flicker testing. These standards mandate the precise measurement of critical parameters, including light output fluctuation, flicker percentage, flicker index, short-term flicker indicator (Pst), and stroboscopic visibility measure (SVM). The flicker percentage represents the ratio of the difference between maximum and minimum light output to the average output, while the flicker index quantifies the periodic intensity of light fluctuations. Pst and SVM, in particular, are essential for evaluating the perceptual impact of flicker, both visible and invisible, on human vision. Accurate measurement of these parameters during an LED flicker test is vital for ensuring the quality and safety of LED luminaires.
The challenge lies in the need for high-precision equipment capable of capturing rapid light output changes and analyzing complex flicker patterns. The LISUN LPCE-2 (LMS-9000) system addresses this challenge by offering advanced capabilities for LED flicker testing, ensuring compliance with international standards and providing reliable data for manufacturers, researchers, and certification bodies.
The LISUN LPCE-2 (LMS-9000) is a high-precision spectroradiometer and integrating sphere system specifically designed for testing the photometric, colorimetric, and electrical parameters of LEDs and other light sources. It integrates cutting-edge components, including the LMS-9000B or LMS-9000C high-precision CCD spectroradiometer, an integrating sphere, a digital electrical parameter meter, an AC variable frequency power supply, and a standard light source. The system is engineered to meet stringent international standards, such as CIE-127, IES LM-79-19, LM-80, and EU ErP Regulation (EU) 2019/2020, making it a versatile tool for LED flicker testing. Below are the key technical features that make the LPCE-2 (LMS-9000) an industry leader in LED flicker testing:
• High-Precision CCD Spectroradiometer
The LMS-9000C spectroradiometer, a core component of the LPCE-2 system, utilizes advanced holographic gratings and a precision optical system, combined with electronic shutter technology. This configuration enables testing speeds at the millisecond level, with a wavelength accuracy of ±0.3 nm and wavelength repeatability of ±0.1 nm. These specifications are critical for LED flicker testing, as they allow the system to capture instantaneous changes in light output with exceptional precision. The high sensitivity and rapid response of the spectroradiometer ensure that even subtle fluctuations in light intensity, which are characteristic of high-frequency flicker, are accurately recorded during an LED flicker test.
• Fast Photometric Probe with High Sampling Rate
The LPCE-2 system is equipped with the LSRF-3 light source start-up, rise-time, and flicker test system, which includes a Class A fast photometric probe capable of achieving a sampling rate of up to 100 kHz. This high sampling rate is essential for LED flicker testing, as it enables the system to record rapid temporal changes in luminous flux. For high-frequency invisible flicker, which is particularly challenging to measure due to its rapid oscillations, the LSRF-3 probe ensures that the system can capture and analyze the full spectrum of flicker characteristics, providing comprehensive data for evaluating LED performance.
• Stray Light Control and High Dynamic Range
Stray light, which can distort measurement results, is a significant concern in LED flicker testing. The LMS-9000C employs advanced bandpass filter wheel calibration technology and improved NIST stray light correction techniques to minimize stray light to less than 0.015% at 600 nm and less than 0.03% at 435 nm. This low stray light level, combined with a high dynamic range, ensures the accuracy and stability of test results, even in complex lighting environments. For LED flicker tests conducted in real-world conditions, where ambient light or reflections may interfere, this feature is crucial for maintaining data integrity.
• Comprehensive Testing Capabilities
Beyond flicker-related parameters, the LPCE-2 (LMS-9000) system offers a holistic approach to LED testing. It can simultaneously measure luminous flux, colorimetric parameters (such as chromaticity coordinates, correlated color temperature, and color rendering index), electrical parameters (including voltage, current, and power factor), and lumen maintenance. This comprehensive testing capability makes the system an all-in-one solution for evaluating the overall performance of LED luminaires, with LED flicker testing being a key component of its functionality. Manufacturers can use the system to assess not only flicker but also the overall quality and efficiency of their products.
• Compliance with International Standards
The LPCE-2 system is fully compliant with a wide range of international standards, including BASIC, Energy Star V2.1, IEC-Pst, CA CEC, ASSIST, CIE SVM, and IEEE Std 1789. This ensures that the results of LED flicker tests conducted with the system are globally recognized, enabling manufacturers to certify their products for international markets. Compliance with these standards is particularly important for addressing the diverse regulatory requirements of regions such as North America, Europe, and Asia.
The LPCE-2 (LMS-9000) employs a sophisticated combination of hardware and software to conduct precise LED flicker tests. The testing process involves several key steps, each designed to ensure accurate measurement and analysis of flicker characteristics:
• Light Signal Acquisition
The system uses the LMS-9000C spectroradiometer and the LSRF-3 photometric probe to capture the light output signals of the LED source. The high sampling rate of 100 kHz allows the system to record rapid changes in luminous flux, which is essential for analyzing both low-frequency visible flicker and high-frequency invisible flicker. The precision of the spectroradiometer ensures that even minor variations in light output are detected, providing a robust dataset for LED flicker testing.
• Data Processing and Analysis
The collected light signals are processed in real-time by the system’s proprietary software, which calculates critical flicker parameters, including:
• Flicker Percentage: The ratio of the difference between the maximum and minimum light output to the average light output, expressed as a percentage.
• Flicker Index: A measure of the periodic intensity of light output fluctuations, indicating the severity of flicker.
• Short-Term Flicker Indicator (Pst): Based on IEC TR 61547-1:2020, Pst quantifies the perception of flicker over short time periods, providing insight into its immediate impact on users.
• Stroboscopic Visibility Measure (SVM): Defined by CIE SVM standards, SVM assesses the potential impact of invisible flicker on the human eye, particularly in dynamic lighting environments.
The system’s software generates real-time luminous flux variation curves, allowing users to visualize and analyze flicker patterns. These curves are particularly useful for identifying the frequency and amplitude of flicker, enabling manufacturers to pinpoint and address issues in driver design or dimming mechanisms during LED flicker testing.
• Environmental Control
Environmental factors, such as temperature, can significantly affect the accuracy of LED flicker tests. The LPCE-2 system includes a constant-temperature integrating sphere (e.g., IS-1.5MT) and a multi-channel temperature monitoring instrument (TMP-8) to maintain a stable testing environment. By monitoring and controlling the temperature inside and outside the integrating sphere, the system minimizes temperature-induced variations in light output, ensuring reliable and repeatable LED flicker test results.
• Standard Calibration
To ensure traceability and accuracy, the LPCE-2 system uses standard light sources (SLS-50W and SLS-10W) for calibration. These standard sources are traceable to NIST standards, providing a high level of confidence in the system’s measurements. Calibration is a critical step in LED flicker testing, as it ensures that the system’s results are consistent and comparable across different testing scenarios.
The versatility of the LPCE-2 (LMS-9000) system makes it suitable for a wide range of applications in LED flicker testing, spanning research, production, and certification. Below are some key scenarios where the system excels:
• Quality Control in LED Luminaire Production
In LED manufacturing, quality control is paramount to ensure that products meet regulatory and performance standards. The LPCE-2 system enables rapid and accurate LED flicker testing on production lines, allowing manufacturers to evaluate the flicker performance of LED bulbs, streetlights, and tubes. For example, the system can measure Pst and SVM values to ensure compliance with EU ErP Regulation (EU) 2019/2020 and Energy Star V2.1. By identifying flicker issues early in the production process, manufacturers can optimize driver circuits and dimming technologies to produce low-flicker LED luminaires, enhancing product quality and market competitiveness.
• Laboratory Research
Research institutions rely on the LPCE-2 system for in-depth studies of LED light source performance. The system’s high precision and fast testing capabilities make it ideal for analyzing the impact of different driving methods, such as pulse-width modulation (PWM) dimming or constant current drive, on flicker characteristics. Researchers can use the system to conduct controlled experiments, generating detailed data on flicker percentage, flicker index, Pst, and SVM. These insights are invaluable for developing new LED technologies and improving existing designs, with LED flicker testing playing a central role in these efforts.
• Third-Party Certification Testing
Third-party testing agencies use the LPCE-2 (LMS-9500C scientific-grade configuration) to conduct certification testing for LED luminaires. The system generates comprehensive test reports that comply with standards such as IES LM-79-19 and LM-80, facilitating the certification process for manufacturers seeking to enter international markets. The accuracy and reliability of the system’s LED flicker test results make it a trusted tool for certification bodies, ensuring that LED products meet stringent regulatory requirements.
• Automotive Lighting Testing
In the automotive industry, LED flicker testing is critical for ensuring the safety and performance of LED-based signal lights and headlights. The LPCE-2 system can evaluate the flicker performance of these lighting systems, ensuring compliance with CIE A-α standards. By minimizing flicker in automotive lighting, the system helps enhance driver safety and comfort, reducing the risk of visual distractions caused by flickering lights.
The LISUN LPCE-2 (LMS-9000) system has had a transformative impact on the LED flicker testing industry, offering several key benefits:
• Enhanced Testing Efficiency and Accuracy
The system’s high sampling rate, low stray light design, and advanced data processing capabilities significantly improve the efficiency and accuracy of LED flicker testing. By reducing testing time and providing precise measurements, the system enables manufacturers to streamline their quality control processes, saving both time and resources.
• Promotion of Industry Standardization
By supporting a wide range of international standards, the LPCE-2 system facilitates the standardization of LED flicker testing practices. This ensures that manufacturers can produce LED luminaires that meet the diverse regulatory requirements of global markets, enhancing their competitiveness and market access.
• Improved User Experience
The ability to accurately identify and mitigate flicker issues allows manufacturers to produce low-flicker LED luminaires, improving visual comfort and protecting user health. This is particularly important in applications such as office lighting, where prolonged exposure to flicker can negatively impact productivity and well-being.
• Support for Technological Innovation
The comprehensive data generated by the LPCE-2 system provides valuable insights for improving LED driver designs and dimming technologies. By enabling manufacturers to address flicker issues at the design stage, the system supports the development of innovative, high-performance LED lighting solutions.
The LISUN LPCE-2 (LMS-9000) LED CCD Rapid Photometric and Electrical Comprehensive Testing System is a game-changer in LED flicker testing, offering unmatched precision, speed, and versatility. Its high-precision spectroradiometer, high-sampling-rate photometric probe, and low stray light design enable accurate measurement of critical flicker parameters, ensuring compliance with international standards such as IEC-Pst, CIE SVM, and IEEE Std 1789. By providing robust technical support for LED luminaire development, production, and quality control, the system plays a pivotal role in improving the quality and safety of LED lighting products. Furthermore, its contributions to industry standardization, user experience enhancement, and technological innovation make it an indispensable tool in the LED lighting industry. As LED technology continues to advance, the LPCE-2 (LMS-9000) is well-positioned to drive further progress in LED flicker testing and beyond.
