Evaluating Material and Protective Layer Resistance to Sulfur Dioxide Corrosion Using the Sulphur Dioxide Test Chambers SO2 Corrosion Test Chamber

Abstract:

Sulfur dioxide (SO2) corrosion is one of the significant environmental factors affecting materials, especially in industries such as construction, electronics, and aerospace. To effectively evaluate the ability of materials and their protective layers to resist SO2 corrosion, specialized equipment such as the Sulphur Dioxide Test Chamber, specifically the LISUN SQ-010 Sulfur Dioxide Test Chamber, is utilized. This article explores the purpose and function of these chambers, their role in assessing material resistance to corrosion, and how they can be used to simulate real-world environmental conditions. It will also include detailed data and observations from SO2 corrosion tests using the LISUN SQ-010 model.

Introduction:

Sulfur dioxide (SO2) is a common atmospheric pollutant resulting from the combustion of fossil fuels, particularly in industrial areas. Exposure to SO2 can lead to severe material degradation, particularly in metals, polymers, and coatings. To ensure the durability and longevity of materials used in various applications, it is crucial to test their resistance to SO2 corrosion.

The Sulphur Dioxide Test Chambers, such as the LISUN SQ-010 Sulfur Dioxide Test Chamber, play a critical role in this evaluation process. These chambers simulate the corrosive effects of SO2 in controlled laboratory conditions, helping manufacturers and researchers assess the performance of materials and protective layers in real-world environments. This article aims to discuss the mechanisms behind SO2 corrosion, the test methods employed, and how the LISUN SQ-010 can be used for accurate and reproducible results.

Mechanisms of SO2 Corrosion:

Sulfur dioxide is a highly reactive gas that, when absorbed by moisture, forms sulfurous acid (H2SO3). This acid can react with the surface of materials, leading to corrosion. The primary mechanisms of SO2-induced corrosion include:

• Oxidation Reaction: SO2 can undergo oxidation to form sulfur trioxide (SO3), which can then react with water to produce sulfuric acid (H2SO4). This acid can corrode metallic surfaces and degrade coatings and polymers.
• Acidification of Surfaces: The formation of sulfuric acid can lead to the acidification of metal surfaces, which accelerates the corrosion process. For materials like steel, this can result in the formation of rust, leading to weakening and structural damage.
• Stress Corrosion Cracking: In some materials, especially high-strength alloys, the presence of SO2 can promote stress corrosion cracking, which can lead to sudden and catastrophic failure.
• Understanding these corrosion mechanisms is essential for designing materials and coatings that can withstand prolonged exposure to sulfur dioxide.

SO2 Corrosion Test Chamber Overview:

The Sulphur Dioxide Test Chambers, such as the LISUN SQ-010, are designed to simulate the corrosive effects of sulfur dioxide under controlled environmental conditions. These chambers provide precise temperature, humidity, and gas concentration control, allowing for the replication of various atmospheric conditions.

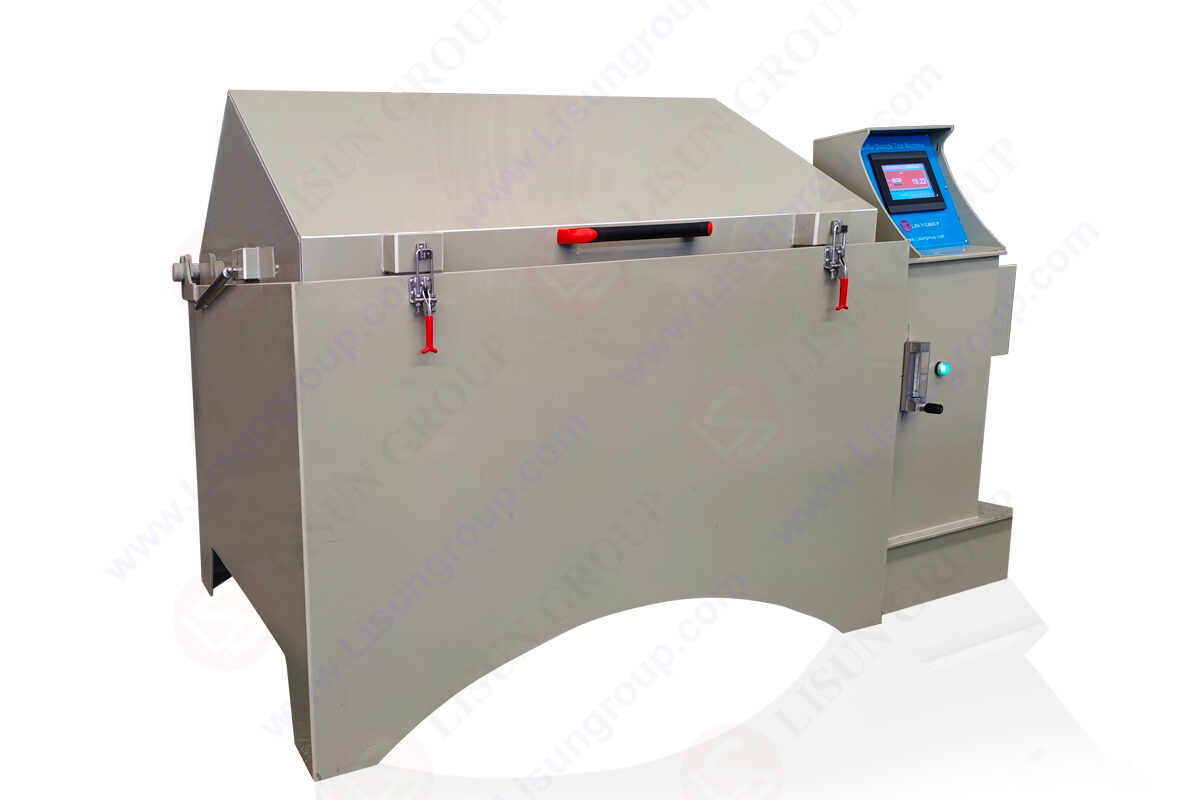

The LISUN SQ-010 Sulfur Dioxide Test Chamber is equipped with advanced features to meet the standards required for SO2 corrosion testing:

• Precise Temperature Control: The chamber provides temperature control ranging from 0°C to 70°C, ensuring that the material undergoes the same conditions as in real-world environments.
• Humidity Control: The humidity levels inside the chamber can be adjusted to replicate different environmental conditions, which is crucial since corrosion is influenced by both temperature and humidity.
• SO2 Concentration Control: The chamber allows for the precise adjustment of SO2 gas concentrations. This is critical in simulating the effects of varying pollution levels and in replicating the corrosion processes seen in different environmental scenarios.
• Monitoring and Data Logging: The chamber comes equipped with data logging systems that track exposure time, gas concentration, and environmental conditions. This feature ensures that accurate data can be gathered for analysis.

Testing Procedure Using the LISUN SQ-010:

To evaluate the resistance of materials and their protective layers to sulfur dioxide corrosion, the following general steps are followed:

• Sample Preparation: Materials or coated samples are prepared and mounted inside the chamber. These materials can include metals, coatings, polymers, and composite materials.
• Setting Environmental Parameters: The temperature, humidity, and SO2 concentration are set according to the requirements of the test. Typical conditions might include an SO2 concentration of 1-10 ppm, temperatures ranging from 25°C to 60°C, and humidity levels between 60% and 95%.
• Exposure Duration: The materials are exposed to the SO2-laden environment for a predefined period. This duration can range from a few hours to several days, depending on the specific test protocol and material type.
• Inspection and Analysis: After exposure, the samples are carefully examined for signs of corrosion, such as discoloration, surface pitting, cracking, or degradation of the protective coating. In addition to visual inspections, advanced techniques such as scanning electron microscopy (SEM) or energy-dispersive X-ray spectroscopy (EDX) may be used to analyze the corrosion products.

Example Data from LISUN SQ-010 Testing:

The following table shows hypothetical data from a sulfur dioxide corrosion test using the LISUN SQ-010 Sulfur Dioxide Test Chamber. The test was conducted on a coated steel sample exposed to varying concentrations of SO2.

SO2 Concentration (ppm)	Test Duration (hrs)	Temperature (°C)	Humidity (%)	Corrosion Rate (mm/year)	Observations
1	48	40	75	0.02	Slight discoloration, no visible rust
5	48	40	75	0.12	Surface pitting and coating damage
10	72	50	85	0.35	Significant rust formation, coating failure
10	168	60	90	0.5	Complete breakdown of protective layer, severe corrosion

This data demonstrates the relationship between SO2 concentration, exposure time, and the rate of corrosion. As the SO2 concentration and exposure time increase, the corrosion rate significantly rises, highlighting the importance of testing under controlled conditions.

Applications of SO2 Corrosion Testing:

• Material Selection: Engineers and manufacturers can use SO2 corrosion testing to select materials with optimal resistance to sulfur dioxide exposure. For example, materials for use in high-pollution environments such as urban construction, transportation, or marine applications require high corrosion resistance.
• Protective Coatings: Coatings play a vital role in protecting materials from SO2-induced corrosion. The test helps evaluate the effectiveness of various protective coatings and their longevity under different environmental conditions.
• Quality Control: SO2 corrosion tests serve as a quality control tool for manufacturers. By conducting tests in the LISUN SQ-010 chamber, manufacturers can ensure that their products meet the necessary standards for durability and corrosion resistance.
• Environmental Impact Studies: These chambers are also valuable in research and studies that explore the environmental impact of sulfur dioxide emissions. Understanding how SO2 affects different materials can lead to better strategies for mitigating pollution and improving material durability.

Conclusion:

Sulfur dioxide corrosion is a serious environmental issue that can degrade materials and structures, leading to costly repairs and replacements. Using the LISUN SQ-010 Sulfur Dioxide Test Chamber provides a controlled environment to evaluate the corrosion resistance of materials and protective layers. Through precise control of temperature, humidity, and SO2 concentration, the test chamber allows for realistic simulation of atmospheric conditions. The results from these tests are invaluable in material selection, coating development, and environmental research, ultimately contributing to the creation of more durable and sustainable products.
