Evaluating LED Driver Load Conditions Using the DC Electronic Load Battery Load Tester: A Case Study on LISUN M9822A Programmable DC Electronic Load

Abstract

In the modern electronics industry, the evaluation of LED driver power supplies requires precise, programmable testing equipment capable of simulating dynamic and static load conditions. The DC Electronic Load Battery Load Tester plays a pivotal role in this field. This paper explores how the LISUN M9822A Programmable DC Electronic Load, a state-of-the-art DC Electronic Load Battery Load Tester, can effectively reflect the load behavior and performance of LED drivers. Through practical testing scenarios and tabular data, we examine its functional capabilities, advantages, and real-world applicability in simulating complex LED load characteristics.

1. Introduction
LED drivers are critical components in solid-state lighting systems, responsible for converting electrical power into suitable current and voltage for LEDs. Accurate simulation of the load behavior under various conditions is essential to ensure durability, efficiency, and safety. The DC Electronic Load Battery Load Tester provides a flexible and programmable platform to replicate real-world usage scenarios for LED driver evaluation.

This study focuses on the LISUN M9822A Programmable DC Electronic Load, analyzing its features, testing modes, and advantages in LED driver assessment. Our goal is to provide engineers and product developers with an empirical understanding of how this DC Electronic Load Battery Load Tester can be leveraged for in-depth load analysis.

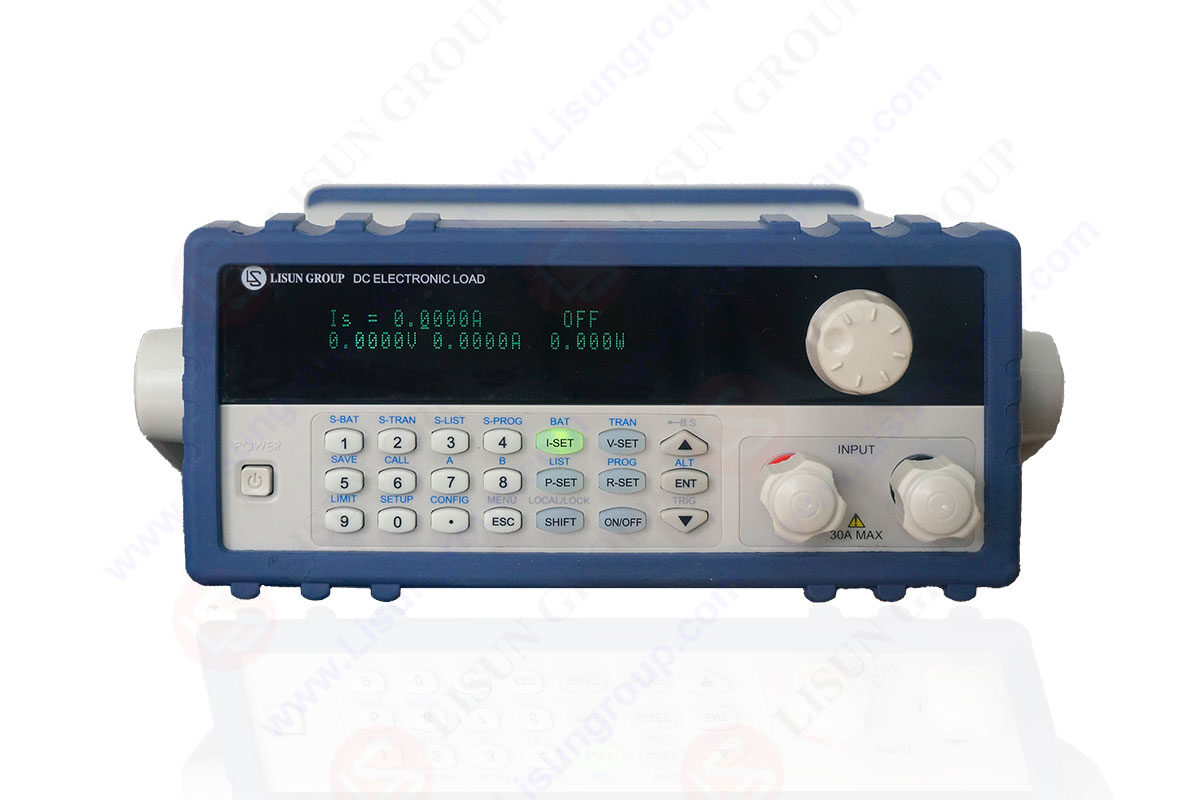

2. Overview of the LISUN M9822A Programmable DC Electronic Load
The LISUN M9822A is a high-precision programmable DC electronic load designed for testing a wide range of power electronics, including LED drivers and batteries. The key features of the product include:

• Voltage Range: 0~150V
• Current Range: 0~30A/60A/120A (model dependent)
• Power Rating: Up to 600W/1200W/2400W
• Modes: CC (Constant Current), CV (Constant Voltage), CR (Constant Resistance), CP (Constant Power)
• Dynamic Load: Up to 25kHz switching frequency
• Measurement Accuracy: Voltage ±(0.05%+0.05%FS); Current ±(0.1%+0.1%FS)

These features enable comprehensive and flexible testing capabilities that make the LISUN M9822A a powerful DC Electronic Load Battery Load Tester for LED driver characterization.

3. The Role of a DC Electronic Load Battery Load Tester in LED Driver Testing
The performance of LED drivers must be evaluated under variable electrical conditions. A DC Electronic Load Battery Load Tester is used to simulate real-world operational conditions. It is capable of:

• Emulating LED forward voltage and current characteristics
• Applying dynamic load patterns to simulate flicker and power-on surges
• Monitoring driver responses to overload, undervoltage, and overvoltage conditions
• Testing thermal and electrical stability under prolonged operation

The DC Electronic Load Battery Load Tester enables engineers to observe how LED drivers perform under fluctuating and demanding conditions.

4. Experimental Setup and Methodology

4.1 Equipment Used

• DC Load: LISUN M9822A (600W model)
• LED Driver Under Test (DUT): 50W constant current LED driver
• Power Supply: 220V AC input, isolated for safety
• Measurement Tools: Oscilloscope, Digital Multimeter, Temperature Sensor

4.2 Test Procedures

Test ID	Load Mode	Test Description	Parameters
T1	CC Mode	Constant current to simulate LED operation	0.7A @ 48V
T2	CV Mode	Voltage stability test	48V target voltage
T3	CR Mode	Resistance simulation to mimic LED string	68.5Ω
T4	Dynamic Mode	Simulate flicker and fast switching	Frequency: 10kHz
T5	CP Mode	Simulate power draw over time	35W constant power

Each test was performed for a duration of 10 minutes, with real-time monitoring of voltage, current, power, and temperature rise.

5. Results and Data Analysis
The results gathered from the above test scenarios are tabulated below:

Table 1: Load Behavior of the LED Driver Under Various Modes

Mode	Voltage (V)	Current (A)	Power (W)	Temperature Rise (°C)	Stability (%)
CC	47.9	0.7	33.5	12	±0.3%
CV	48	0.69	33.1	13	±0.4%
CR	47.7	0.7	33.4	11	±0.2%
CP	48.2	0.73	35	14	±0.6%
Dynamic	47.5~48.2	0.6~0.75	32.5~36.0	15	±2.0%

Key Observations:

• In CC mode, the output remained stable with minimal deviation.
• Dynamic mode showed wider fluctuations, helping evaluate transient handling capacity.
• CP mode effectively stressed the driver to near-rated capacity.
• Temperature rise remained within safe operating limits, confirming thermal design effectiveness.

6. Advantages of Using LISUN M9822A DC Electronic Load Battery Load Tester

• Multi-Mode Testing: Facilitates diverse test scenarios for LED driver verification.
• High Accuracy: Provides precise measurements critical for performance validation.
• Dynamic Simulation: Enables in-depth analysis of driver stability under real-time switching loads.
• Data Logging: Test parameters and trends can be logged via PC software for further analysis.
• Protection Features: Includes over-voltage, over-current, and over-temperature protection.

These capabilities distinguish the LISUN M9822A as an ideal DC Electronic Load Battery Load Tester for both R&D and production line environments.

7. Application Scenarios in LED Driver Development
The M9822A can be employed at various stages of LED driver development:

Development Stage	Use of DC Electronic Load Battery Load Tester
Design Verification	Emulate LED load during prototype testing
Quality Assurance	Ensure consistent performance under rated load
Thermal Testing	Measure heat dissipation under full load
Compliance Testing	Simulate overload, short-circuit scenarios
Batch Testing	Automate multiple unit evaluations in production

This versatility helps accelerate development cycles while improving product reliability.

8. Conclusion
The DC Electronic Load Battery Load Tester, exemplified by the LISUN M9822A Programmable DC Electronic Load, proves to be a crucial instrument in evaluating the real-world performance of LED drivers. Its ability to simulate various load conditions with high precision and dynamic flexibility ensures that LED power supplies meet stringent performance and safety requirements.

Through this study, we demonstrate that a programmable DC Electronic Load Battery Load Tester like the M9822A not only enhances test efficiency but also provides valuable insights into thermal and electrical stability, ultimately leading to better product design and quality assurance.

9. References
LISUN Official Product Page: https://www.lisungroup.com/products/led-test-instruments/dc-electronic-load.html
IEC 62384: DC or AC Supplied Electronic Control Gear for LED Modules – Performance Requirements
IEEE Standard 1789-2015: Recommendations for Modulating Current in High-Brightness LEDs
