Product No: DO160-S17
DO160-S17 Voltage Spike Pulse Generator is specifically designed for RTCA DO-160 Section 17 electromagnetic compatibility testing of airborne equipment. Equipped with a smart Android system, it supports remote control via Wi-Fi connection to a tablet or PAD. The output polarity is flexibly selectable, and it supports long-term stable continuous testing. The waveform fully complies with aviation standards and is widely used in civil aviation airborne electronic equipment, military aviation and helicopter electrical systems, and shipboard airborne systems. It is also suitable for voltage spike immunity testing in aviation EMC third-party certification laboratories, universities, and research institutes.
| LISUN Model | DO160-S17 | DO160-S17-50A | DO160-S17-100A |
| Coupling Method | Built-in coupling/decoupling network: Maximum 440V/16A |
External 10 μs coupling transformer: Maximum 440V/50A |
External 10 μs coupling transformer Maximum 440V/100A |
| Test Voltage | 5 V~1000 V (continuously adjustable) | ||
| Ascent Time | ≤2 μs | ||
| Pulse Width | >10 μs | ||
| Impedance | 50 Ω ± 10 % | ||
| Output Polarity | Positive, negative, alternating positive and negative | ||
| Triggering Method | Automatic | ||
| Pulse Frequency | Max 2 Hz | ||
| Output Port | 4mm plug | ||
| Control Method | Remote control via Wi-Fi connection to a tablet, with accompanying Android operating software in both Chinese and English. | ||
| Working Power Supply | 220~240V、50/60Hz | ||

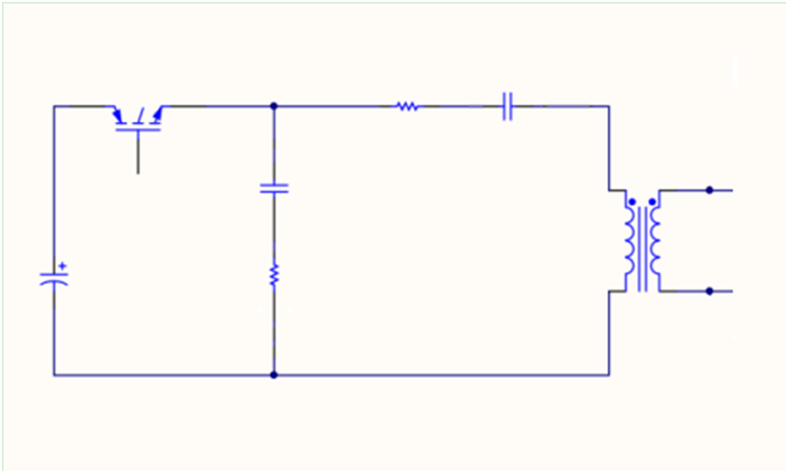

DO160-S17 Schematic Diagram

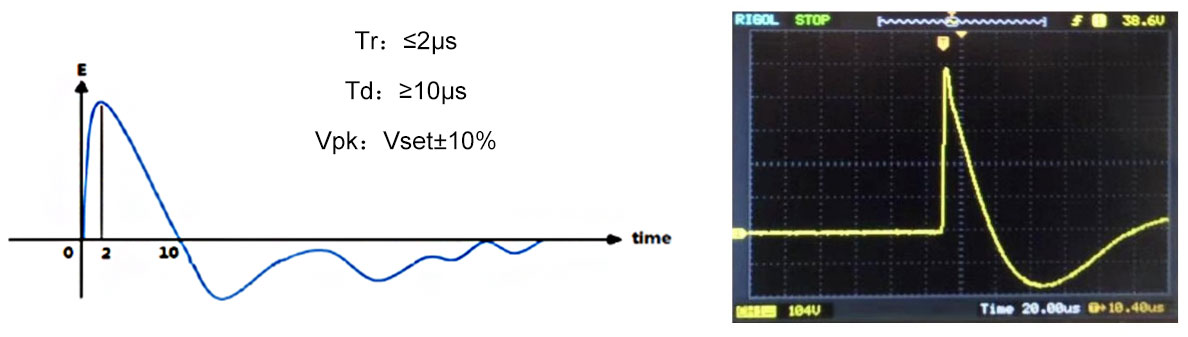

DO160-S17 standard waveform diagram and actual waveform diagram
