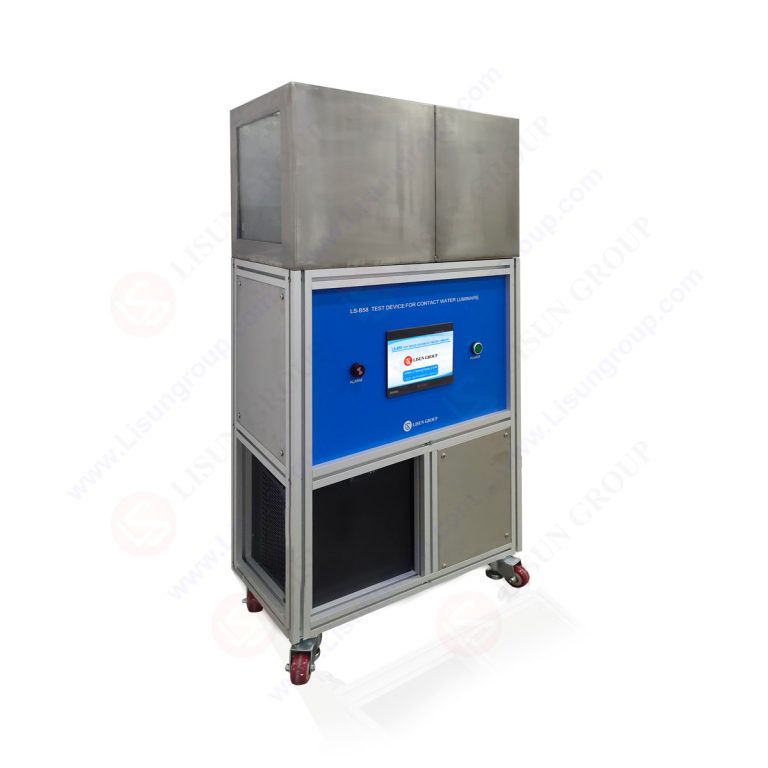

IEC 60598-2-18:2022 Clause 18.13 Figure 1 Test Device for Contact Water Luminaire

Product No: LS-B58

Leave a Message

=
  • Description
  • LS-B58 Test Device for Contact Water Luminaire fully complies with IEC 60598-2-18 Clause 18.13 Figure 1 (GB/T 7000.218-2023 Clause 13.3 Figure 1), and is an ideal test device for testing institutions and water contact lamp manufacturers. This test device is suitable for durability tests and thermal tests of swimming pool lamps that are in contact with water at the front. The machine cools the water temperature through the chiller through circulating water, and can also heat the water through the heater to increase the water temperature. The water temperature is controlled by PLC intelligent adjustment to the test water temperature.

    Specifications:

    Name

    Specifications

    Power Supply

    AC220~240V,50Hz/60Hz,1500W Max

    Control System

    7-inch color touch screen and PLC control

    Water Chiller

    Temperature control range ≤300 liters, refrigerant R134a, cooling capacity 600W, compressor power 1/3HP

    Heater

    220V,1kW,stainless steel heater

    Circulating Water Pump

    40W,220V

    Water Tank

    SUS304

    Liquid Level Control

    Liquid level sensor intelligent identification

    Temperature Monitoring

    1 channel

    Lighting Installation Plate

    Overall dimensions: 250*250,maximum opening φ200mm (default is the opening size of 36W lamps. Note: other sizes can be customized)

    Glass Observation Window

    Opposite the lamp installation position is the observation window

    Lighting Sand Filling Space

    Left and right direction ≥250mm

     Overall Dimensions

    L*W*H=670*370*1300mm

    IEC 60598-2-18:2022 Clause 18.13 Figure 1
