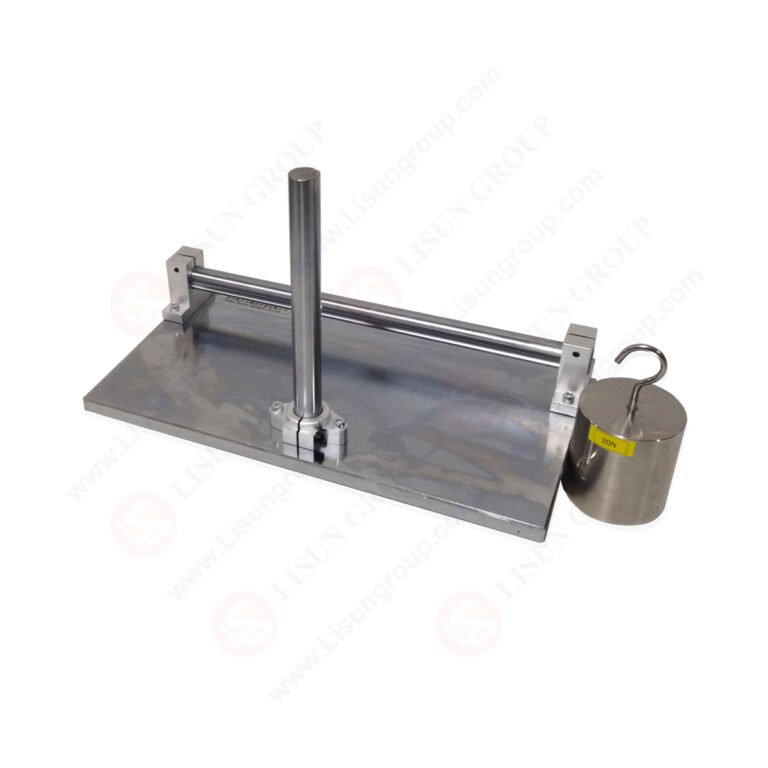

IEC 60598 Clause 4.14.1 Test E Clip-Mounted Luminaries Test Device

THJJ-1 Clip-Mounted Luminaries Test Device fully meet IEC 60598:2024 Clause 4.14.1 Test E(GB 7000.1-2023 Clause 4.14.1 Test E). Pull force test for clip-mounted luminaires.

Specification:
• Aluminum alloy frame capable of holding 6 glass panels and securing them in place.
• 10mm thick glass panels, dimensions: 300 x 300 mm, 6 pieces.
• 20mm diameter chrome-plated metal rod: 1 piece.
• Force application device capable of applying a 20N pulling force on the spring clips.

Standard:
IEC 60598 ((GB 7000.1) “Luminaires – Part 1: General requirements and tests” Clause 4.14.1 Test E

IEC 60598 Clause 4.14.1 Test E
