Product No: LS-B63
The 69kpa cylindrical weight and compression liner are made according to the requirements of Annex Y.4.4 and Figure Y.1 of IEC 62368-1:2023 and Figure 19.26.1 of Clause 19.26 of UL 1598:2008, and are used for compression testing of gaskets.
Specifications:
Cylindrical weight outer diameter | φ100 |
Cylindrical weight mass | 18kg |
Compressed liner external dimensions | Length 225mm*Width 50mm,Thickness not limited |
Compressed liner inner dimensions | Length 200mm*Length 25mm |
IEC 62368-1:2023 Annex Y.4.4

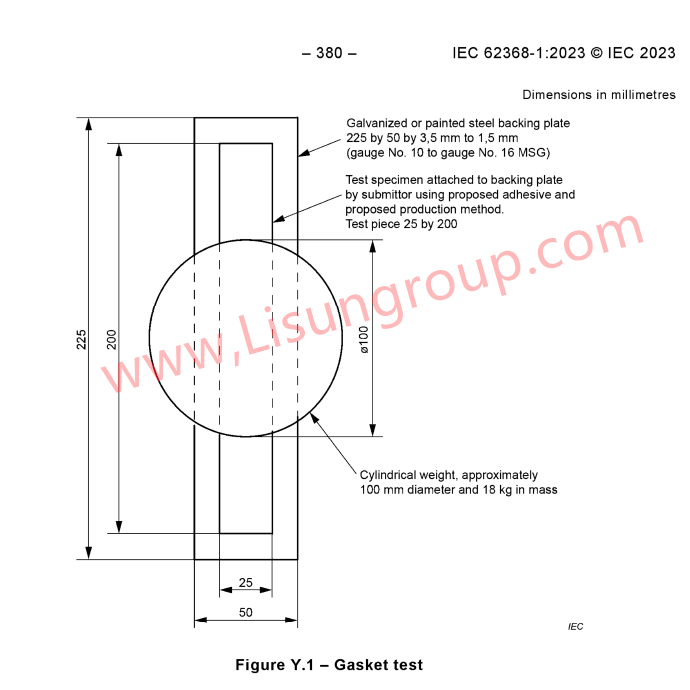

IEC 62368-1:2023 Figure Y.1
UL 1598:2008 Clause 19.26 and Figure 19.26.1
