A Comprehensive Guide to Measuring the Quality of Electronic Capacitors with LISUN LS6515EN Capacitor Meter

Abstract
Electronic capacitors are critical components in modern electronic systems, and their quality directly impacts the performance, reliability, and safety of devices ranging from consumer electronics to industrial machinery. Accurate measurement of capacitor parameters is essential for ensuring product quality during manufacturing, procurement inspection, and laboratory research. This paper introduces the LISUN LS6515EN Capacitor Meter, a high-precision instrument designed specifically for measuring the quality of electronic capacitors. It discusses the key parameters involved in capacitor quality assessment, the technical features of the LS6515EN, and its applications in different scenarios. Detailed comparative data and practical examples are provided to illustrate its effectiveness in ensuring capacitor quality.

1. Introduction

1.1 The Importance of Measuring Capacitor Quality

Electronic capacitors store and release electrical energy, playing a vital role in filtering, coupling, timing, and power supply stabilization. Defective capacitors can cause equipment malfunction, overheating, or even catastrophic failures. Therefore, measuring parameters such as capacitance (C), dissipation factor (D), equivalent series resistance (ESR), and impedance (Z) is crucial for:
Manufacturing Quality Control: Ensuring consistent production of capacitors that meet design specifications.
Procurement Inspection: Verifying the quality of incoming components from suppliers.
Research and Development: Enabling precise characterization of capacitor performance under various conditions.

1.2 Challenges in Capacitor Quality Measurement

Accurate capacitor measurement requires instruments that can handle a wide range of parameters, frequencies, and test levels. Key challenges include:
Frequency Dependency: Capacitor characteristics (e.g., ESR, D) vary with test frequency.
High Precision Requirements: Small deviations in parameters can indicate quality issues, necessitating high-resolution measurement.
Testing Speed: In production lines, fast and reliable testing is essential to maintain efficiency.

2. Key Parameters for Measuring Electronic Capacitor Quality

2.1 Capacitance (C)

Capacitance is the primary parameter, representing a capacitor’s ability to store charge. It is measured in farads (F) and varies with dielectric material, temperature, and voltage. Deviations from the nominal value may indicate defects in dielectric layers or electrode connections.

2.2 Dissipation Factor (D)

The dissipation factor (D) measures a capacitor’s energy loss, primarily due to dielectric and resistive losses. A higher D value indicates poorer efficiency and heat generation, which can shorten the capacitor’s lifespan. For electrolytic capacitors, a high D may signal drying of the electrolyte.

2.3 Equivalent Series Resistance (ESR)

ESR reflects the internal resistive losses of a capacitor, including electrode and dielectric resistance. High ESR can cause voltage drops and overheating in high-frequency applications, such as switching power supplies.

2.4 Impedance (Z)

Impedance is the total opposition to alternating current and is a complex function of capacitance, inductance, and resistance. It varies with frequency and is critical for assessing capacitor performance in AC circuits.

3. LISUN LS6515EN Capacitor Meter: Features and Technical Specifications

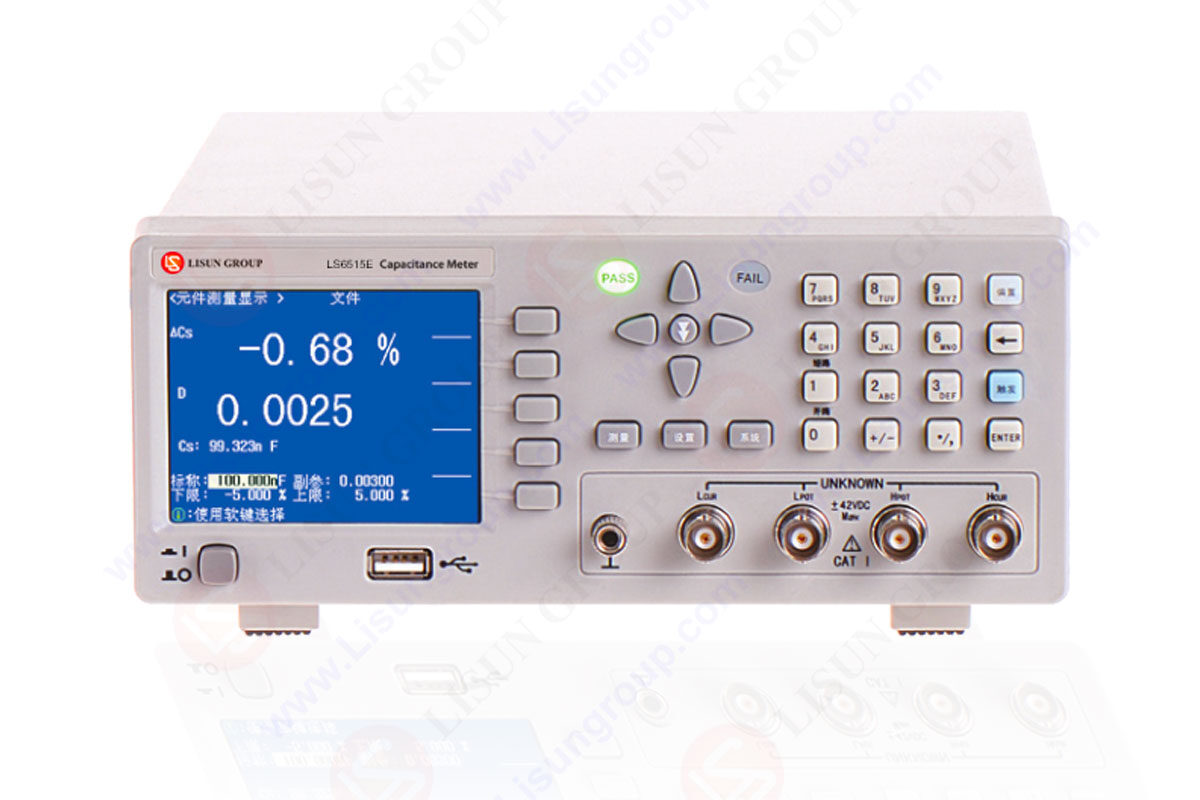

3.1 Overview of the LS6515EN

The LISUN LS6515EN is a high-precision capacitor meter designed for testing large capacitance capacitors, particularly in high-speed electrolytic capacitor braiding machines. It combines accuracy, versatility, and speed to meet the rigorous demands of production lines, quality control labs, and research facilities.

3.2 Key Technical Features

3.2.1 Test Frequencies and Parameters

The LS6515EN supports a wide range of test frequencies, including 50 Hz, 60 Hz, 100 Hz, 120 Hz, 1 kHz, 10 kHz, 40 kHz, 50 kHz, 60 kHz, and 100 kHz. This flexibility allows users to measure parameters under conditions that simulate real-world operating environments. The meter can test:
• Capacitance (C)
• Dissipation factor (D)
• Equivalent series resistance (R, ESR)
• Impedance (|Z|)

3.2.2 Test Level and Accuracy

The test level ranges from 10 mV to 2 V rms, enabling measurements under different voltage conditions. The basic accuracy is ±0.05% (refer to the accuracy table for detailed values), making it suitable for high-precision applications where even minor deviations must be detected.

3.2.3 Testing Speed

The LS6515EN offers three testing speeds:
• Fast: 40 times/second (for frequencies above 1 kHz)
• Medium: 18 times/second
• Slow: 6 times/second
This speed is particularly advantageous in automated production lines, where rapid testing is essential to maintain throughput.

3.2.4 Display Range and Resolution

The meter provides wide display ranges for key parameters:
• Resistance (R): 0.1 mΩ to 99.999 MΩ
• Capacitance (C): 0.01 pF to 9.9999 F
• Dissipation Factor (D): 0.00001 to 9.99999
Such broad ranges accommodate various capacitor types, from small ceramic capacitors to large electrolytic ones.

3.2.5 Signal Source and Interfaces

The LS6515EN features signal source output impedances of 30 Ω and 100 Ω, supporting different test setups. It includes multiple interfaces for data communication and automation:
• RS232C
• USB Host/Device
• Handler (DB9)
• Optional GPIB interface
These interfaces enable integration with automated handling systems (HANDLER) and data logging software, enhancing efficiency in industrial applications.

4. Applications of the LS6515EN in Measuring Capacitor Quality

4.1 Production Line Quality Control

In capacitor manufacturing, the LS6515EN’s high-speed testing (up to 40 measurements per second at ≥1kHz) and HANDLER interface enable seamless integration into automated production lines. For example, in a high-speed electrolytic capacitor braiding machine, the meter can rapidly test C, D, and ESR parameters, sorting capacitors into pass/fail bins using the comparator function (BIN0–BIN3, NG, Pass, Fail). This ensures that only compliant components proceed to the next production stage, reducing waste and improving yield.

Case Study: A leading capacitor manufacturer reduced their quality control cycle time by 30% after implementing the LS6515EN, while maintaining a measurement accuracy of ±0.05%. The automated HANDLER interface eliminated manual sorting errors, resulting in a 25% decrease in defective products reaching the market.

4.2 Procurement and Incoming Inspection

For electronics manufacturers sourcing capacitors from multiple suppliers, the LS6515EN provides a standardized method to verify component quality. By testing parameters at various frequencies (e.g., 1kHz for capacitance and 100kHz for loss), buyers can ensure that capacitors meet specifications for different applications. The meter’s portability (310mm×115mm×315mm, 4.5Kg) and wide power input (100–242V AC) make it suitable for on-site inspections at supplier facilities.

4.3 Laboratory Research and Development

In R&D, the LS6515EN’s high precision and wide frequency range support detailed characterization of new capacitor technologies. For example, researchers developing high-frequency ceramic capacitors can use the meter to analyze how capacitance and ESR change with frequency from 50Hz to 100kHz. The ability to switch between series and parallel equivalent circuit models allows for more accurate modeling of real-world capacitor behavior.

Example: A university research team used the LS6515EN to measure the temperature-dependent D values of new electrolytic capacitors. By conducting tests at 25°C and 85°C, they identified a correlation between high D values and electrolyte degradation, informing the development of more stable dielectrics.

5. Best Practices for Using the LS6515EN

5.1 Calibration and Maintenance

Regular calibration (e.g., monthly) using open/short circuit standards is essential to maintain accuracy. The meter’s “full frequency clear” and “dot frequency clear” functions should be used to reset calibration data for specific frequencies when changing test setups.

5.2 Test Setup Considerations

Frequency Selection: Match the test frequency to the capacitor’s intended application (e.g., 100Hz for power supply capacitors, 100kHz for high-speed signal filtering).
Test Level: Use lower voltages (e.g., 10mV) for sensitive components to avoid damage, and higher voltages (up to 2V) for stress testing.
Cable and Probe Care: Ensure test cables are shielded and properly grounded to minimize electromagnetic interference, especially at high frequencies.

5.3 Data Management

Leverage the LS6515EN’s USB and RS232C interfaces to log measurement data directly into a computer or cloud-based system. This allows for trend analysis, statistical process control (SPC), and compliance reporting with industry standards (e.g., ISO 9001).

6. Conclusion
The LISUN LS6515EN Capacitor Meter is a versatile and reliable tool for measuring the quality of electronic capacitors. Its high precision (±0.05% accuracy), wide frequency range (50Hz–100kHz), and fast testing speed (up to 40 measurements/second) make it ideal for production lines, quality control labs, and research environments. By accurately measuring parameters like C, D, ESR, and Z, the LS6515EN helps manufacturers and engineers ensure that capacitors meet the highest standards of performance and reliability. As electronic systems continue to demand smaller, more efficient components, instruments like the LS6515EN will remain indispensable in maintaining the quality and integrity of electronic capacitors.
