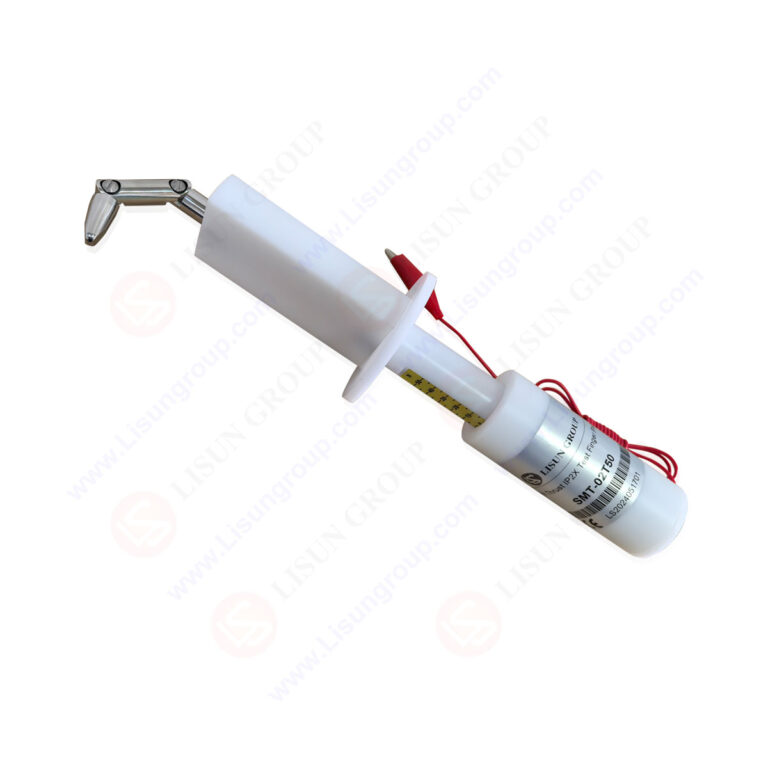

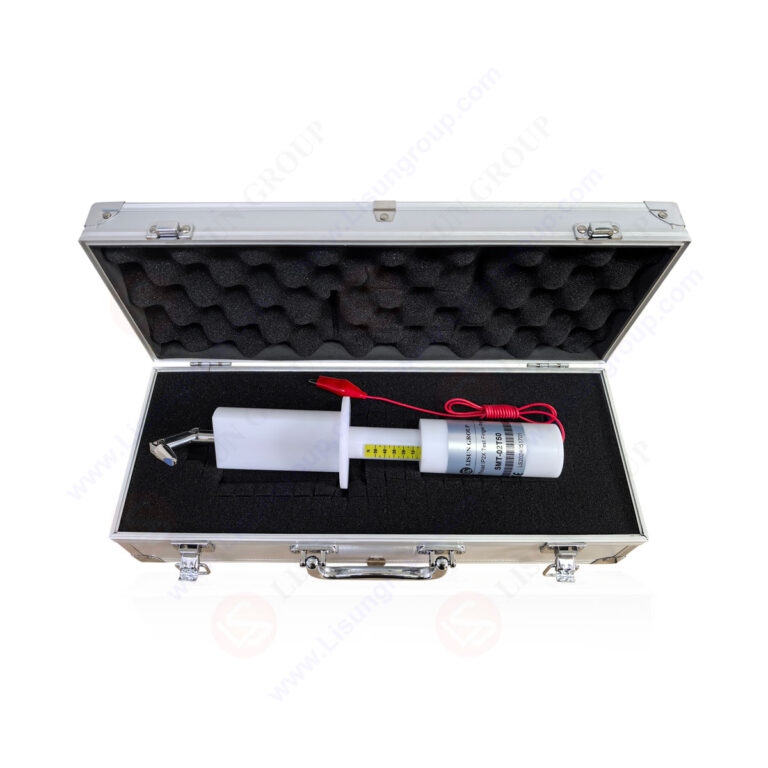

50N Thrust IP2X Test Finger Probe

The 50N Thrust IP2X Test Finger Probe is a robust safety tool engineered to simulate human finger movement for testing access to hazardous live parts in electrical equipment—from household appliances to industrial gear. It features dual joints (bending 90°±10° in one direction) to navigate curved gaps, a stainless steel body (heat-treated for durability) with chrome plating, and a polyamide insulated handle for grip. Designed to meet IP2X protection standards, it delivers adjustable thrust (10N-50N, with 50N for firm contact scenarios) to verify if equipment blocks accidental finger access to dangerous components. Compliant with global standards, it’s critical for manufacturers to prevent electric shock and validate safety.

Standards:

Specifications:
Tool Type: 50N Thrust IP2X Test Finger Probe (IEC 61032 Test Probe B; for hazardous part accessibility testing)
Probe Materia:l Heat-treated stainless steel (resistance ≤ 0.1Ω; corrosion-resistant; chrome-plated finish for wear resistance)
Handle Material: Polyamide (fully insulated, resistance ≥ 100MΩ; heat-resistant up to 130°C; ergonomic non-slip grip)
Joint Characteristics: 2 pivot joints; max bending angle: 90°±10° (same plane/direction); maintains structure under 50N thrust
Key Dimensions:
– Finger Diameter: 12mm ± 0.1mm
– Finger Length: 80mm ± 0.2mm
– Baffle Plate Diameter: 50mm ± 0.2mm
– Baffle Plate Thickness: 20mm ± 0.1mm
– Total Length (Probe + Handle): 320mm ± 0.5mm
Applied Thrust: Adjustable (10N/20N/30N/40N/50N) ± 5% accuracy; 50N for IP2X firm contact testing
Core Function: Verifies IP2X protection by blocking finger access to hazardous parts; simulates human contact via flexible joints; meets global safety standards

Test Procedures:
1. Inspect the probe for loose joints, bent tips, or cracked insulation; confirm conductivity with a test tool.
2. Power on the equipment under test (EUT) and set it to normal operating mode.
3. Select 50N thrust (or required force), hold the insulated handle, and guide the probe into EUT gaps (vents, panel seams).
4. Apply steady thrust—stop if the baffle touches the EUT or resistance blocks insertion.
5. Check the connected live-part detector for signals (indicating contact with hazards).
6. Record results: Pass if no contact; Fail if the probe reaches dangerous components.

Applications:
1. Testing IP2X protection in household washing machine control panels (per IEC 60335-1:2023 Figure 22.5) to block finger access to live wiring.
2. Verifying server cabinet gaps (compliant with IEC 60950-1:2023) to prevent accidental contact with internal circuits using 50N thrust.
3. Safety checks for medical 监护仪 (per IRAM 4220-1:2020) to ensure no finger access to hazardous components.
4. Quality control for industrial fan enclosures during manufacturing, validating IP2X compliance with 50N force.
5. Post-production testing of electric oven door seams (per IEC 60529:2013 Figure 8.2) to meet global appliance safety rules.
