Abstract: The increasing integration of electronic components in modern vehicles necessitates rigorous testing to ensure their resilience against electromagnetic disturbances. The Automotive Electronics Immunity Test, guided by the EMS-ISO 7637 standard, plays a pivotal role in this validation process. This paper delves into the significance of these tests, the typical electromagnetic disturbances encountered during vehicle operation, and the capabilities of the LISUN EMS-ISO7637 Multifunctional Immunity Test System in simulating these conditions.
Introduction
The evolution of automotive technology has led to the proliferation of electronic systems within vehicles, enhancing functionality, safety, and user experience. However, this advancement also introduces challenges related to electromagnetic compatibility (EMC). Electronic components must operate reliably without succumbing to or emitting electromagnetic disturbances that could impair vehicle performance or safety. The Automotive Electronics Immunity Test, particularly under the EMS-ISO 7637 standard, is designed to assess the resilience of these components against such disturbances.
Understanding Electromagnetic Disturbances in Vehicles
Vehicles are dynamic environments where various sources can generate electromagnetic disturbances:
• Switching of Inductive Loads: Activating or deactivating components like motors and solenoids can induce voltage transients.
• Alternator Operations: Fluctuations in the alternator’s output can introduce voltage variations.
• Electrostatic Discharges (ESD): Static electricity buildup and sudden discharge can affect electronic circuits.
• Load Dump: Sudden disconnection of the battery while the alternator is charging can cause significant voltage spikes.
These disturbances can manifest as transient pulses, continuous waves, or intermittent signals, each posing unique challenges to electronic systems.
EMS-ISO 7637 Standard Overview
The ISO 7637 standard specifies test methods and procedures to evaluate the immunity of vehicles’ electrical and electronic components to transient disturbances conducted along supply lines. It categorizes various transient waveforms, each representing specific disturbance scenarios:
Pulse Type | Source of Disturbance | Simulated Scenario |
Pulse 1 | Disconnection of inductive loads | Voltage transient when turning off relays, solenoids, etc. |
Pulse 2a | Sudden current interruption | Interruptions in parallel-connected devices |
Pulse 2b | Disconnection of inductive loads | Voltage spikes caused by switching high-inductance loads |
Pulse 3a/3b | Switching processes | Noise generated by electronic component switching |
Pulse 4 | Starter motor supply fluctuations | Voltage drops caused by engine startup |
Pulse 5a/5b | Load dump | Voltage surge caused by disconnecting a charging battery |
The ISO 7637 standard specifies detailed parameters such as amplitude, rise time, pulse width, and repetition rate to ensure test accuracy.
The Role of Automotive Electronics Immunity Testing
Conducting immunity tests ensures that automotive electronic components can withstand electromagnetic disturbances without degradation of performance. This testing is crucial for:
• Safety: Preventing malfunctions in critical systems like braking or steering.
• Reliability: Ensuring consistent performance under various operating conditions.
• Compliance: Meeting industry standards and manufacturer specifications.

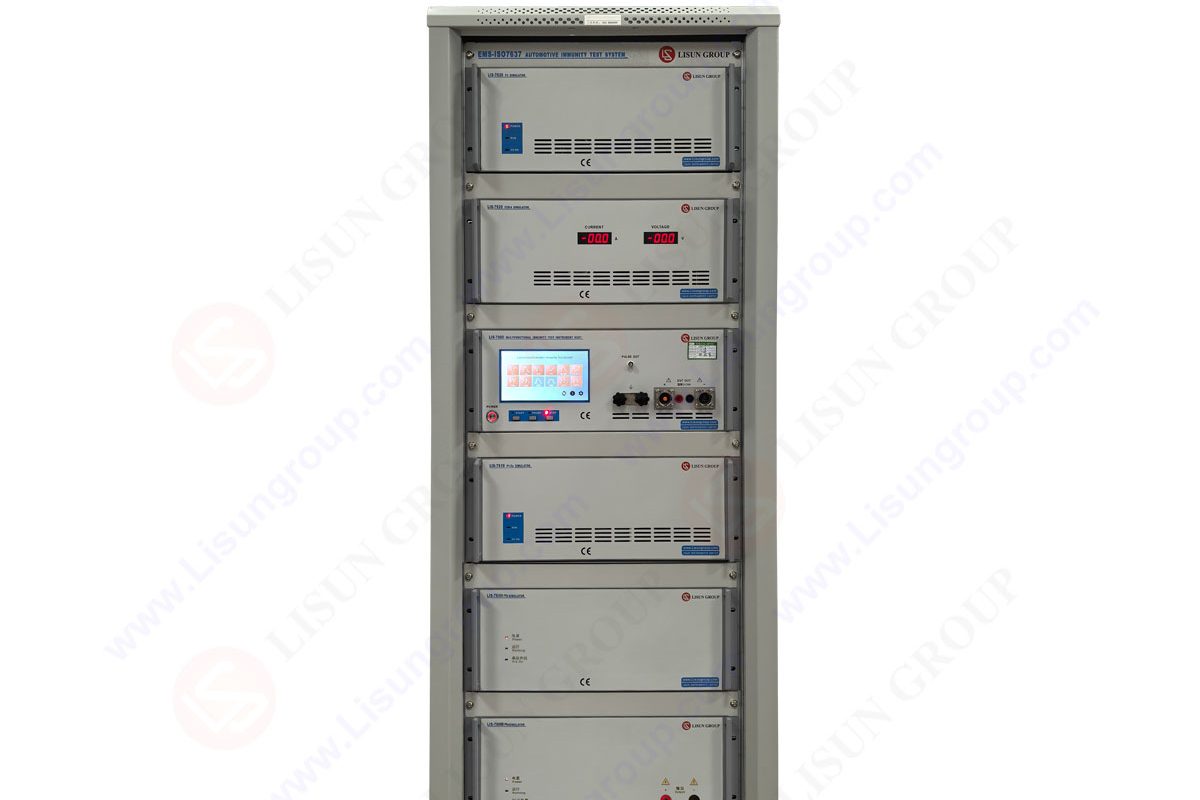

LISUN EMS-ISO7637 Multifunctional Immunity Test System
The LISUN EMS-ISO7637 system is engineered to simulate the electromagnetic disturbances outlined in the ISO 7637 standard, providing a comprehensive solution for immunity testing. Key features include:
• Comprehensive Pulse Simulation: Capable of generating all pulse types specified in ISO 7637, covering a wide range of test scenarios.
• User-Friendly Interface: Equipped with a large LCD color display and modular architecture, facilitating intuitive operation and future scalability.
• Versatile Testing Capacity: Designed for 12V/24V automotive electronic systems, supporting DC 80V/100A with unified port output.
• Integrated Software Control: Offers built-in interfaces compatible with LISUN’s PC software, encompassing all relevant standards with the flexibility for updates.
• Comprehensive System Configuration: Includes various modules such as Pulse 1 & 2a Simulator (LIS-7610), Pulse 2b & 4 Simulator (LIS-7620), Pulse 3a & 3b Simulator (LIS-7630), and Pulse 5a & 5b Simulator (LIS-7650), among others.
Technical Specifications
Test Parameter | LISUN EMS-ISO 7637 Specification |
Pulse Amplitude | -112V to +100V |
Pulse Rise Time | As fast as 1μs |
Pulse Duration | 2ms – 400ms |
Voltage Range | 12V/24V, up to 80V |
This system precisely simulates automotive electromagnetic disturbances, subjecting the Device Under Test (DUT) to rigorous real-world testing to ensure its electromagnetic compatibility (EMC).
Importance of Compliance and Certification
Adherence to standards like ISO 7637 is not merely a regulatory requirement but a commitment to quality and safety. The LISUN EMS-ISO7637 system is designed to facilitate compliance, offering features that align with international testing protocols. Manufacturers utilizing this system can be confident in their products’ ability to meet global EMC requirements.
Conclusion
Ensuring the electromagnetic immunity of automotive electronic components is crucial in modern vehicle manufacturing. The Automotive Electronics Immunity Test, particularly those based on ISO 7637 standards, is essential for validating the reliability of electronic systems.
The LISUN EMS-ISO 7637 Multifunctional Immunity Test System provides a complete electromagnetic disturbance simulation solution, ensuring that automotive electronics can function stably under extreme conditions such as engine startup, electronic device switching, and load dumps. With high precision, modular design, and extensive compatibility, this system is an ideal choice for automotive electronics manufacturers.
