Product No: TTC-2

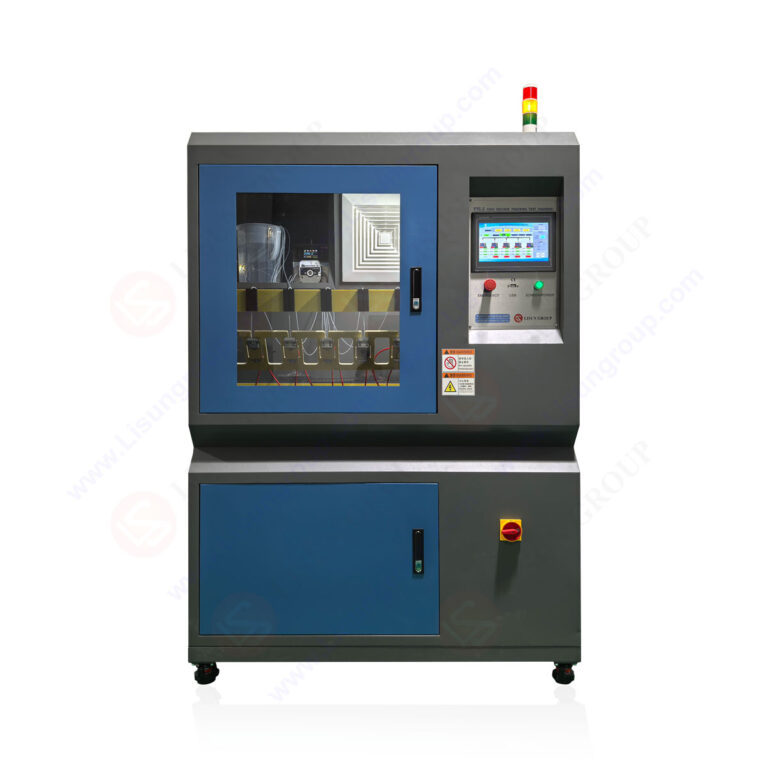

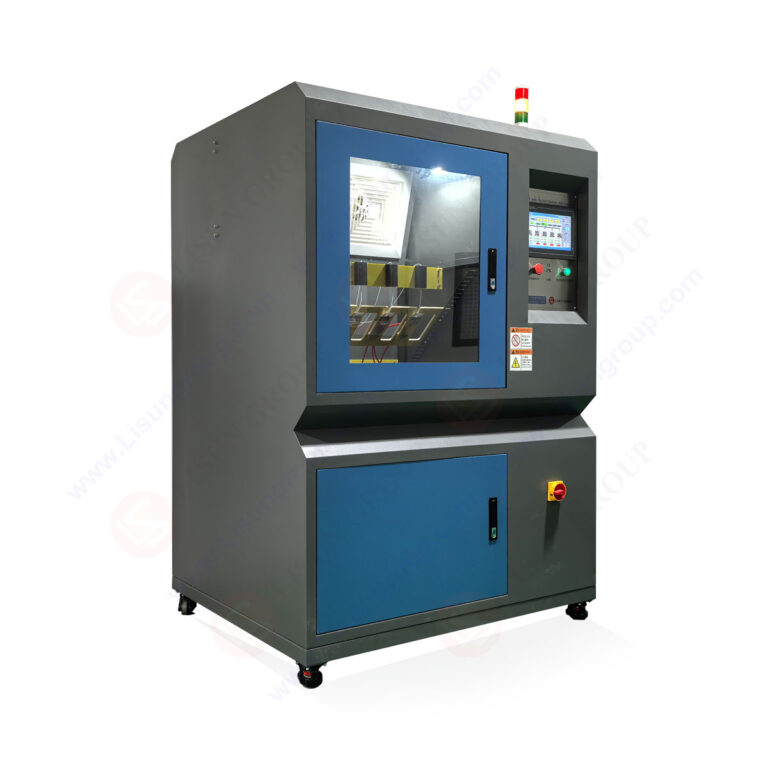

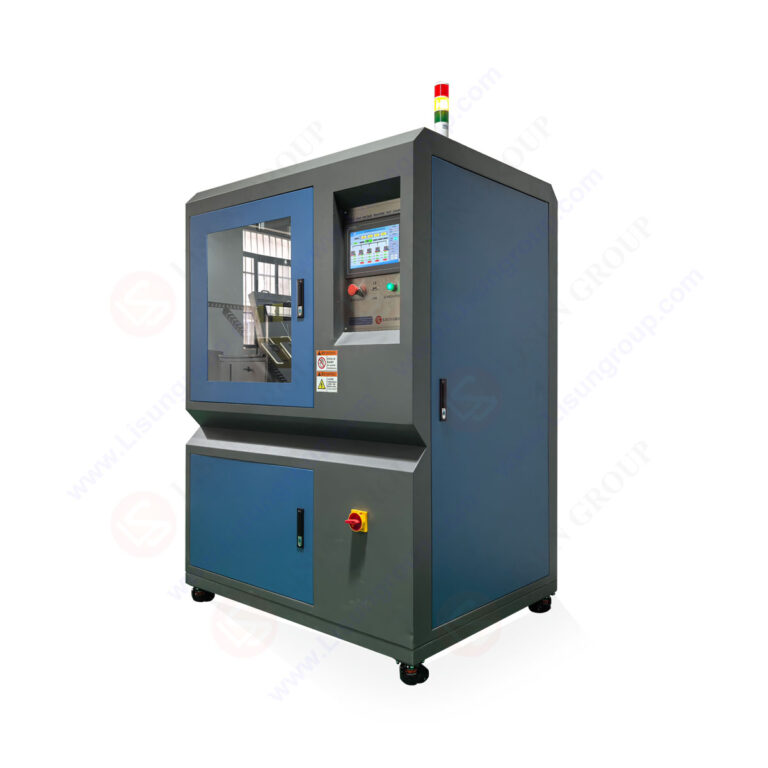

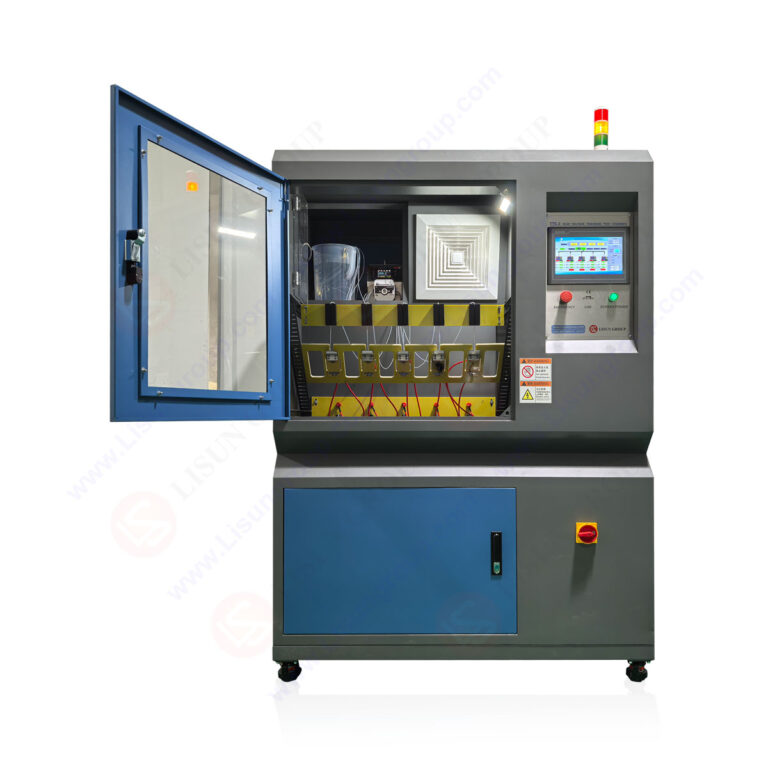

The TTC-2 High-Voltage Tracking Tester is a high-precision tester designed by LISUN specifically for testing the tracking and erosion resistance of solid insulating materials. It simulates the tracking risk of insulating materials under power-frequency high voltage in harsh environments (such as humid and polluted conditions). By applying high voltage and dripping liquid contaminants, it assesses the material’s tracking resistance. Widely used in R&D, production, and quality inspection in the electrical and electronics, new energy, and rail transit sectors, it is a crucial testing tool for ensuring the safe use of insulating materials during high-voltage operation.
Standards:
| Standards NO. | Standards Name |
| IEC 60587:2022 | Methods for evaluating the resistance of electrical insulating materials to tracking and erosion under severe ambient conditions |
| UL 746A:2023 （Clause 34 ） | sStandard for Polymeric Materials – Short Term Property Evaluation |
| GB/T 6553-2024 | 评定在严酷环境条件下使用的电气绝缘材料耐电痕化和蚀损的试验方法 |
Specifications：
| Specific Parameter Items | Specifications |
| Electrical capacity | 7kVA |
| Input voltage | AC 220~240V，50/60Hz |
| Output voltage | AC/DC 1000~6000V (Supports DC and AC voltage modes) |
| Test voltage drop | ≤5% (Oil-immersed transformers ensure stable voltage and low voltage drop) |
| Short circuit requirements | Short-circuit current ≥60mA, duration ≥2S |
| Test methods | Constant voltage method, step-by-step voltage method (two methods can be switched) |
| Number of samples | 5-way sample testing at the same time, each way is independently controlled |
| Time setting | The test time can be freely set (supporting different standards for different test duration requirements) |
| Drip control | The peristaltic pump controls the drip flow rate, which can be set on the touch screen and displayed in real time. The drip size can be adjusted as needed. |
| Electrode parameters | Electrode spacing: (50±0.5) mm; Electrode material: 304 corrosion-resistant stainless steel; Electrode fixation: Upper and lower separated high-insulation composite material bracket |
| Filter paper specifications | Thickness 0.15~0.17mm, equipped with 304 stainless steel template (to avoid cutting errors affecting liquid flow rate) |
| Data Monitoring | Real-time display of leakage current, real-time voltage and maximum current value during the test for each sample |
| Alarm function | The leakage current threshold can be freely set from 0 to 100 mA. When the threshold is exceeded, the high voltage of a single circuit is cut off and an alarm is issued without affecting other circuits. |
| Safety protection | Overvoltage protection, overcurrent protection, short circuit protection, leakage protection; test door interlock (automatically cuts off high voltage when the door is opened) |
| Cabinet parameters | Internal volume ≥ 0.75 cubic meters, with glass observation door (for easy observation of the test process); test door: pneumatic rod door / sliding door |
| Voltage Control | Supports automatic voltage boost (automatically increases to the specified value after setting the voltage) and automatic zeroing after the test |
| Data calibration | After long-term use, the equipment can calibrate the voltage and current to ensure test accuracy. |
| Liquid Recovery | The test liquid tank and waste liquid tank are separated to avoid contamination and ensure accurate liquid concentration |
| Body material | High temperature spray-coated steel structure, high temperature resistance, corrosion resistance, adaptable to long-term high temperature testing environment |
| Operation Display | Self-developed large LCD touch screen + clear indicator light |
Feature:
1. Electrical and Electronic Insulation Materials Industry
• Insulator Testing: Testing the tracking resistance of porcelain and composite insulators used in power systems. This simulates the risk of high-voltage leakage in a humid and polluted outdoor environment to verify whether the material will produce tracking at 6000V, thereby preventing insulator breakdown and grid failure.
• Electrical Insulation Component Testing: Testing the insulation casings of contactors and circuit breakers (such as PA66+GF30 engineering plastics) and motor winding insulation paper. This testing is conducted through AC 1000-6000V voltage tests to assess their corrosion resistance under high voltage and ensure compliance with the safety requirements for electrical insulation materials in GB/T 6553-2024.
2 New Energy Industry
• Power Battery Insulation Component Testing: Verifies the tracking resistance of internal insulation separators (such as epoxy glass cloth panels) and high-voltage wiring harness insulation layers under high voltage (DC 3000-6000V) in power battery packs. This prevents insulation failure caused by electrolyte leakage and contamination, ensuring battery pack safety.
• Photovoltaic Module Testing: Tests the internal insulation gaskets and junction box insulation materials of photovoltaic inverters. Tests are conducted using the step-by-step voltage method to verify the material’s tracking resistance, simulating outdoor high-temperature and high-humidity environments. This test meets the stringent requirements of IEC 60587:2022 for insulation materials in new energy equipment.
3. Rail Transit and High-Voltage Equipment
• Rail Vehicle High-Voltage Component Testing: Testing the insulation layers of high-voltage cables and pantograph insulators in subways and high-speed railways, evaluating their tracking resistance at voltages of AC 2500-6000V. This prevents tracking caused by dust and moisture in the rail environment and ensures the stability of the vehicle’s power supply system.
• High-Voltage Switchgear Testing: Testing the insulating materials of high-voltage switchgear, including insulating partitions and bushings. Using a constant voltage method (e.g., applying AC 6000V), we verify the material’s corrosion resistance under long-term high voltage conditions, ensuring compliance with power industry safety standards for high-voltage equipment insulation.
4. Material R&D and Quality Inspection
• Material R&D Verification: During the new product development phase, insulation material companies (such as silicone rubber and engineering plastics manufacturers) use this device to test the tracking resistance of different material formulations (for example, adjusting the amount of flame retardant added) and optimize material composition to improve high-voltage leakage resistance.
• Third-Party Testing and Certification: Testing organizations such as SGS and CQC use the TTC-2 to provide companies with insulation material compliance test reports based on UL 746A:2023 Clause 34 and IEC 60587:2022, helping products obtain international certifications such as CE and UL and enter the global market.
