LISUN LPCE-2(LMS-9000C) High Precision Spectroradiometer Integrating Sphere System – After-sales Frequently Asked Questions (FAQ)

Q1：The big sphere can’t be openned.
A1：We put two screws to lock the sphere during the transportation to avoid opening. Please just remove these two screws.

Q2：How to disassemble the big integrating sphere into two parts to facilitate transportation.
A2：First of all, it is not recommended to disassemble and transport it, as this will easily stain the internal coating. If you have to, please remove all the large black hand screws to disassemble the big integrating sphere into left and right parts. NOTE: Do not remove any other kind of screws. During transportation, please be careful not to dirty the internal coating of the integrating sphere.

Q3：The communication between software and hardware (LMS-9000C spectroradiometer, AC power source, DC power source, Power meter, etc) is failed.
A3：There are two drivers need to be installed. Please confirm that you installed both successfully.

Please connect the two USB cables of the system to the blackUSB2.0 ports of the computer.
Enter the “Device manager” of the computer (Please google it if you don’ know how to enter this interface), and you can see LMS-9000 model and more COM ports there, then it means the communication is ok.

Q4：How to update the latest driver for LMS-9000.
A4：Enter “Device manager” of the computer. You can find the LMS-9000 device here:
Right click LMS-9000 and select “Uninstall device”:

Check “Delete the driver software for this device” and click “Uninstall”:

Click “Scan for hardware changes”. The LMS-9000 is shown as “Unknown device”:

Please download the new driver here: https://drive.google.com/file/d/1LRj3ioOCje2yGLnxzxRWBhlMp7BPZcEm/view?usp=sharing
Double click to install it:

Then you can find the LMS-9000 is ready to use.

Q5：A parameter on the front panel of digital power meter shows a negative value.
A5：Please check the wiring on the back of the power meter and confirm that the four wires A1 A2 V1 V2 are connected to the correct terminals.

Q6：The standard lamp can’t be turned on automatically.
A6：① Confirm that the AC/DC switch is at DC.

② Check “Auto power on” on the calibration interface. Input the correct voltage and current according to the calibration certification.

③ Confirm that the filament of the standard lamp is still good.

Q7：The installation direction of the sample.
A7：The integrating sphere holder base can be installed on the top or bottom of the integrating sphere. When installed at the bottom of the integrating sphere, all lamps should be installed with the emitting direction facing directly upward, as shown below:
On the contrary, if the holder base is installed on the top of the integrating sphere, all lamps should be installed with the emitting direction facing directly downwards.

Q8：Test results are not correct.
A8：① Confirm that the standard lamp is still in valid time (Its valid time is only 1 year). Recalibrate the system. After calibration, confirm that the CCT and flux values displayed are close to the values that on the certification (CCT within 2k, and flux within 2 lumen).

Note: If the system is used frequently, it needs to be calibrated once a week. If the system is not used for a long time, it can be calibrated before next use. If too long has passed since the last calibration, the test data will be inaccurate.

② Confirm that you are using the correct assistant lamp revision coefficient. Bared light sources and small luminaires donot need to use assistant lamp revision coefficient. That is to say, the coefficient is 1. But big luminaires need to use assistant lamp to generate this coefficient (Please refer to the user manual for the detailed steps), and the coefficient is bigger than 1.

③ Please always check “Auto” for the “integration time” when you calibrate the system and run a test.
Calibration interface:

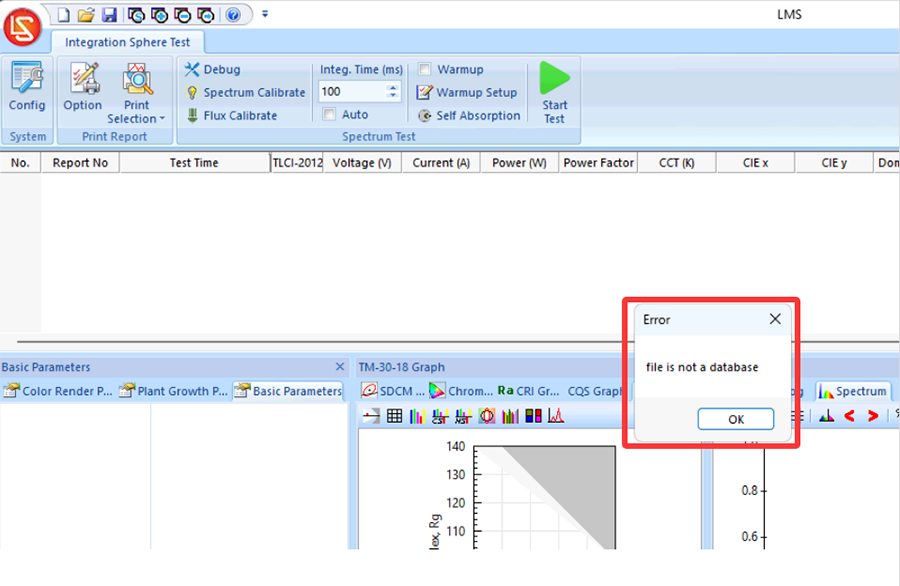

Measurement interface:

④ When using a big integrating sphere to measure small lights, the signal may be too weak; When using a small integrating sphere to measure big lights, the signal may be too strong. This may also lead to inaccurate test results. Please choose an integrating sphere of appropriate size for testing according to the actual situation.
⑤ Note: When you test big luminaires or directional luminaires, you need to use assistant lamp. Then the test results will be closer to the actual values, but there will still be errors. Such luminaires can be tested in a darkroom using a goniophotometer to obtain more accurate photometric parameters.
⑥ If the integrating sphere is used for too long, or care is not taken to protect the internal coating of the integrating sphere, resulting in serious damage to the internal coating of the integrating sphere, or a darker color, it will also lead to inaccurate test data.

Q9：During calibration or testing, the software prompts that the signal is too weak.
A9：The LMS-7000 spectroradiometer receives the optical signal from the integrating sphere through optical fiber. When calibrating or testing, please confirm that the standard lamp or sample lamp is normally turned on, and the optical fiber is properly connected to the integrating sphere. Otherwise, the software will prompts that the signal is too weak. In addition, the optical fiber should not be bent too much, otherwise it may cause the fiber to break and cause problems with optical signal transmission.

Q10：Software can’t get electrical parameters.
A10：Please confirm that you selected the correct power meter model and the correct COM port. See the figure below:

If your power meter is only for AC, so please select DC power supply as the DC power meter if your sample is DC lamp. See the figure below:

Q11：DC samples can’t be turned on automatically.
A11：Please confirm that the voltage and current of the sample is within the limit of the DC power supply. For example, the limit voltage is 30V and the limit current is 5A for DC3005 DC power supply.
If the sample needs constant current (CC), you need to input its rated current and a high enough voltage.
If the sample needs constant voltage (CV), you need to input its rated voltage and a high enough current.

Q12：How to maintain an integrating sphere.
A12：① The internal coating of the integrating sphere is very important, so you must wear white gloves whenever you are working inside the integrating sphere to avoid staining the internal coating of the integrating sphere.
② When the integrating sphere is not in use, keep it closed to prevent dust from entering. If dust gets in, use a blower to blow it out. Please do not use any contact materials to clean the inside of the integrating sphere, otherwise the coating may be damaged.
③ If the sample, etc. falls, causing a small area of coating inside the integrating sphere to peel off, please contact us. We can send you a small amount of paint free of charge to repair the peeling parts.
