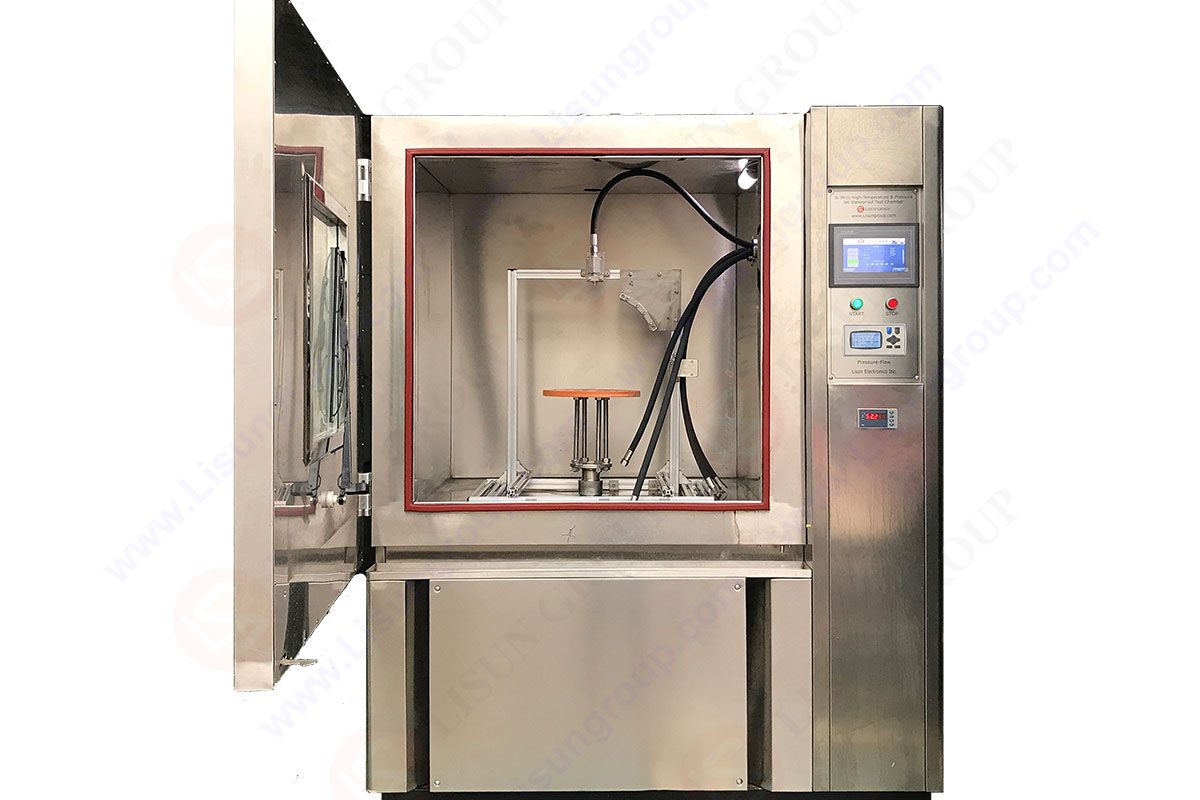

JL-9K1L High Temperature & Pressure Jet Waterproof Test Chamber is according to IEC60529:1989 +A1:1999 +A2:2013 《Degrees of protection provided by enclosures(IP Code)》, GB4208, DIN40050-9,GB7000.1,ISO20653 and VW80000 for protection level IPX9K testing. It is a waterproof test machine designed for vehicle spare parts, electrical and electronic industry, to simulate natural environment or human factors.
The both interior and exterior material of this chamber is high quality stainless steel, big glass observation window and elegant appearance. The turntable and spray lance adopt imported motor, and the rotation speed is adjustable.
Q1: The device cannot be started or the screen prompts the phase sequence error
A1: The power supply of the equipment is three-phase power supply. Please refer to the product nameplate for voltage and frequency. Make sure the voltage is correct. If it still fails, please switch the phase sequence of any two live wires before starting.
Q2: The touch screen clicks water, but the water tank still does not water
A2: The water inlet of the test chamber needs a certain water pressure. If there is no water pressure, the water container can be placed higher than the top of the test chamber to generate enough water pressure to allow water to enter the test chamber.
Q3: Point to start the test, but the test did not start
A3:

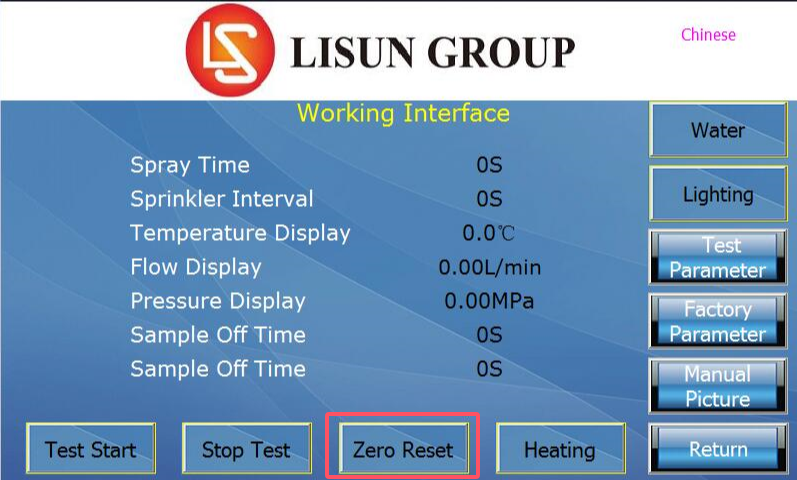

1) After the test, please click “reset to zero” before the next test
2) The test will not start until the water is heated to the set temperature. In addition, the heating state shall be maintained during the test to prevent the water temperature from falling.
