21 Jun, 2021 1080 Views Author: Cherry Shen

LISUN solution for RoHS testing methods

Introduction to RoHS testing
The European Union officially announced the 2002/95/EC Directive on 27th January, 2003, the “Directive on the Prohibition of Certain Hazardous Substances in Electrical and Electronic Equipment” (referred to as the RoHS Directive), which took effect on 1st July, 2006 . The directive requires that eight categories of electronic and electrical products sold in the EU market must undergo RoHS testing and must not contain six hazardous substances such as lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls and polybrominated diphenyl ethers.
ROSH Environmental Certification-Management Measures for the Control of Pollution by Electronic Information Products-The “Administrative Measures” implemented on 1st March, 2007 require companies to affix their labels in accordance with the requirements of SJ/T 11364-2006.

Core content of “Administrative Measures”:
Producers should gradually reduce and eliminate the content of lead, mercury, cadmium, hexavalent chromium, polymeric brominated biphenyl (PBB), polymeric brominated biphenyl (PBDE) and other toxic and hazardous substances in products; for those that cannot be completely eliminated, The content of toxic and hazardous substances shall not exceed the relevant provisions of the standard.

The detection methods of 6 hazardous substances in RoHS:

Test MethodLearn from IEC62321 documents

Test project

Test Method

Chemical analysis method

Pb

EDX-2(RoHS Testing Equipment)

ICP(Plasma emission spectroscopy)、AAS(Atomic absorption spectrophotometer)

Cd

EDX-2(RoHS Testing Equipment)

ICP(Plasma emission spectroscopy)、AAS(Atomic absorption spectrophotometer)

Hg

EDX-2(RoHS Testing Equipment)

ICP(Plasma emission spectroscopy)、AAS(Atomic absorption spectrophotometer)

Cr+6

Color setting method (diphenylcarbazide)

UV(UV-Visible Spectroradiometer)

PBB

None (all use X fluorescence to test total bromine, less than 320ppm is absolutely environmentally

GC/MS

PBDE

RoHs Testing Methods for Toxic and Harmful Substances in Electronic Information Products” (hereinafter referred to as “Testing Methods”, the standard number is SJ/T 11365-2006) limits the testing methods for harmful elements in the RoHS requirements. Among them, X-ray fluorescence spectroscopy (XRF) has been established as a quick screening method as the fastest and most convenient method. X-ray fluorescence spectroscopy (XRF) can be used to accurately test the corresponding standard samples of the five elements of lead (Pb), mercury (Hg), cadmium (Cd), chromium (Cr), and bromine (Br).

The EDX-2 RoHS test Instrument mentioned in the above detection method is a RoHS edxrf spectrometer developed by Lisun engineers according to market demand, which fully meets the requirements of the latest EU RoHS directive and is exported to foreign markets. The following is the product picture:

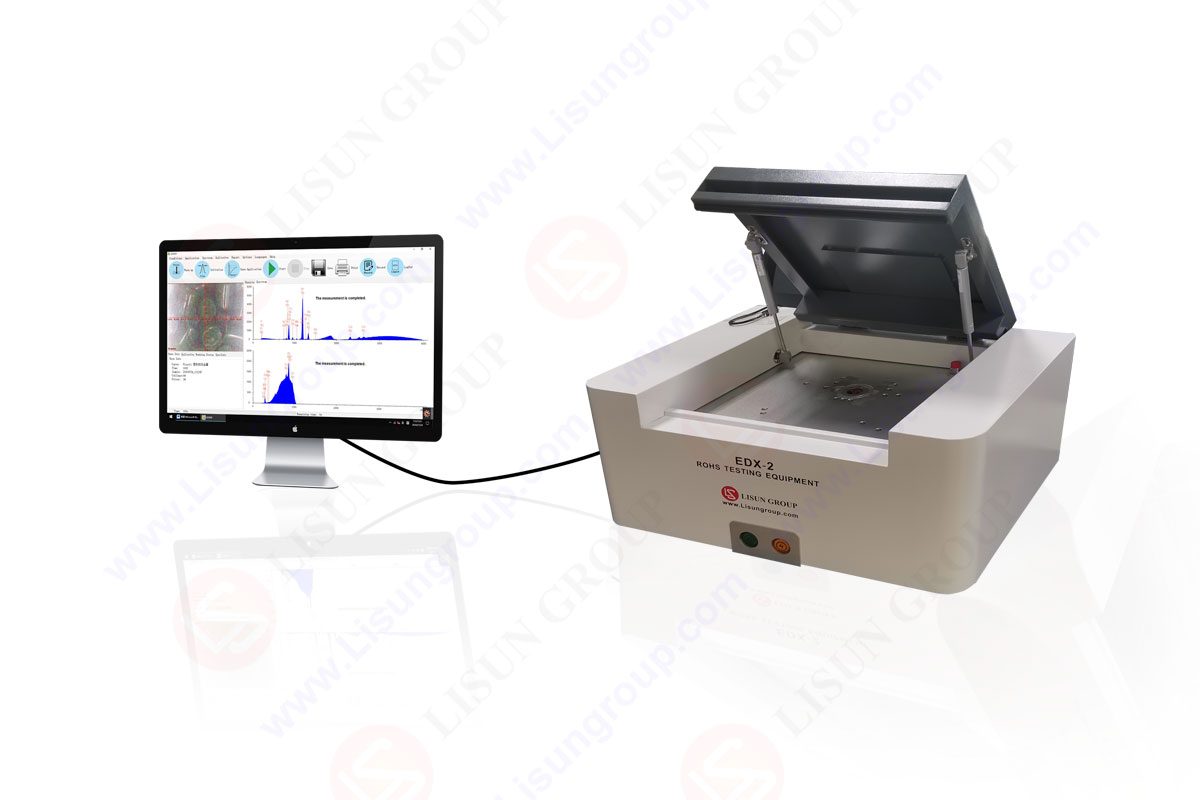

EDX-2_Rohs test equipment

EDX-2_Rohs test equipment

Lisun Instruments Limited was found by LISUN GROUP in 2003. LISUN quality system has been strictly certified by ISO9001:2015. As a CIE Membership, LISUN products are designed based on CIE, IEC and other international or national standards. All products passed CE certificate and authenticated by the third party lab.

Our main products are Goniophotometer, Surge Generator, EMC Test SystemsESD Simulator, EMI Test Receiver, Electrical Safety Tester, Integrating Sphere, Temperature Chamber, Salt Spray Test, Environmental Test ChamberLED Test Instruments, CFL Test Instruments, Spectroradiometer, Waterproof Test Equipment, Plug and Switch Testing, AC and DC Power Supply.

Please feel free to contact us if you need any support.
Tech Dep: Service@Lisungroup.com, Cell/WhatsApp: +8615317907381
Sales Dep: Sales@Lisungroup.com, Cell/WhatsApp: +8618917996096
