Explain integrating sphere and its geometries

An integrating sphere is a sphere having a reflecting covering on the interior, as implied by the name. It is designed to have a light source inside of it, at which point it can calculate the overall flux output of the light. Hence 2pi and 4pi integrating spheres are one of its types.
It amasses all the rays that leave the item and are reflected by the coating on the interior of the sphere. As its name implies, an integrating sphere is used to integrate the measured light output from a source.
An integrating sphere is a device that detects flux or attenuates optical radiation from a source typically located outside the optical instrument. When radiation is injected into an integrating sphere, it collides with the reflecting walls and is scattered in many directions.
Because of all the refractions, the radiation is spread out quite evenly around the sphere’s borders. The detector can readily measure the resultant integrated radiation level since it is proportionate to the starting radiation level.

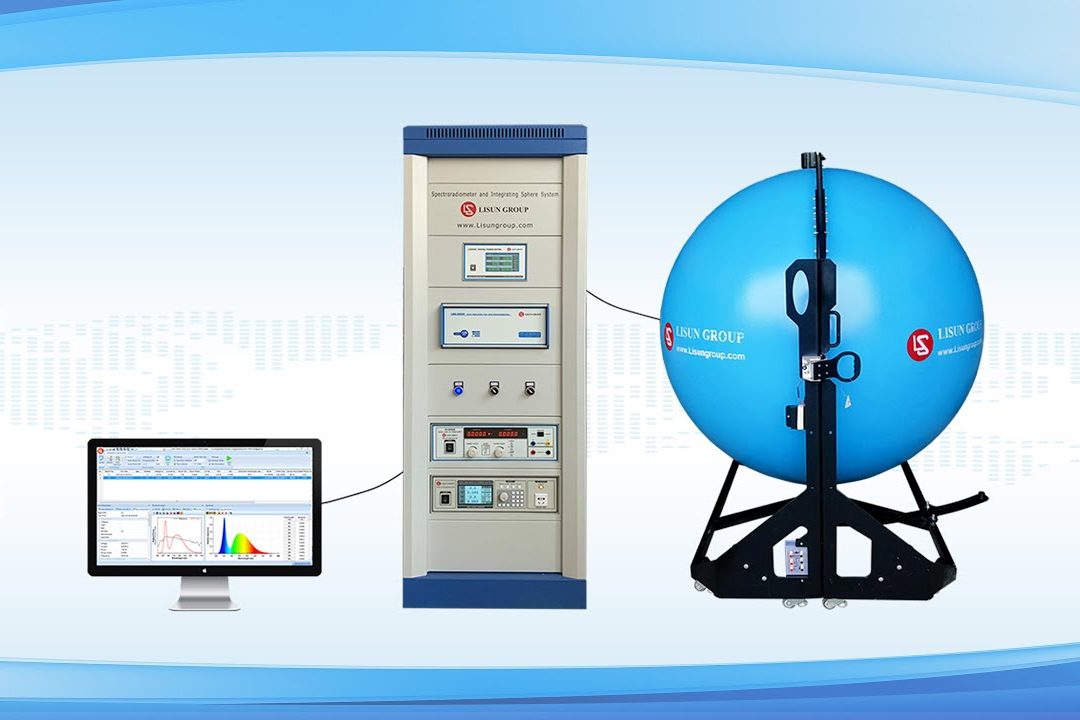

Explain integrating sphere and its geometries

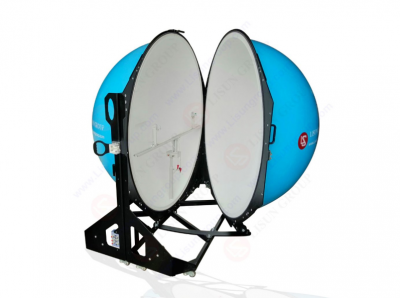

Figure: Integrating Sphere

How integrating sphere functions
A light source (the sample) may be positioned in front of the sphere opening (2) for an irradiance measurement or within the integrating sphere (4) for a complete capture of the radiant flux to obtain a reading. Light beams will reflect off the coating many times when using any of these measuring settings, creating a uniform illumination throughout the whole, integrating sphere.
Baffles like this are crucial because the detector or the area on the integrating sphere’s interior from where it is getting direct reflectance should not be directly struck by the light entering the sphere.
Most
integrating sphere designs have baffles to facilitate this function. Baffles may create mistakes because they hinder the integrating sphere from having a precisely formed spherical cavity. That’s why it makes sense to utilize as few baffles and ports as possible in an integrating sphere.

Reflective coatings
Consider reflectivity and durability while deciding on an integrating sphere’s reflective coating. High-reflective, diffuse coatings should be applied to all parts, including the baffles, to guarantee that all incoming light is scattered back into space. If the ball will be exposed to a lot of light and used in a place where it can pick up dust or dirt, it’s best to go with a tougher, washable covering. Avoiding dirt and dust is important since they both reduce reflectivity and absorb light.

Integrating Sphere Design
A few universal factors must be considered while designing an integrating sphere for any purpose. Depending on the available ports and other accessories, you’ll need to choose a sphere with the right diameter. When deciding on a coating for a spherical, spectral range and performance goals must be considered.
Radiometric equations are provided for calculating the effectiveness of the coupling between an integrating sphere and a detection system, and the employment of baffles about incoming radiation and detector field of view is examined.

The inner surface and inner wall of an integrating sphere are spherical and composed of a light-scattering substance, such as barium sulfate, with high reflectance. The efficient use of an integrating sphere is to evenly disperse a beam of light (the measuring light) that enters the sphere.

2pi and 4pi integrating sphere
The 2pi and 4pi approaches are often used to test various light sources, fixtures, and components, such as LED modules and arrays.
Directional lights with forward-directed light output are the primary target of the 2pi testing geometry. The test bulb is positioned in the sphere’s side port such that its light beam travels across the sphere and first contacts a blank area of ​​the sphere. Because the initial reflection illuminates the whole surface of the sphere more consistently, the lamp’s beam may project onto a continuous part of the surface that is free from impediments or seams.
Omnidirectional lights emit light in any direction and are often subjected to the 4pi testing geometry. A test The bulb is positioned in the sphere’s centre so that its light is diffused uniformly over the whole sphere, allowing for more reliable results.
It designed these two forms of testing to account for the differences between omnidirectional and directional goods while still producing reliable outcomes. However, due to their unique beam intensity properties, various lamp types might result in varied photometric results inside an integrating sphere.
Calibration standards are linked to individual testing procedures to ensure the utmost precision of the results. A directional lamp’s measured output in 2pi geometries should be equivalent to that of an omnidirectional lamp’s measured output in 4pi geometries.

Integrating Sphere

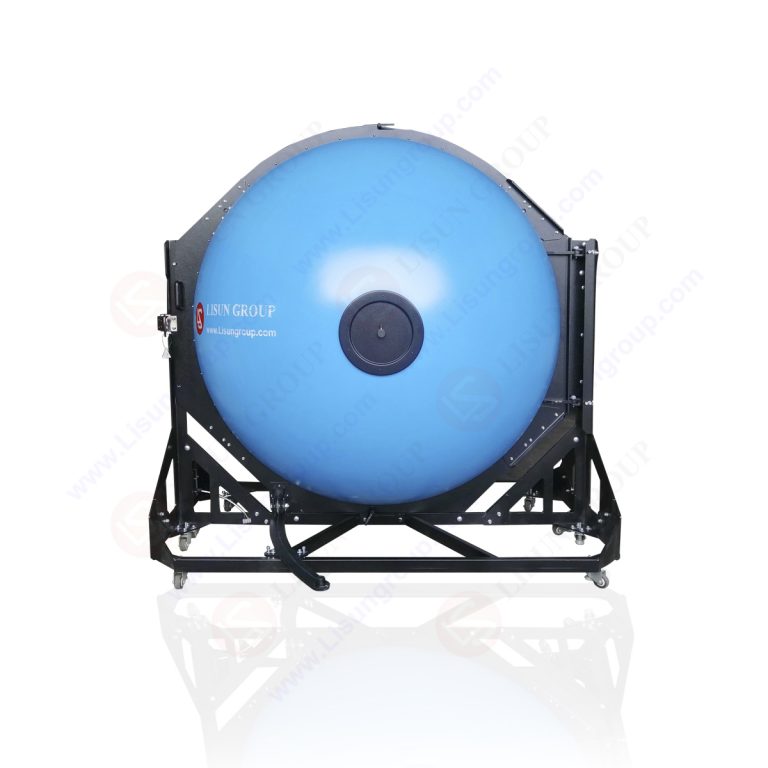

Figure: Integrating Sphere

Applications of integrating sphere
Radiant flux is gathered and integrated spatially using integrating spheres. It may detect the flux before or after interacting with a material sample. When used as part of a radiometer or photometer, the integrating sphere allows for direct measurement of the flux density generated by hemispherical illumination and point sources like lamps and lasers.
Total reflectance and transmittance measurements from diffuse or scattering materials are perhaps the most common usage of integrating spheres. One method uses the integrating sphere’s port aperture as a uniformly lighted, wide-area source. They are also useful as consistent back illuminators or for calibrating electronic imaging equipment and systems.

Radiometers and photometers
Directly measuring the total geometric flux from a light source or the flux density of an illuminated region may be done with the help of an integrating sphere and a photodetector with suitable spectral sensitivity. The optimal integrating sphere design is based on the geometric distribution of the light being measured.
Which photodetection technique is best relies on the light source’s spectral characteristics. Typically, the watt is the radiometers’ SI unit of radiant flux. Most radiometers employ quantum response photodetectors.
Since their sensitivity varies over the visible spectrum, it is usually more practical to tune the response for a single spectral area using optical filters, except for situations where the input flux is monochromatic.

When it comes to the wavelengths of light, thermal detectors are unprejudiced. As a result of this quality, they are also vulnerable to the effects of the earth’s background heat radiation. They often need a temperature-controlled environment and adjust their input radiation to allow for synchronous detection.
Modifying the photodetector’s relative spectral responsivity is the spectral dependency of the integrating sphere multiplier. To construct or calibrate your measurement system for a certain sensitivity, you’ll need to think about the sphere and detector together.
Photometers are a subset of radiometers that use a quantum detector with filters designed to mimic the typical human observer’s spectrum response. The term “luminous efficiency function” describes the specificity of this response.
The lumen is the standard measure of photometric flux. The detector response function combines the spectral radiant flux with a predetermined weighting scheme to generate a lumen scale.
The photometry field is the only physical measuring technology that relies only on human vision.
When set up as a photometer, an integrating sphere may take readings throughout the electromagnetic spectrum’s visible, infrared, and ultraviolet portions. Because it eliminates the effects of indirect lighting and geometric dispersion, it is perfect for comparing the luminous intensities of direct lighting sources.
It may determine the initial beam intensity since the attenuation of collimated, strong sources like lasers is a direct function of the spherical shape.

Reflectance and transmittance of materials
Reflectance and transmittance measurements of diffuse or scattering materials are the most common uses for integrating spheres. It is common practice to take the readings spectrally, ie, as a function of wavelength. However, photopic response detectors may be used to quantify luminous reflectance and transmittance .
Diffuse transmittance is a UV metric used to evaluate the UV protection provided by pharmaceutical containers, sun protective apparel, and automobile coatings. Paints, textiles, and graphic arts are just a few businesses that quantify and regulate colour use in the visible spectrum. The emissivity of thermal control coatings and foils used in spacecraft design is calculated using the total hemispherical reflectance in the infrared.
Reflectance measurements require positioning the sample at the reverse outlet to the entry port. The sample reflects a portion of the incident flux. The integrating sphere measures the combined diffuse and specular hemispherical reflectance.

Uniform sources
The integrating sphere has already been used as a collector for measuring radiant flux, whether the absolute quantity of flux produced by a light source or the relative amount of flux transmitted or reflected by materials.
The open port of an integrating sphere lit from the inside may provide diffuse lighting over a wide region.
Lights are set up within the integrating sphere, all the way around the observation window. Lights are often shielded from the stern. The light output of the globe is proportional to the wattage of the bulb. Using a series of lights allows for a more powerful light source and gradual intensity dimming.
Most integrating spherical light sources employ tungsten halogen bulbs. When using a properly controlled power source, the light from these lamps is uniform throughout the spectrum with no visible emission lines or fluctuations in frequency. When the sphere radiance equation is used in conjunction with the blackbody equations for the spectral radiant flux, It may estimate the spectral radiance of the source.

Other uses of integrating sphere
1. Optical, photometric, and radiometric measurements are all possible using an integrating sphere. An integrating sphere more easily captures light because of its spherical form, which allows for internal light source integration. For each wavelength range, an integrating sphere has a unique coating on the interior of its surface.
If one were to attempt to provide a summary of the many uses of the integrating sphere, one could do so as follows:

2. Examining how much light an item reflects or transmits. Mounting an item at the integrating sphere’s entry port allows the source of light to be placed behind the object, with the reflected light from the object’s coating being gathered by the detector. If the item blocking the light is removed, the output flux of the light source may be measured directly, allowing transmittance to be calculated. Another option is to measure the object’s reflectance by mounting it at a right angle to the port of entry.
3. An integrating sphere’s optimal size depends on the light source’s size; however, bigger spheres often provide better uniformity because of their greater surface.
4. An integrating sphere is a useful accessory to a spectrometer since it can measure the spectrum’s dominant wavelength, chromaticity, and spectral power distribution.
5. Laser diodes and other divergent sources may be integrated using an integrating sphere. You can build it to allow for a broad variety of incidence angles across a vast area, but doing so would degrade the detector’s signal.
6. These instruments, which function similarly to a cosine corrector, provide an excellent method for gauging irradiance. A well-constructed integrating sphere’s output aperture may provide a nearly perfect diffuse and Lambertian light source independent of the viewing angle.
7. Light will come from beyond the integrating sphere under these conditions (2-pi measurement).
8. The glass used in greenhouses and other agricultural applications is a good example of a material for which an integrating sphere is put to good use in the acquisition of precise and comprehensive spectrum information via reflection and transmission measurements.

Conclusion
Cost-effective and flexible, LISUN’s general purpose integrating spheres can be set up in various configurations to suit a wide range of needs. Many different integrating sphere functions, such as achieving uniform illumination, measuring light, and determining reflectance, can be accomplished with a single sphere and its extensive range of accessories.
LISUN’s spheres are a practical option for combining spherical light measurement and light characterization for customers who do not demand exact homogeneity or accurate measurements.
If a sample can’t be measured accurately using a regular detector’s direct light-receiving method, an integrating sphere can help. Semi-transparent or opaque solutions and lenses alter the light path and are ideal candidates for measurement with an integrating sphere.

Lisun Instruments Limited was found by LISUN GROUP in 2003. LISUN quality system has been strictly certified by ISO9001:2015. As a CIE Membership, LISUN products are designed based on CIE, IEC and other international or national standards. All products passed CE certificate and authenticated by the third party lab.
