Accelerated Corrosion Testing: Comparing Salt Spray Test Chambers with Electrochemical Methods

Introduction
When evaluating how well a material or coating will hold up in a harsh environment, accelerated corrosion testing is essential. Salt spray test chambers and electrochemical techniques are two of the most prevalent types of accelerated corrosion testing. The purpose of this essay is to contrast these two strategies by examining their underlying assumptions, strengths, weaknesses, and potential applications.

Professionals in the field of corrosion testing may make more educated choices about which technique is best for them by first familiarizing themselves with the many options available to them and then considering the pros and disadvantages of each.

Salt Spray Test Chambers

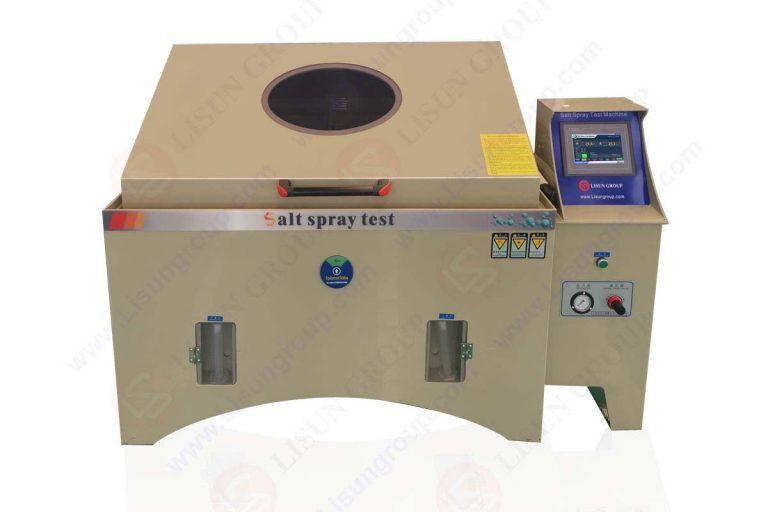

In a salt spray test chamber, also known as a salt fog chamber, test specimens are subjected to a controlled mist of saltwater solution in an effort to replicate the effects of being in an environment that is corrosive. Consider the following, among other essential considerations:

Principles of Salt Spray Testing: Through the use of salt spray testing, it is possible to simulate the corrosive effects of saltwater on materials and coatings. A corrosive environment may be simulated by atomizing a saltwater solution within the testing chamber and then exposing test specimens to the resulting salt-laden mist.

Advantages of Salt Spray Testing: Utilizing a salt spray test chamber provides a number of advantages, some of which include a reduction in the amount of time needed for testing, the maintenance of constant test conditions, and the simplification of deployment. The chambers have a wide range of applications because of their ability to simulate a wide variety of corrosive environments.

Limitations of Salt Spray Testing: Testing with salt spray may be helpful, but it does come with some potential downsides. The major emphasis here is on the endurance of materials when they are being exposed to saltwater mist, which may or may not be reflective of genuine scenarios. The mechanisms of corrosion that occur during salt spray testing are also unique from those that occur in natural and industrial contexts; as a result, additional care is recommended when interpreting the results of the test.

Electrochemical Methods
Corrosion potential and corrosion current density are two electrochemical parameters that may be measured using electrochemical techniques to evaluate corrosion behavior. Some important things to think about are:

Principles of Electrochemical Methods: Electrochemical methods investigate the electrochemical processes occurring at the metal-electrolyte interface in order to determine the corrosion rate and behavior of materials. This is done so that the results may be interpreted. Numerous techniques, including as cyclic voltammetry, electrochemical impedance spectroscopy, and potentiodynamic polarization, are often used in this process.

Advantages of Electrochemical Methods: Electrochemical methods make it possible to, among other things, investigate localized corrosion events and evaluate the effectiveness of measures taken to avoid corrosion. These capabilities are in addition to the fact that these techniques may provide quantitative data on corrosion rates. These approaches make it feasible to conduct in-situ monitoring, and the findings may provide information on the mechanisms and kinetics of the corrosion processes that are taking place.

Limitations of Electrochemical Methods: The use of electrochemical methods is not without its potential downsides. It’s possible that they won’t be able to replicate the subtle behavior of corrosion found in nature. Interactions between the materials, coatings, and the environment may have an effect on the outcomes of the tests. It is essential to correctly prepare samples, choose electrodes, and carefully examine data in order to get trustworthy results. LISUN provides one of the best salt spray test chambers.

Application Considerations
There are a number of things to think about while picking between electrochemical techniques and salt spray test chambers:

Test Objectives: The goals of the corrosion testing will determine the approach used. Salt spray testing might be useful if determining how well a material holds up in a salty environment is a top priority. Electrochemical approaches are preferable for examining localized corrosion behavior or measuring corrosion rates.

Environmental Relevance: Take into consideration the corrosive compounds as well as the location in which you want to employ it. The results of salt spray experiments might be enlightening if the circumstances that exist in the surrounding environment are extremely comparable to those that can be found in a region where salt is prevalent. Electrochemical methods may be altered to depict the corrosion processes of specific regions or of certain environmental conditions.

Standards and Regulations: Think about the policies and procedures that are specific to the industry that you work in. The processes for testing corrosion may need to conform to the requirements of a certain industry. For example, the usage of salt spray testing is often adhered to by car manufacturers since it is required by the standards that govern the automotive industry.

Test Duration: Take some time to consider how long you would want the tests to last. The results of salt spray testing may be received rather rapidly in the majority of instances. Electrochemical methods would need to be evaluated for much longer periods of time in order to discover significant corrosion effects; nevertheless, these methods could yield data that is more accurate and comprehensive.

Sample Size and Geometry: It is essential to take into mind the dimensions, shapes, and levels of complexity of the test specimens. Electrochemical approaches provide more versatility than salt spray test chambers because they may evaluate a greater variety of sample sizes and geometries. These techniques can evaluate everything from microscopic coupons to intricate structures.

Cost and Equipment Requirements: Consider the amount of time and resources that will be required by each strategy. Corrosion-resistant materials, salt solutions, and temperature control systems are required in order to carry out testing inside of a salt spray chamber. In order to carry out an electrochemical experiment, one has to have access to specialist equipment, as well as electrodes and devices that collect data. Consider both the initial investment as well as the ongoing expenses associated with maintaining the business.

Expertise and Training: Consider the extent of your expertise that is required of you in order to administer the tests. Comparatively simple procedures are often required for salt spray testing, in contrast to electrochemical methods, which may need a deeper understanding of electrochemistry principles and the operation of electrochemistry instruments. Results that are accurate and trustworthy need personnel who have received training and have professional experience.

Combined Approach and Complementary Benefits
It is feasible to do comprehensive corrosion testing by combining salt spray test chambers with electrochemical methods. This will provide for the most accurate results available. Salt spray testing may be used for fast screening and evaluation of a material’s performance, and then electrochemical methods can be used for further in-depth research and confirmation of the results.

This can provide a more comprehensive picture of the material’s performance. By combining them, not only are we able to make advantage of the benefits that each approach offers, but we are also able to obtain insight into processes such as resistance to corrosion, durability, and other factors that would have been overlooked otherwise.

Conclusion
By using electrochemical technology and salt spray test chambers, accelerated corrosion testing may be completed with much less effort. Before choosing on a certain technique, there are a number of factors that need to be taken into account.

These factors include the objectives of the test, the environmental significance of the sample, the sample size, the cost, and the expertise. To choose the approach that will provide the most accurate results when testing for corrosion, one must have an awareness of the principles, applications, and concerns associated with each technique.

It’s possible that combining the two methodologies will create a more accurate picture of how a material will behave in a given set of conditions. By employing informed judgements and the necessary testing techniques, industries are able to ensure the quality, durability, and performance of the materials and products they produce in corrosive environments.
