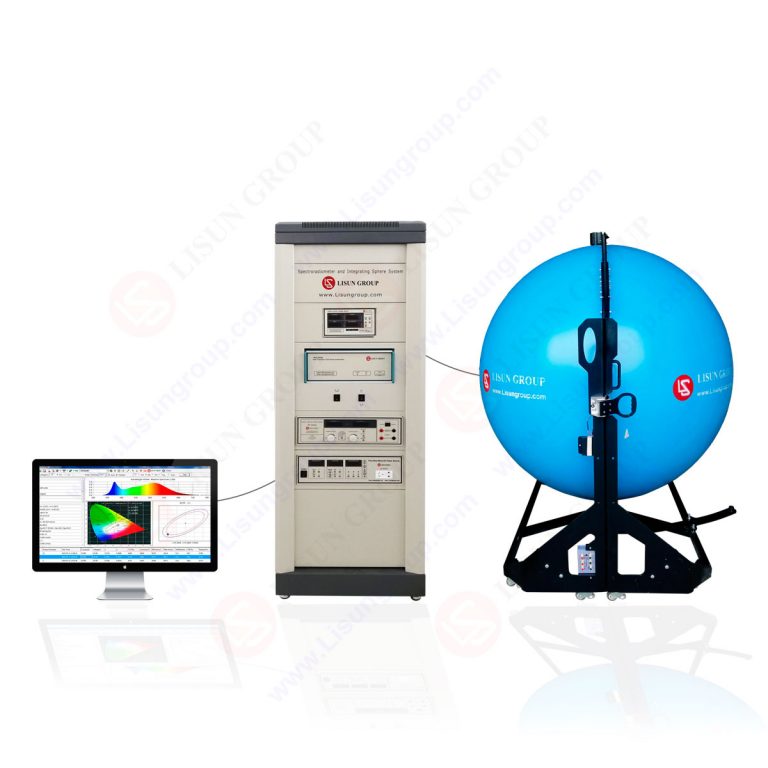

Spectrophotometer & Integrating Sphere Test System

Product No: LPCE-1

Get a Quote

Your email address will not be published. Required fields are marked *

  • Description
  • Download
  • This Test System is suitable for photometric and colorimetric measurement of luminaries such as Energy-saving lamps, Fluorescent lamps, HID lamps (high voltage sodium lamps and high voltage mercury lamps), CCFL and LED. The measured data meets the requirements of CIE and IES LM-79 for the measurement of photometry and colorimetry.

    System Configuration:
    Quick-Scan Spectrophotometer Colorimeter (LMS-5000), Optical Fiber (CFO-1.2M), Digital Power Meter (LS2012 or LS2010), DC Power Supply (DC Series), AC Power Source (LSP-500VAR or LSP-1KVAR ), Integrating Sphere (IS-1.5MA or IS-2.0MA), Standard Lamp Source (SLS-50W), CASE-19IN 19Inch Cabinet

    Spectrophotometer integrating sphere system measures photometry, colorimetry and electricity:
    • Color parameters: chromaticity coordinate, CCT (correlated color temperature), CRI (color rending index), color difference, peak wavelength;
    • Photometry parameters: luminous flux, luminous power, luminous flux efficiency;
    • Electrical parameters: voltage, current, power, power factor

    Specification:
    • High accuracy and high speed test less than 10 seconds
    • Spectral Range Wavelength: 380nm ~ 800nm (Option: 200nm ~ 800nm UV-VIS)
    • Spectral Wavelength Accuracy: ±0.2nm, Wavelength Reproducibility: ±0.1nm
    • Sample Scanning Steps: 5nm (Optional: 1nm)
    • Accuracy of Chromaticity Coordinate (Δx, Δy): ±0.0003 (based on standard illuminate A)
    • Correlated Color Temperature CCT: 1,000K~100,000K, CCT Accuracy: ±0.3%
    • Color Rendering Index Range: 0~100.0, Accuracy: ±0.3% (based on standard illuminate A)
    • Photometry linearity: ±0.3%, Photometer detector: Class A
    • Luminous Flux: 0.01lm~1,999,900lm (Equipped with right size of integrating sphere)
    • Environment temperature measure range: -10°C~100°C, Accuracy: ±0.1°
    • Communicate with Digital Power Meter to display the Voltage, Current, Power and Power factor
    • Connect with PC via USB, English version software can be run under WinXP, Win7 and Win8

    Please visit this page to view the latest version LPCE-2 High Precision Spectroradiometr Integrating Sphere System.

  • SLS-100W Calibrate Certificate IES LM-79-19 English Version Standard Free Download IES LM-79-19 Spanish Version Standard Free Download
