Technical Characteristics and Automotive Interior Flame Retardant Testing Application Analysis of LISUN Flammability Test Apparatus

Abstract:
Flammability Test Apparatus is a core testing instrument for evaluating the combustion performance of materials, and plays an irreplaceable role in the field of automotive interior safety. The flame retardant performance of automotive interior materials is directly related to the escape probability of occupants in vehicle fire accidents, so accurate combustion performance testing has become a key part of industry quality control. This paper takes the LISUN ZRS-4H Flammability Test Apparatus as the research object, analyzes its core technical structure designed specifically for automotive interior materials, precise test control capability and multi-scenario testing adaptability. It focuses on the technical performance of the equipment in measuring material burning rate, flame spread length and self-extinguishing performance. Combined with the international and domestic testing standards it meets, it demonstrates its application value in automotive interior flame retardant testing, providing a reference for the automotive industry and related testing institutions to select professional flammability testing equipment.

1. Introduction

Automotive interiors are composed of hundreds of polymer materials such as seat fabrics, plastic parts and foamed sponges. Most of these materials are flammable. Once exposed to fire, they tend to burn rapidly and produce toxic smoke, which becomes an important factor that aggravates hazards in vehicle fire accidents. Statistical data show that in fires caused by vehicle electrical faults, every 0.1 mm/s reduction in the burning rate of interior materials can improve the escape success rate of occupants by 12%. In this context, the Flammability Test Apparatus, as a professional device for simulating flame environments and quantitatively evaluating the flame retardant performance of materials, has become an indispensable tool for automobile manufacturers, interior component suppliers and third-party testing institutions.

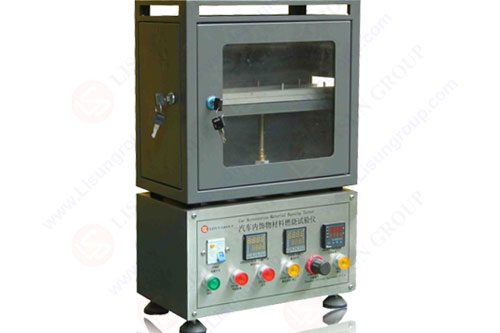

The ZRS-4H Flammability Test Apparatus developed by LISUN is a special equipment designed for the flame retardant performance testing of automotive interior materials. It overcomes the problems of traditional combustion testing equipment such as low control accuracy, large environmental interference and poor repeatability of test data. By precisely controlling the flame height, combustion time and sample placement angle, it can efficiently measure the burning rate, flame spread length and self-extinguishing performance of materials. At the same time, it is compatible with many international and domestic automotive interior combustion testing standards, making it a core equipment for automotive interior flame retardant safety testing, providing a scientific testing basis for reducing vehicle fire risks and ensuring the safety of drivers and passengers.

2. Core Technical Characteristics of ZRS-4H Flammability Test Apparatus

2.1 Integrated Structure and Precise Flame Control System

The ZRS-4H Flammability Test Apparatus adopts an integrated combustion chamber design with dimensions of 1000*500*800 mm. The interior integrates an imported flame control module and a high-precision timing system, realizing the full-automatic operation of “flame application – timing – combustion state judgment”, which effectively avoids errors caused by manual operation and improves test efficiency and data accuracy. The ignition source of the equipment is a propane gas burner (premixed flame), with a nozzle diameter precisely controlled at 9.5±0.5 mm. The flame height can be double-calibrated through a flow meter and a scale to ensure a standard flame of 20±2 mm, fully meeting the requirements of various automotive interior combustion testing standards for ignition sources.

In terms of flame temperature control, the equipment can achieve a temperature of ≥820 °C at 20 mm from the nozzle tip, and maintain stable temperature within 1 minute, close to the heat intensity of a real fire environment, solving the problem of distorted test results caused by unstable flame temperature and insufficient heat intensity of traditional Flammability Test Apparatus. At the same time, the combustion time can be continuously adjusted within the range of 0~999.9 s, and the default 15 s flame application time is highly consistent with the requirements of mainstream testing standards. It supports automatic ignition and extinguishing to meet the personalized testing needs of different interior materials.

2.2 Standardized Sample Fixing and Multi-dimensional Combustion Performance Measurement

The ZRS-4H Flammability Test Apparatus features a standardized sample testing system designed according to the specifications of automotive interior materials. Samples are fixed by metal clamps, and the placement angle can be accurately adjusted. The default fixed angle of 30° fully meets the requirements of international and domestic automotive interior combustion testing standards, and can also be flexibly adjusted according to different test requirements. The equipment requires sample dimensions of 356±2 mm in length, 100±2 mm in width, and ≤13 mm in thickness, suitable for most automotive interior materials such as seat fabrics, instrument panel skins, and automotive plastic parts. Testing can be completed without additional cutting, reducing the workload of sample preparation.

To achieve multi-dimensional and accurate measurement of material combustion performance, the equipment is equipped with a scale with an accuracy of 1 mm, which can manually or automatically record the flame spread distance and time, and quickly calculate the material burning rate. At the same time, it can accurately determine the “self-extinguishing time” and “flame spread length” of materials. By placing absorbent cotton 300 mm below the sample, it can detect whether the material produces molten droplets during combustion and ignite the absorbent cotton, fully covering the core testing indicators of automotive interior material flame retardant performance, providing complete data support for material flame retardant grade judgment.

2.3 Anti-interference Environment Control and User-friendly Testing Design

Ambient air flow interference is an important factor affecting the accuracy of test data of Flammability Test Apparatus. The ZRS-4H is equipped with a professional windproof structure inside the combustion chamber, which can effectively isolate the interference of external air flow on the flame state and combustion process, ensuring that the test is carried out in a stable environment. At the same time, it is equipped with a smoke exhaust port and can be connected to an external smoke exhaust pipe to discharge toxic smoke generated during combustion in a timely manner, which not only protects the personal safety of testers, but also avoids the accumulation of smoke in the combustion chamber affecting test observation.

In terms of testing operation and observation, the equipment is equipped with a high-temperature resistant glass observation window (≥300*400 mm) on the front of the combustion chamber, which can clearly observe the whole combustion process of materials in real time, facilitating testers to record the combustion state. At the same time, a combustion residue collection tank is provided to collect and analyze residues after combustion, providing a basis for subsequent material formula optimization. The power supply of the equipment is AC 230V±10%, 50/60 Hz, which can adapt to power grid standards in different regions without additional power supply modification, suitable for testing scenarios in various laboratories and production sites.

3. Core Testing Capability and Standard Adaptability of ZRS-4H Flammability Test Apparatus

The core testing capability of the ZRS-4H Flammability Test Apparatus lies in the accurate quantification of key combustion indicators of automotive interior materials. Its test results can be directly used as a scientific basis for judging the flame retardant performance of materials. At the same time, the equipment is fully compatible with a number of international and domestic automotive interior combustion testing standards, and the test data are authoritative and universal, meeting the testing and certification needs of different regions and industries.

The equipment can accurately measure the burning rate of materials under 15 s flame action, and judge whether it meets the core requirement of burning rate ≤100 mm/min in GB 8410-2006 Combustion characteristics of automotive interior materials. It can also detect the self-extinguishing time of materials after flame removal, ensuring that materials meet the requirements of self-extinguishing within 30 s and no continuous combustion in FMVSS 302 Federal Motor Vehicle Safety Standard No. 302: Flammability of Interior Materials. In addition, the equipment complies with international standards such as ISO 3795, ASTM D5132 and BS 6853, and can perform flame retardant testing on interior materials in rail transit, special vehicles and other fields, realizing the “one machine for multiple standards” testing demand and greatly reducing equipment investment costs for enterprises and testing institutions.

The table below shows the core technical parameters of the ZRS-4H Flammability Test Apparatus, directly reflecting its testing capability and design features:

Technical Item	Specific Parameter Index	Design Advantage & Testing Value
Combustion Chamber Size (L*W*H)	1000*500*800 mm	Integrated structure with built-in wind protection to avoid environmental interference
Sample Fixing	Metal clamp, angle adjustable, default 30°	Meets standard requirements and adapts to different testing scenarios
Flame Height	20±2 mm, dual calibration by flow meter + scale	Stable flame to ensure repeatability of test data
Flame Temperature	≥820 °C at 20 mm from nozzle, stable within 1 min	Close to real fire environment, improving test authenticity
Combustion Time Control	0~999.9 s adjustable, default 15 s, auto ignition & extinguishing	Adapts to mainstream standards and realizes full-automatic testing
Burning Rate Measurement	Scale accuracy 1 mm, manual / automatic recording & calculation	Accurately quantifies burning rate as the basis for flame retardant grading
Power Supply	AC 230V±10%, 50/60 Hz	Strong power adaptability for various testing scenarios

4. Industry Application Scenarios of ZRS-4H Flammability Test Apparatus

4.1 Quality Inspection in Automobile Manufacturers and Interior Parts Industry

In the automotive OEM and interior parts industry, the ZRS-4H Flammability Test Apparatus is the core equipment for incoming inspection and finished product quality testing of interior materials. For seat systems, it can test the combustion performance of PU leather, fabric, seat foam and other materials, verify whether their burning rate meets national standards, and prevent seats from becoming ignition sources in vehicle fires. For plastic parts such as instrument panels, door trim panels and central control panels, it can determine their flame spread length and self-extinguishing performance, ensuring that such large-area interior materials do not spread rapidly after encountering fire, buying escape time for drivers and passengers.

Mainstream automakers such as BYD, Tesla and Volkswagen apply this equipment to random inspection before parts warehousing. Through the combustion performance testing of interior materials, unqualified materials are prevented from entering the production line, ensuring the flame retardant safety of the whole vehicle interior from the source, and ensuring that the whole vehicle products meet national and industrial safety standards.

4.2 Formula Optimization and R&D of Automotive Interior Material Suppliers

For automotive interior material suppliers, the ZRS-4H Flammability Test Apparatus is not only a product quality testing device, but also an important tool for material formula optimization and new product R&D. For interior fabric and leather manufacturers, the equipment can test the combustion performance of materials under different flame-retardant coating formulas and different flame retardant addition ratios, helping manufacturers optimize formula design and ensure that the fabric burning rate meets the technical requirements of automakers. For plastic and foam material manufacturers, it can test the combustion characteristics of PP/ABS alloy plastic, EVA foam and other materials, and select high-quality materials that do not produce a large amount of toxic smoke and molten droplets during combustion, improving product market competitiveness.

Through repeated testing and data comparison with this equipment, material suppliers can quickly find a balance between flame retardant performance, product texture and cost, and achieve product upgrading on the premise of ensuring material flame retardant safety.

4.3 Flame Retardant Testing in Rail Transit and Special Vehicles

The application scope of the ZRS-4H Flammability Test Apparatus is not limited to the traditional automotive industry. It can also be used for flame retardant testing of interior materials in rail transit and special vehicles according to standards such as BS 6853 and DIN 75200. For rail vehicles such as subways and high-speed rails, it can test the flame retardant performance of seat fabrics, interior decorative panels and floor coverings, verify the flame retardant grade of materials under specific flame conditions, and meet the extreme safety requirements of high passenger capacity. For special vehicles such as new energy vehicles, ambulances and RVs, it can focus on testing the combustion resistance of interior materials in special scenarios such as battery thermal runaway and emergency rescue, ensuring low burning rate and good self-extinguishing performance to reduce fire risks.

4.4 Compliance Certification Testing in Third-party Testing Institutions

Third-party testing institutions such as SGS, CQC and TÜV are important users of Flammability Test Apparatus. With its full compatibility with international standards such as ISO 3795 and ASTM D5132, the ZRS-4H has become the core equipment for third-party testing institutions to provide compliance testing reports for automotive interior enterprises. Testing with this equipment can help automotive interior enterprises pass authoritative certifications at home and abroad such as CCC, EPA and ECE, helping products enter domestic and international markets smoothly and breaking trade barriers.

At the same time, the accurate and repeatable test data of the equipment provides solid technical support for the reports issued by testing institutions, improving the authority and credibility of test reports.

5. Conclusion and Prospect

With precise flame control, standardized sample testing, anti-interference environment design and comprehensive standard adaptability, the LISUN ZRS-4H Flammability Test Apparatus has become a professional equipment for flame retardant performance testing of automotive interior materials. Its high-precision performance in the detection of core indicators such as burning rate, flame spread length and self-extinguishing performance provides a scientific technical means for interior safety control in the automotive industry. It is widely used in automotive OEMs, material suppliers, rail transit and third-party testing institutions, becoming an important guarantee for reducing vehicle fire risks and ensuring the safety of drivers and passengers.

With the continuous development of the automotive industry and the popularization of new energy vehicles, the fire safety requirements for vehicle interiors have been further improved. At the same time, flame retardant standards for automotive interior materials around the world are constantly upgrading. For example, the new Chinese national standard has raised the test temperature to 850 °C, which is closer to the real fire environment. Against this background, the Flammability Test Apparatus will develop towards higher control accuracy, more intelligent testing process and wider standard compatibility.

The automatic testing and accurate data collection realized by the LISUN ZRS-4H Flammability Test Apparatus are in line with the digital development needs of the modern testing industry. In the future, with the integration of IoT and artificial intelligence technologies, the Flammability Test Apparatus will further realize automatic analysis of test data, intelligent judgment of flame retardant grades and automatic generation of test reports, providing a more efficient and intelligent solution for automotive interior flame retardant testing. As a core tool for automotive interior safety testing, the Flammability Test Apparatus represented by the ZRS-4H will play an increasingly important role in promoting the high-quality development of the automotive industry and protecting the lives of drivers and passengers.
