Integrated Research and Multi-scenario Application Analysis of Automatic Electrical Safety Tester

Abstract: Safety testing of electrical products is a critical step to ensure product quality and operational safety. Traditional testing methods require multiple separate instruments, leading to cumbersome processes and low efficiency. The LS9956 Automatic Electrical Safety Tester developed by LISUN is an integrated electrical safety inspection system that realizes the one‑stop integration of five core testing functions: AC/DC Withstanding Voltage, Insulation Resistance (IR), Leakage Current (LLC), Grounding Resistance (GR), and Power test. It greatly simplifies the testing workflow and improves both efficiency and accuracy. Based on the LS9956 Automatic Electrical Safety Tester, this paper analyzes its integrated design advantages, core technical parameters and functional characteristics, and expounds its application value in electrical product testing in various industries, providing a reference for the selection and application of electrical safety testing equipment.

1. Introduction

In the R&D, factory inspection and quality traceability of lighting fixtures, household appliances, industrial motors and other electrical products, electrical safety testing is an indispensable key procedure, which is directly related to whether products meet national and industrial standards, as well as personal and property safety during end use. Traditional electrical safety testing requires multiple stand-alone instruments such as withstanding voltage testers, insulation resistance testers and leakage current testers, which not only occupy a lot of space in laboratories and production lines, but also have disadvantages such as fragmented testing processes, difficult data integration and large manual operation errors, making it difficult to meet the efficient testing requirements of modern production.

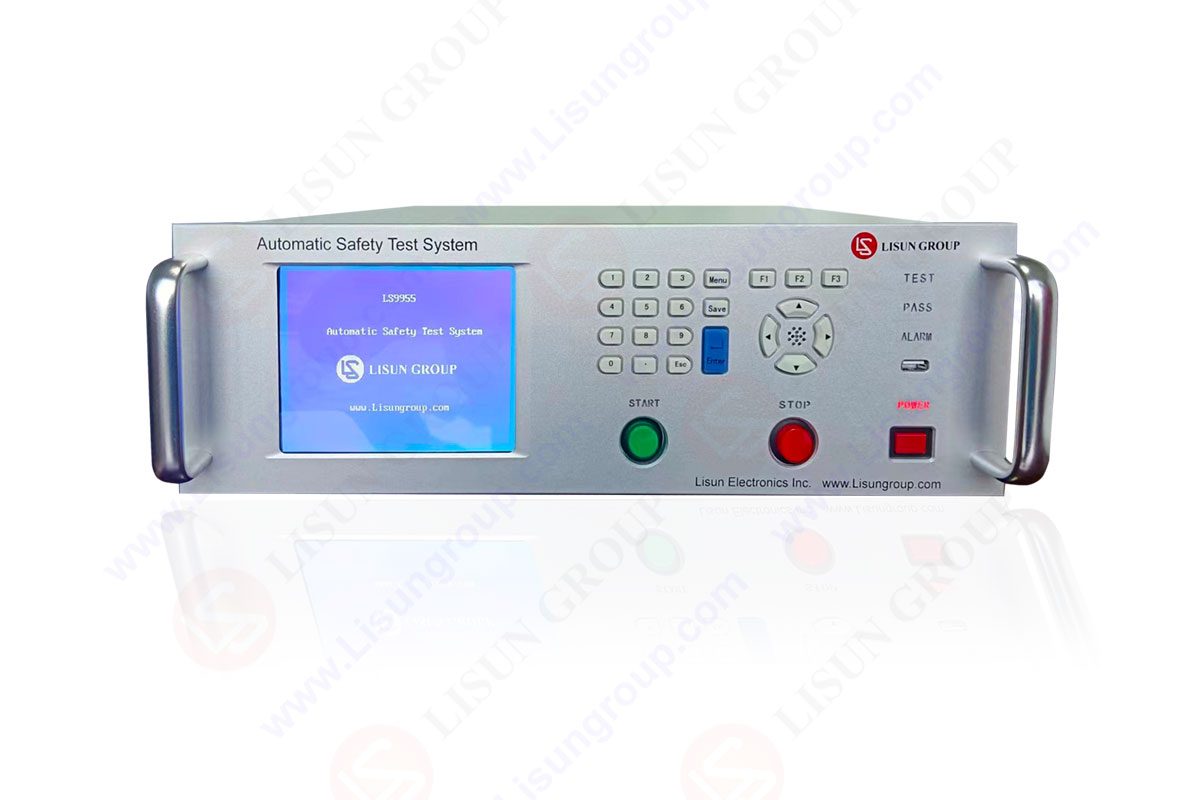

To solve these industry pain points, LISUN has focused on the actual needs of electrical product safety testing and developed the LS9955/LS9956 series Automatic Electrical Safety Testers. Among them, the LS9956 Automatic Electrical Safety Tester, as a full-function model, integrates five core testing functions including AC/DC Withstanding Voltage, Insulation Resistance (IR), Leakage Current (LLC), Grounding Resistance (GR) and Power (POWER), creating an integrated solution of “one instrument completes all tests”. The instrument complies with many authoritative domestic and international standards such as GB 4706.1-2024 and IEC 60335-1:2023, and is widely used in production line batch testing, R&D laboratory formula optimization, third-party testing institution compliance testing and other scenarios. It has become a core instrument for electrical product safety testing, promoting the transformation of the electrical testing industry from “decentralized testing” to “integrated and automated testing”.

2. Core Advantages of Integrated Design of the Automatic Electrical Safety Tester

The core R&D concept of the LS9956 Automatic Electrical Safety Tester is function integration, intelligent operation and standard compatibility. Through the high integration of hardware modules and programmable control of the software system, the testing work originally completed by five stand-alone instruments is condensed into one instrument, which not only retains the high precision of a single test function, but also realizes the coordinated linkage of each function. Compared with the traditional testing mode, it has multiple core advantages, which is also the key reason why the Automatic Electrical Safety Tester can replace the combination of single instruments and become the mainstream in the industry.

2.1 One‑stop testing greatly simplifies the testing process

The LS9956 Automatic Electrical Safety Tester has built-in independent modules for AC/DC Withstanding Voltage Test, Insulation Resistance Test, Leakage Current Test, Grounding Resistance Test and Power Test. Each module is uniformly dispatched by the central control system. During the testing process, there is no need to manually change instruments or reconnect the sample under test. Only one wiring is needed to complete the continuous testing of five core indicators. For example, in the testing of lighting fixtures, a continuous process of “Insulation Resistance Test → AC/DC Withstanding Voltage Test → Power Test” can be directly set, with fully automatic operation throughout the process. Compared with the traditional single instrument testing mode, the testing time is shortened by more than 60%, greatly reducing labor operation costs and improving testing efficiency.

2.2 Coordination of software and hardware ensures accuracy and stability

At the hardware level, each testing module of the LS9956 Automatic Electrical Safety Tester adopts high-precision sensors and independent circuit control systems, effectively avoiding signal interference between modules and ensuring that the testing accuracy of each testing indicator meets high industrial standards. At the same time, it is equipped with a fast discharge module and electric safety barrier detection function, supporting 50Hz/60Hz dual-frequency testing, adapting to electrical product testing standards in different countries and regions, and further improving the adaptability and testing stability of the instrument.

At the software level, the instrument is equipped with a programmable testing system and a high-definition LCD display, which can display the set parameters and test results in real time on the same interface without repeatedly switching the instrument interface. It supports setting PASS/FAIL limits. If the testing indicators of the sample under test are unqualified, it will immediately trigger optical and sound dual alarms, and automatically record unqualified data, facilitating subsequent quality analysis and traceability, solving the problems of error-prone and untimely manual data recording in traditional testing.

2.3 Compact integration saves space and supporting costs

Compared with the combination of traditional multiple stand-alone instruments, the LS9956 Automatic Electrical Safety Tester adopts an integrated body design with a compact size, greatly saving the space occupied by laboratories and production lines. At the same time, the instrument only needs one wiring and one calibration to complete all tests, reducing the investment in supporting consumables such as test lines and calibration instruments, and lowering the overall use and maintenance costs of the instrument, especially suitable for the testing needs of small and medium-sized enterprise production lines and R&D laboratories.

3. Core Technical Parameters of LISUN LS9956 Automatic Electrical Safety Tester

The five core testing functions of the LS9956 Automatic Electrical Safety Tester feature wide measuring ranges and high precision. Its technical parameters cover the testing requirements of mainstream electrical products such as lighting, household appliances and industrial motors, and are also the basis for its accurate and reliable testing. The detailed technical parameters of each core function of the instrument are shown in Table 1, which intuitively reflects its testing capability and performance advantages.

Table 1 Core Technical Parameters of LISUN LS9956 Automatic Electrical Safety Tester

Test Item	Measuring Range	Accuracy	Key Supporting Features
AC/DC Withstanding Voltage Test	Voltage: 100~4000V; AC Current: 0.10~20.00mA; DC Current: 0.10~12.00mA	±(5%+3V)	50Hz/60Hz, fast discharge
Insulation Resistance Test (IR)	Resistance: 1.00~2000MΩ; Test Voltage: DC100~1000V	5% + 0.5MΩ	High resistance identification
Leakage Current Test (LLC)	0.10~20mA	±(0.3%+5uA)	Test voltage: AC10.0~300.0V
Grounding Resistance Test (GR)	0~600mΩ; Output Current: AC1.00~30.00A	±(5%+2mΩ)	Stable high current, auto compensation
Power Test (POWER)	Voltage:10~300V; Current:0.010~20.00A; Power:1.0~6000.0W	Class 0.5	PF:0.2~1.0, time:0~999.9s

It can be seen from Table 1 that each test function of the LS9956 Automatic Electrical Safety Tester has a wide measuring range coverage capability. For example, the voltage range of the AC/DC Withstanding Voltage Test reaches 100~4000V, which can adapt to the testing of all kinds of electrical products from low-voltage household appliances to medium-voltage industrial motors. At the same time, the testing accuracy is in the leading level in the industry, among which the accuracy of the Leakage Current Test reaches ±(0.3%+5uA), which can accurately capture the slight leakage current changes of electrical products and find potential safety hazards in a timely manner.

In addition, the Power Test is the core function that distinguishes the LS9956 Automatic Electrical Safety Tester from the LS9955. The accuracy of this function reaches Class 0.5, which can detect the voltage, current, power and power factor of the product at the same time. It can not only complete electrical safety testing, but also evaluate the energy consumption and working efficiency of the product, realizing the dual testing of “safety performance + service performance”, providing more comprehensive data support for product R&D optimization and quality control.

At the same time, the LS9956 Automatic Electrical Safety Tester also has 50 groups of memories, each of which can set 8 test steps, supporting custom test processes. It can be equipped with an optional remote software control function, which can realize remote computer operation and data collection, adapting to the construction of an automated laboratory testing system and further improving the intelligent level of the instrument.

4. Multi-scenario Application Value of the Automatic Electrical Safety Tester

With the characteristics of integration, intelligence and standardization, as well as wide range and high precision testing capability, the LS9956 Automatic Electrical Safety Tester has become a core instrument for the full-life-cycle testing of electrical products. Its application scenarios cover the whole process of production, R&D and testing of electrical products, and plays an important role in lighting, household appliances, industrial manufacturing, third-party testing and other industries, fully reflecting the versatility and practicability of the Automatic Electrical Safety Tester in the field of electrical safety testing.

4.1 Production line factory batch testing to ensure products enter the market in compliance

In the production lines of lighting fixtures, household appliances, small motors and other electrical products, the LS9956 Automatic Electrical Safety Tester can realize rapid batch testing of products. Through the preset standardized testing process, the instrument can conduct full electrical safety testing on each finished product. The sound and light alarm function can quickly screen out unqualified products to prevent unqualified products from entering the market. At the same time, the instrument can automatically record all testing data and form a product quality testing report to realize the traceability of product testing data, providing data support for enterprise production quality control. For example, in the LED lamp production line, the instrument can complete the full testing of insulation resistance, withstanding voltage performance, power parameters and other items of a lamp in a few minutes, meeting the efficient testing needs of the production line and ensuring that the factory products meet the requirements of the national GB 7000-2023 standard.

4.2 R&D laboratory product optimization to accelerate the new product R&D process

In the R&D laboratory of electrical products, the LS9956 Automatic Electrical Safety Tester can be used to test the electrical safety performance of products with different formulas and structures. R&D personnel can quickly select the optimal product design scheme by comparing the testing data of different samples, greatly shortening the new product R&D cycle. For example, in the R&D of new waterproof household appliances, R&D personnel can test the insulation resistance and leakage current of samples with different waterproof materials and circuit designs through this instrument to judge the waterproof and insulation performance of the product. At the same time, combined with the power testing data of the product, the circuit design of the product can be optimized to achieve the dual improvement of “safety performance” and “energy-saving performance”.

4.3 Third-party testing institution compliance testing to improve testing authority

As an important platform for electrical product quality certification, third-party testing institutions have strict requirements on the standard compatibility and testing accuracy of testing instruments. The LS9956 Automatic Electrical Safety Tester complies with many authoritative domestic and international standards such as GB 4706.1-2024, IEC 60335-1:2023 and UL 60335:2022, and can undertake compliance testing business of various products such as lighting, household appliances and medical electrical equipment. Its integrated design can complete multiple indicator tests at the same time, improving the work efficiency of testing institutions, and the high-precision testing data provides reliable technical support for testing reports, further enhancing the authority and recognition of testing results.

4.4 Industrial manufacturing field equipment inspection to ensure production safety

In the field of industrial manufacturing, long-term operation of industrial electrical equipment such as motors and power distribution cabinets is prone to problems such as insulation aging and poor grounding, causing production safety accidents. The LS9956 Automatic Electrical Safety Tester can be used for daily inspection and maintenance testing of industrial electrical equipment. By quickly testing indicators such as insulation resistance, grounding resistance and leakage current of the equipment, potential safety hazards of the equipment can be found in a timely manner, providing a basis for equipment maintenance and replacement, and ensuring the safe and stable operation of industrial production.

5. Conclusion and Development Trend

As an integrated electrical safety testing instrument, the LISUN LS9956 Automatic Electrical Safety Tester takes “one‑stop completion of five core testing functions” as its core advantage, solving industry pain points such as cumbersome process, low efficiency and high cost in traditional electrical safety testing. Its wide range, high precision testing capability, as well as intelligent and compatible operating characteristics, make it the preferred instrument for electrical safety testing in lighting, household appliances, industrial manufacturing and other industries. The R&D and application of the Automatic Electrical Safety Tester not only promote the technological upgrading of the electrical testing industry, but also provide reliable technical support for the quality control and safe use of electrical products, highlighting the core value of integrated testing instruments in modern production and testing.

With the development of electrical products towards intelligence, miniaturization and outdoor application, as well as the rapid rise of emerging fields such as new energy, smart home and vehicle electrical appliances, the market’s requirements for electrical safety testing instruments are constantly improving. In the future, the Automatic Electrical Safety Tester will develop towards higher intelligence, more comprehensive function integration and more accurate micro-quantity testing: first, strengthen the integration of Internet of Things technology to realize the seamless connection between instruments and laboratory management systems, and create a fully automated testing system; second, integrate more testing functions such as surge test and electrostatic test to achieve more comprehensive electrical safety testing; third, improve the testing accuracy of micro-current and micro-resistance to adapt to the testing needs of miniaturized and high-precision electrical products.

As a professional R&D enterprise of electrical testing instruments, LISUN’s LS9956 Automatic Electrical Safety Tester has become a benchmark product in the industry with mature technology, rich application experience and perfect after-sales system. In the future, with the continuous progress of testing technology, integrated and intelligent Automatic Electrical Safety Testers will play an important role in more emerging electrical fields, escorting the full-life-cycle quality control of electrical products.
