Environmental Simulation and Reliability Test Technology of Salt Spray Test

Introduction

Under complicated conditions such as marine climate, industrial pollution and humid coastal environment, metal materials, coatings and electronic parts are prone to salt spray corrosion, which results in decreased structural strength, poor electrical contact, insulation failure and surface damage, severely endangering product safety, durability and service life. Capable of reproducing long-term natural corrosion effect in short period via standardized environmental simulation, salt spray test laboratory shortens testing cycle significantly and becomes essential infrastructure for industrial quality control and reliability engineering.

Conventional equipment used in salt spray test laboratory commonly suffers from cabinet leakage, insufficient temperature control accuracy, unstable spraying performance and low intelligence, failing to meet strict requirements specified in GB/T 10125, ASTM B117 and ISO 9227. Specially developed for salt spray test laboratory, LISUN YWX/Q-010 salt spray chamber adopts integrally molded structure with imported corrosion-resistant PP material, matched with high-precision temperature controller and automatic spraying system. Equipped with three mainstream test modes and comprehensive intelligent protection functions, the unit builds standard environment inside salt spray test laboratory and is widely used in anti-corrosion inspection for electronics, hardware, coating, home appliance and new energy industries.

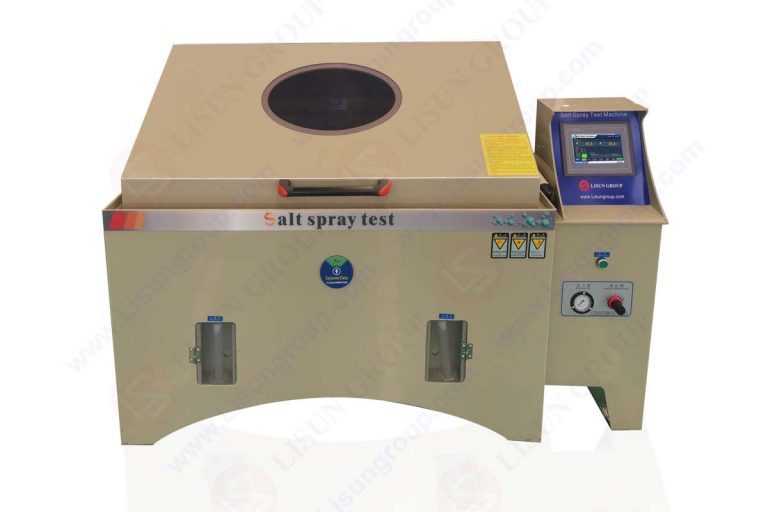

Figure: Salt mist test chamber

Functional Orientation and Core Requirements of Salt Spray Test Laboratory

Salt spray test laboratory is a dedicated inspection space mainly composed of salt spray chamber together with auxiliary facilities for air supply, water feeding, exhaust and monitoring to precisely simulate corrosive salt fog atmosphere. Its core functions are listed as below:
• Accelerated assessment on anti-corrosion performance of test pieces to find out protection defects;
• Comparison on corrosion resistance among different plating, coating and base materials to assist R&D material selection;
• Certification testing in accordance with domestic and international standards to guarantee legal market access of products;
• Simulation of coastal, humid and industrial polluted working conditions to verify environmental adaptability of finished goods.

Strict requirements are put forward for salt spray chamber as key device of salt spray test laboratory: corrosion-proof and leakproof cabinet structure, stable controllability of temperature and salt fog sedimentation rate, compatibility with multiple standard test modes, long-time continuous running capacity and intelligent alarm system to ensure repeatable and traceable test results.

Core Equipment of Salt Spray Test Laboratory: Technical Features of LISUN YWX/Q-010 Salt Spray Chamber

Cabinet Structure: Integral PP Molding for Long-term Operation in Salt Spray Test Laboratory
LISUN YWX/Q-010 salt spray chamber cabinet is integrally formed with imported corrosion-resistant PP sheet without welding seam, fundamentally avoiding liquid leakage and corrosive medium spillage to satisfy tightness and durability demand of salt spray test laboratory. PP material features outstanding acid, alkali and salt fog resistance without rust, deformation or embrittlement under long-term high-concentration salt mist exposure, achieving longer service life than traditional metal cabinet. Equipped with stainless steel gas spring for lid opening, the chamber facilitates sample loading and unloading by operators in salt spray test laboratory and improves overall testing efficiency.

Temperature Control System: Precise Thermal Regulation for Stable Laboratory Environment
The unit is equipped with high-precision temperature control assembly. The inner testing space ranges from ambient to +55℃ while saturation tank temperature is adjustable from ambient to +70℃, with temperature uniformity ≤2℃ and fluctuation ≤±0.5℃ to satisfy distinct thermal requirement of NSS, AASS and CASS separately. Compressed air is preheated and filtered inside saturation tank to prevent nozzle clogging caused by crystal precipitation and maintain continuous uniform spraying inside salt spray test laboratory for long-duration tests.

Automatic Spraying Assembly for Standardized Salt Fog Precipitation
YWX/Q-010 is fitted with automatic spraying unit supporting continuous spray, intermittent spray and programmable operation modes. The salt spray sedimentation rate is steadily controlled within 1-2ml/80cm²/h based on 16-hour average value, fully complying with specification of GB/T 10125-2021 and ASTM B117-2022. Nozzle is made of anti-corrosion material to produce homogeneous atomization and even salt fog distribution across inner laboratory space, preventing abnormal data caused by over-spray or insufficient spray locally.

Intelligent Functions to Improve Automation and Safety of Salt Spray Test Laboratory
To realize unattended long-running of salt spray test laboratory, multiple intelligent functions are integrated into the equipment:
• Automatic monitoring on salt spray sedimentation to feedback real-time working status of laboratory;
• Programmable test timer ranging from 0 to 9999 hours for long-term durability aging test;
• Acoustic and visual alarm upon water shortage or over-temperature with dual mechanical-electronic overheat protection to eliminate potential safety hazard;
• Low air pressure warning to stabilize air source and sustain normal running of salt spray test laboratory.

Standard Test Modes and Technical Parameters for Salt Spray Test Laboratory

Three Mainstream Standard Test Types
Three widely adopted corrosion test modes can be steadily realized by YWX/Q-010 salt spray chamber inside salt spray test laboratory to cover most inspection demands:
• Neutral Salt Spray test (NSS): solution pH 6.5~7.2 at 35℃, used for basic anti-corrosion evaluation of common metal and surface coating;
• Acetic Acid Salt Spray test (AASS): acidified solution pH 3.1~3.3 at 35℃ with higher corrosivity for high-grade decorative plating inspection;
• Copper Accelerated Acetic Acid Salt Spray test (CASS): copper ion added for accelerated corrosion at 50℃, applied for anodized aluminum and precision component testing.

Key Technical Parameter Table
The specification table below lists core indexes of LISUN YWX/Q-010 salt spray chamber as important reference for salt spray test laboratory construction and equipment procurement:

Standard Compliance
YWX/Q-010 complies with mainstream domestic and international standards applied for salt spray test laboratory, including GB/T 2423.17-2021, GB/T 10125-2021, GB/T 1771-2021, ASTM B117-2022, ASTM B368-21, ISO 9227-2017, IEC 60068-2-11:2013, ensuring global recognition of test results generated from salt spray test laboratory.

Application Scenarios and Engineering Value of Salt Spray Test Laboratory

Salt spray test laboratory equipped with YWX/Q-010 salt spray chamber meets anti-corrosion inspection requirements from multiple industrial fields:
• Electronics & electrical industry: testing connectors, component pins, power adapters and outdoor communication equipment to avoid short circuit and poor contact caused by salt fog corrosion for stable operation of coastal base station;
• Hardware manufacturing: inspection on screws, hinges and metal brackets to verify reliability of galvanization and chrome plating and improve durability of construction and mechanical fittings;
• Coating industry: performance evaluation on automotive paint, industrial finish and powder coating against blistering, peeling and rust to support coating formulation development and quality control;
• Home appliance industry: corrosion test on outdoor air conditioner parts and metal furniture to guarantee long service life under high humidity and salty atmosphere;
• New energy & outdoor lighting: examination on photovoltaic frame, cabinet housing and traffic lamp shell to verify environmental adaptability and reduce later maintenance cost.

Conclusion

Salt spray test laboratory is vital carrier of modern industrial reliability testing, and LISUN YWX/Q-010 salt spray chamber serves as optimal core facility for laboratory construction. With integrally molded cabinet of imported anti-corrosion PP sheet for zero leakage, matched high-precision thermal controller and automatic spraying unit, the equipment supports three standard NSS/AASS/CASS test modes together with intelligent sedimentation monitoring, long-hour timing and multi-condition alarm functions to fully satisfy global standard specifications.

Salt spray test laboratory built upon YWX/Q-010 efficiently completes accelerated corrosion assessment for various materials and finished goods, identifies surface protection defects and provides objective data for product development, process optimization and certification approval across electronics, hardware, coating, home appliance and new energy sectors. The equipment enhances stability, precision and intelligent level of salt spray test laboratory, promotes standardized and high-efficiency anti-corrosion testing and becomes indispensable equipment for in-house QC laboratory and third-party certification institute.
