How to Choose a Solid State Power Amplifier for IEC 61000-4-3 Radiated Immunity Testing

Abstract
IEC 61000‑4‑3 RF Immunity Test Amplifier serves as the core hardware for constructing a complete radiated RF electromagnetic field immunity test system. Thanks to stable linear output and low‑distortion spectral characteristics, solid‑state RF power amplifiers have become the mainstream solution in the industry. The IEC 61000‑4‑3 standard imposes mandatory constraints on the operating frequency band, linearity, harmonic and spurious emissions, power margin and load withstand capability of amplifiers. Non‑compliant equipment will result in distorted radiated field strength and invalid test data, making it impossible to pass laboratory qualification assessment and product CE certification. Taking the LISUN LS‑PA80M1G‑300W solid‑state EMC RF power amplifier as the research object, this paper sorts out the mandatory technical requirements of IEC 61000‑4‑3 standard for IEC 61000‑4‑3 RF Immunity Test Amplifier, compares core parameters of different solid‑state amplifier models, illustrates four key selection dimensions including frequency band, power, linearity and protection functions, and introduces practical equipment applications in radiated immunity tests for consumer electronics, automotive electronics and medical products. It provides complete selection references for building complete laboratory test systems and in‑house R&D test platforms.

Introduction

Radiated RF electromagnetic field immunity test is a mandatory EMC detection item for domestic launch and export of electrical and electronic products. Its corresponding international standard is IEC 61000‑4‑3, and the equivalent domestic standard is GB/T 17626.3. A complete test system consists of signal generator, IEC 61000‑4‑3 RF Immunity Test Amplifier, transmitting antenna, anechoic chamber and field‑strength monitoring equipment. Among these components, the solid‑state power amplifier determines the spectral purity and field‑strength stability of radiated electromagnetic field, and acts as the decisive component for overall system performance.

Traditional traveling‑wave tube amplifiers suffer from high harmonic content, short service life and poor load withstand capability, and cannot satisfy the requirements for signal linearity and modulation fidelity specified in the updated IEC 61000‑4‑3 standard. Solid‑state linear RF power amplifiers have gradually become mainstream equipment. The LISUN LS‑PA series full‑solid‑state EMC RF power amplifier adopts linear amplification circuit design. It can amplify input RF signals with high fidelity and low distortion, and deliver stable, clean and controllable high‑power RF output signals. Featuring excellent gain flatness, low harmonics and low spurious emissions, the equipment fully complies with mainstream EMC test standards including GB, IEC and ISO. The LS‑PA80M1G‑300W is specially developed for IEC 61000‑4‑3 radiated immunity tests within 80MHz to 1GHz frequency band. It is compatible with 3‑meter and 10‑meter standard anechoic chambers, and can stably generate standard test field strength of 10V/m and 30V/m. It meets long‑term batch test demands from third‑party testing laboratories, automotive R&D centers and medical equipment manufacturers.

IEC 61000‑4‑3 clearly specifies that RF signals shall be superimposed with 1kHz sine‑wave amplitude modulation at 80% depth during testing. Amplifiers must operate within linear working region. Once compression occurs, modulation waveform will be distorted and field‑strength distribution inside uniform field will be disordered, which renders all test data invalid for certification purposes. Therefore, when selecting an IEC 61000‑4‑3 RF Immunity Test Amplifier, solid‑state models shall be strictly screened against standard technical specifications, and rated output power shall not be treated as the sole selection criterion.

Mandatory Technical Requirements for Solid‑State RF Amplifiers in IEC 61000‑4‑3 Standard

The updated IEC 61000‑4‑3:2020 defines access thresholds for IEC 61000‑4‑3 RF Immunity Test Amplifier from four dimensions: signal spectrum, output capability, equipment protection and program control adaptability. All solid‑state power amplifiers used for certification testing shall satisfy the following constraints.

First, linearity and spectral specifications. Within 1dB compression power range, the maximum harmonic output shall not exceed ‑15dBc, and out‑of‑band spurious suppression shall be no less than ‑50dBc. This ensures complete restoration of AM‑modulated signals, avoids extra interference frequency points inside uniform field and prevents false immunity failure of equipment under test. Meanwhile, gain fluctuation across full frequency band shall be kept within reasonable limits. Excessive gain variation will cause obvious field‑strength deviation between high and low frequencies within one sweep cycle, requiring frequent manual power compensation and reducing test repeatability significantly.

Second, frequency band and power margin requirements. The basic test frequency range of IEC 61000‑4‑3 covers 80MHz to 1GHz, and extended versions reach 6GHz or 18GHz. According to standard calculation, to achieve high‑level field strength of 30V/m in a 3‑meter anechoic chamber, the effective output power of amplifier shall be at least 200W, with more than 30% power margin reserved for cable loss and antenna standing‑wave reflection. Therefore, certification testing specifications recommend solid‑state models with rated output of 300W or higher as standard IEC 61000‑4‑3 RF Immunity Test Amplifier.

Third, load VSWR withstand capability. Antennas, cables and equipment under test generate variable RF reflection during testing. The standard requires amplifiers to continuously withstand VSWR up to 5:1 without power roll‑back or hardware shutdown. Complete protection mechanisms including over‑VSWR, over‑drive, over‑temperature, over‑voltage and over‑current protection shall be integrated to avoid power‑amplifier burnout caused by single test fault and reduce laboratory maintenance costs.

Fourth, modulation and remote control compatibility. Equipment shall support standard AM and FM modulation formats to meet 1kHz depth AM test conditions. Communication interfaces including LAN, GPIB and RS232 shall be equipped to link with test software for automatic full‑frequency sweep and closed‑loop field‑strength adjustment, realizing unattended automatic radiated immunity test and improving throughput for high‑volume sample testing in third‑party laboratories.

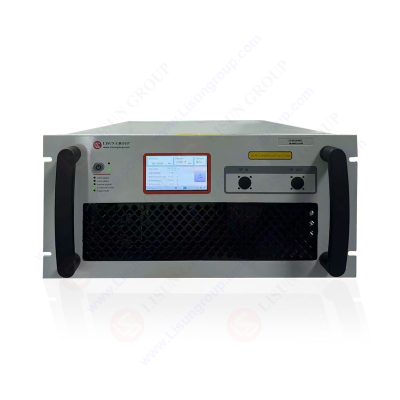

The LISUN LS‑PA80M1G‑300W solid‑state amplifier fully satisfies all above‑mentioned standard requirements. As a dedicated IEC 61000‑4‑3 RF Immunity Test Amplifier, its gain flatness within 80MHz‑1000MHz is controlled within ±4.5dB, minimum 1dB compression power reaches 250W, and rated 300W output provides sufficient power headroom. Harmonic performance is better than ‑15dBc with spurious suppression of ‑50dBc. It supports all standard modulation modes and multi‑bus remote control, complying with qualification audit requirements for certification laboratories.

Table 1 Core Parameters of LISUN LS‑PA Series Solid‑State IEC 61000‑4‑3 RF Immunity Test Amplifier and Compliance Comparison with IEC 61000‑4‑3

As shown in the parameter comparison table, LS‑PA80M1G‑300W is the complete‑match solid‑state IEC 61000‑4‑3 RF Immunity Test Amplifier for basic‑band IEC 61000‑4‑3 requirements. Other models can only serve as auxiliary extended‑band devices and cannot independently complete full‑range 80MHz‑1GHz radiated immunity certification test. 80W and 200W low‑power models have insufficient power margin and easily enter compression region under 30V/m high‑field‑strength conditions, which will invalidate test results. Models above 1GHz do not cover basic test frequency band and must be used together with 80MHz‑1GHz amplifiers.

Four Core Selection Dimensions for IEC 61000‑4‑3 RF Immunity Test Amplifier

Combined with IEC 61000‑4‑3 clauses and practical operation experience of LS‑PA80M1G‑300W, four key dimensions shall be verified sequentially when selecting solid‑state power amplifiers for radiated immunity testing: frequency‑band matching, output power margin, linear‑spectrum performance, protection and remote‑control capability. Improper selection may render the whole test system ineffective.

The first dimension is frequency‑band matching. Confirm frequency scope required by products under test. For consumer electronics and automotive interior components, only 80MHz‑1GHz basic band is required and LS‑PA80M1G‑300W is the direct choice. For communication, military and high‑end medical devices requiring 1GHz‑18GHz extension, multiple amplifiers such as LS‑PA1G6G and LS‑PA6G18G shall be deployed for segmented frequency coverage. Narrow‑band low‑frequency amplifiers shall not be adopted for full‑range IEC 61000‑4‑3 test; otherwise valid radiated field strength will disappear at high frequencies and interference frequency bands will be missed.

The second dimension is output power and margin calculation. Before selection, calculate minimum power demand according to anechoic‑chamber size and target field‑strength level. 200W devices can be used temporarily for low‑level 10V/m tests. For long‑term certification and 30V/m high‑field‑strength conditions, IEC 61000‑4‑3 RF Immunity Test Amplifier of 300W or higher rating shall be selected. With rated 300W output and 250W P1dB compression power, LISUN LS‑PA80M1G‑300W can deliver sufficient RF power for 30V/m field strength after deducting 4‑6dB insertion loss from cables and antennas, avoiding signal compression distortion and complying with linear‑amplification requirements of standards.

The third dimension is linearity, harmonic and spurious performance, which directly determines test validity. Some low‑cost solid‑state amplifiers adopt simplified Class‑AB circuits for cost reduction, resulting in harmonic performance worse than ‑10dBc. Extra harmonic radiation will be generated inside uniform field, so equipment under test suffers dual interference. Certification bodies will reject such test reports. Adopting Class‑A linear solid‑state circuit, LS‑PA80M1G‑300W realizes low‑distortion output with harmonics controlled within ‑15dBc, meeting spectral constraints and qualification requirements of third‑party laboratories.

The fourth dimension is load protection and remote control. Antennas and samples may produce large reflected VSWR during continuous batch testing. Amplifiers without multi‑level protection risk power‑tube burnout, leading to weeks‑long maintenance and suspended laboratory services. LS‑PA80M1G‑300W integrates comprehensive protection including over‑VSWR, over‑temperature, over‑current and over‑voltage. It reduces output power gradually instead of sudden shutdown upon abnormality to preserve test‑data continuity. LAN and GPIB communication interfaces are available for integration with mainstream EMC test software to execute automatic full‑band sweep and closed‑loop field‑strength calibration for IEC 61000‑4‑3, lowering manual workload and improving daily sample throughput.

Industry Application Scenarios of LISUN LS‑PA80M1G‑300W IEC 61000‑4‑3 RF Immunity Test Amplifier

As standard IEC 61000‑4‑3 RF Immunity Test Amplifier, LISUN LS‑PA80M1G‑300W solid‑state power amplifier covers three major industry‑oriented test requirements and adapts to various laboratory construction schemes.

For third‑party EMC testing laboratories, diverse products including home appliances, power supplies and industrial control equipment are certified with dozens of samples processed every day. Equipment must support 24‑hour continuous operation. LS‑PA80M1G‑300W features air‑cooled thermal design without complicated water‑cooling pipelines. Multi‑level protection minimizes unexpected downtime. Pre‑configured test routines can directly run IEC 61000‑4‑3 full‑band sweep and generate raw test curves acceptable for CNAS accreditation.

For automotive electronics R&D laboratories, on‑board central control units, instrument panels and vehicle chargers must comply with both ISO 11452‑4 and IEC 61000‑4‑3 immunity standards. LS‑PA80M1G‑300W can perform radiated RS immunity test as well as BCI bulk‑current‑injection pre‑test with impedance fixtures. One amplifier covers two EMS immunity items and reduces total laboratory investment. R&D teams can quickly complete immunity pre‑evaluation and implement design revisions in advance to avoid high costs and long lead‑time from external third‑party testing.

For quality‑control workshops of medical and communication equipment manufacturers, medical monitors, routers and similar products must pass GB/T 17626.3 before market release. Factories can build compact 3‑meter anechoic chambers equipped with LS‑PA80M1G‑300W IEC 61000‑4‑3 RF Immunity Test Amplifier for pre‑shipment sampling radiated‑immunity inspection. Defective semi‑finished products can be screened out to prevent non‑compliant goods from entering market and risks of regulatory penalties.

Conclusion

Valid test results of IEC 61000‑4‑3 radiated RF electromagnetic‑field immunity test rely entirely on qualified IEC 61000‑4‑3 RF Immunity Test Amplifier. Solid‑state linear power amplifiers represent the mainstream hardware solution complying with updated IEC 61000‑4‑3. Rated output power should not be the only selection criterion. Frequency‑band coverage, power margin, linear‑harmonic specifications, load protection and remote‑control performance shall all be evaluated comprehensively.

LISUN LS‑PA80M1G‑300W solid‑state EMC RF power amplifier is purpose‑built for 80MHz‑1GHz basic‑band radiated immunity test. Its technical specifications fully satisfy IEC 61000‑4‑3 and domestic GB/T 17626.3 requirements. Sufficient power margin, excellent linear‑spectrum performance, comprehensive multi‑level protection and multi‑bus remote‑control functions make it suitable for third‑party certification laboratories, automotive R&D centers and factory QC workshops. It serves as a standard IEC 61000‑4‑3 RF Immunity Test Amplifier option for radiated‑immunity test‑system construction. When building EMC test platforms, enterprises and test institutions can adopt LS‑PA80M1G‑300W as core solid‑state amplifier together with extended‑band models to establish complete radiated‑immunity test systems covering mainstream test frequencies. It guarantees compliant and valid test data to satisfy domestic market access and overseas CE certification requirements for electronic products.
