BS EN 61747-6-2 Liquid crystal display devicesPart 6-2: Measuring methods for liquidcrystal display modules — Reflective type

Scope

This part of IEC 61747 gives details of the quality assessment procedures, the inspection requirements, screening sequences, sampling requirements, and test and measurement procedures required for the assessment of liquid crystal display modules.

This standard is restricted to reflective liquid crystal display-modules using either segment, passive or active matrix and a-chromatic or colour type LCDs (see Note). Furthermore, the reflective modes of transflective LCD modules with backlights OFF and reflective LCD modules of front light type without its front-light-unit, are comprised in this standard. A reflective LCD module with combination of a touch-key-panel or a front-light-unit is out of the scope of this standard, because its measurements are frequently inaccurate. Its touch-key-
panel or front-light-unit should be removed before it can be included in this scope.

NOTE Several points of view with respect to the preferred terminology on “monochrome”, “achromatic”, “chromatic”, “colour”, “full-colour”, etc. can be encountered in the field amongst spectroscopists, (general-) physicists, colour-perception scientists, physical engineers and electrical engineers. In general, all LCDs demonstrate some sort of chromaticity (e.g. as function of viewing angle, ambient temperature or externally addressable means). Pending detailed official description of the subject, the pre-fix pertaining to the “chromaticity” of the display will be used so as to describe the colour capability of the display that is externally (and electrically) addressable by the user. This leads us to the following definitions (see also [19])

a) a monochrome display has NO user-addressable chromaticity (“colours”). It may or may not be “black and white” or a-chromatic;

b) a colour display has at least two user-addressable chromaticities (“colours”). A 64-colour display has 64
addressable colours (often made using 2 bits per primary for 3 primaries), etc. A full-colour display has at
least 6 bits per primary (2 260 thousand colours).

The purpose of this standard is to indicate and list the procedure-dependent parameters and to prescribe the specific methods and conditions that are to be used for their uniform numerical determination.

Normative references

The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 11664-2: 2007, Colorimetry – Part 2: CIE standard illuminants

CIE 15.2, CIE Recommendations on Colorimetry
CIE 17.4, International Lighting Vocabulary

CIE 38, Radiometric and photometric characteristics of materials and their measurement

CIE 1931, CIE XYZ colour space

CIE 1976, CIE LAB colour space

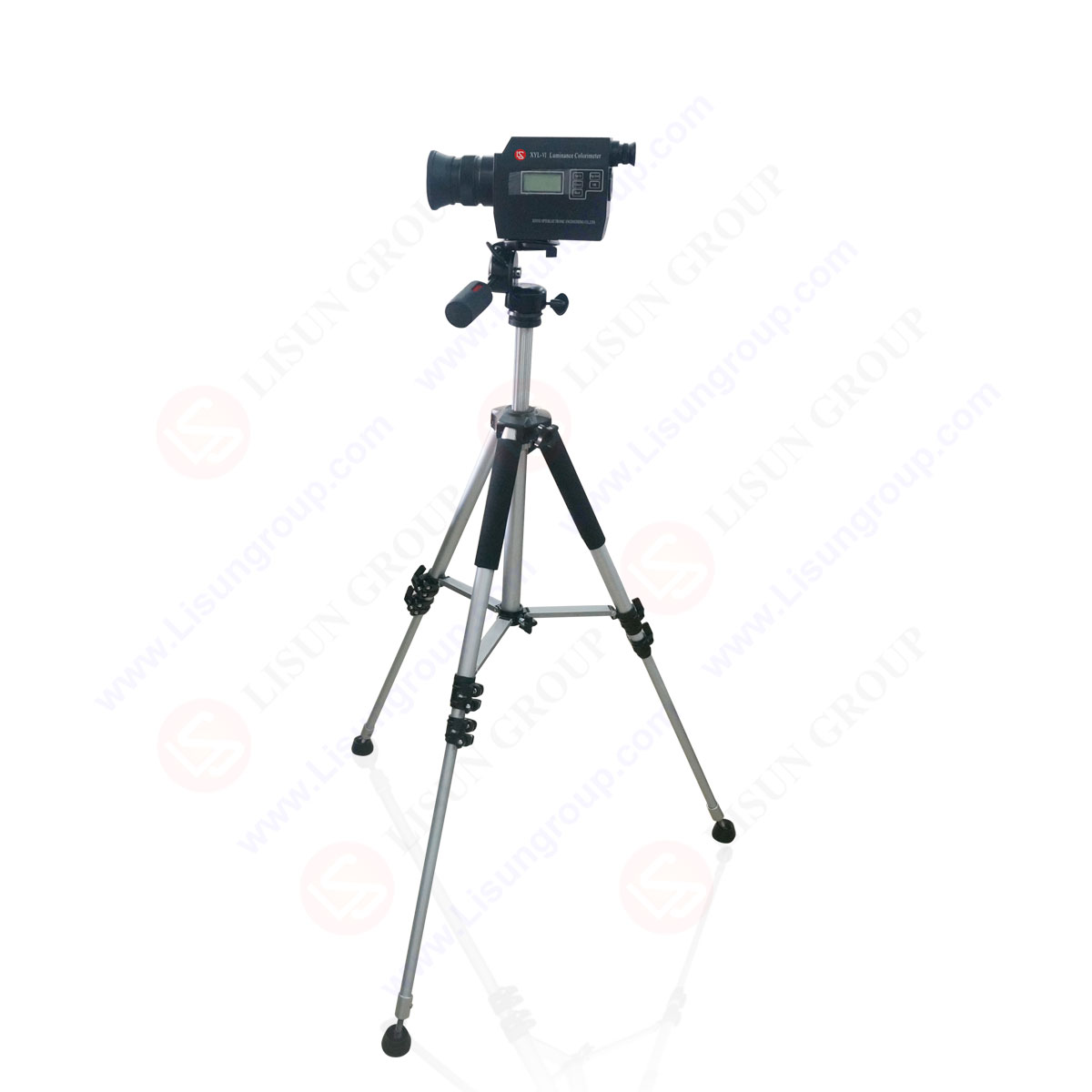

LISUN following instruments fully meet BS EN 61747-6-2 Liquid crystal display devicesPart 6-2: Measuring methods for liquidcrystal display modules — Reflective type
