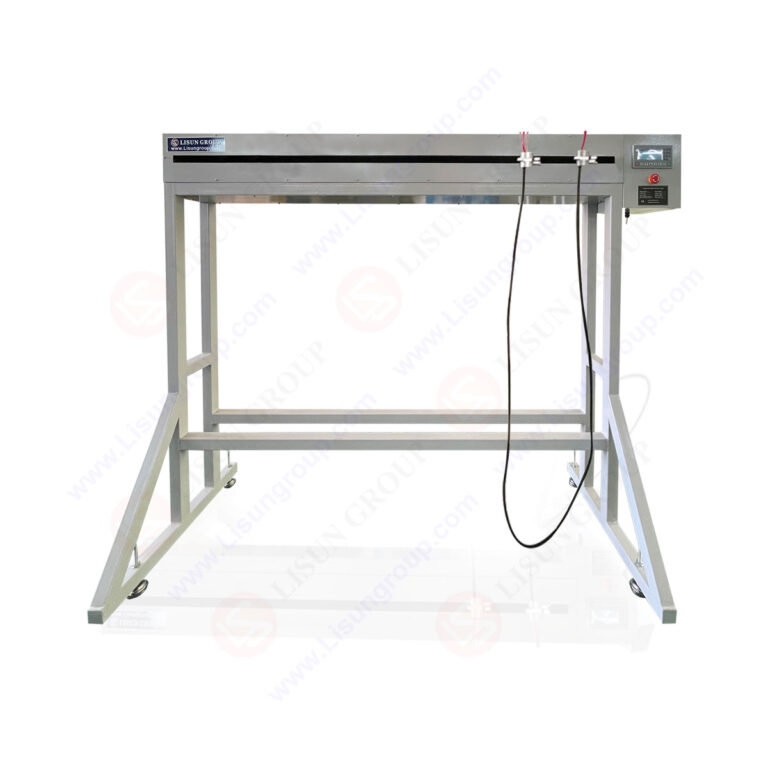

IEC 63294 IEC 60245-1 IEC 60227-1 Static Flexibility Test Machine for Flexible Cables

The WDT-3 Static Flexibility Test Machine for Flexible Cables fully meet fully meet IEC 60245-1:2008 Clause 5.6.3.2 (GB/T 5013.1-2008 Clause 5.6.3.2), IEC 63294 (IEC 60245-2 Clause 3.2 Figure 2 (GB/T 5013.2-2008 Clause 3.2 Figure 2)), IEC 60227-1:2024 Clause 5.6.3.2 (GB/T 5023.1-2008 Clause 5.6.3.2), IEC 63294 (IEC 60227-2:2008 Clause 3.2 Figure 2 (GB/T 5023.2-2008 Clause 3.2 Figure 2)). It used for the Static Flexibility Test of Flexible Cables in the mechanical strength test (Note: This test is not suitable for cables with more than two concentric layers with a conductor nominal cross-section of more than 18 cores).

Test principle: The 3m long sample is initially 200mm at the clamping end, and then one end is moved to bend the Flexible Cable into a standard U shape, and the distance between the two clamping ends is measured.

Standard:
IEC 63294 (IEC 60245-2, IEC 60227-2, GB/T 5013.2, GB/T 5023.2) “Test methods for electric cables with rated voltages up to and including 450/750 V”
IEC 60245-1 (GB/T 5013.1) “Rubber insulated cables – Rated voltages up to and including 450/750 V – Part 1: General requirements” Clause 5.6.3.2
IEC 60227-1 (GB/T 5023.1) “Polyvinyl chloride insulated cables of rated voltages up to and including 450/750 V – Part 1: General requirements” Clause 5.6.3.2

Specification:
• Flexural length: 200 -1500(mm)
• Sample outer diameter: φ6 – 32(mm)
• Sample length: 3000±5% (mm)
• Height above ground: 1500mm
• Overall dimensions (length*width*height): 2000*400*1800mm

IEC 60245-1: 2007 Clause 5.6.3.2

IEC 60245-2: 1998 Clause 3.2 Figure 2
