IEC 60884-1 Clause 23.2 Table 21 Flexible Cables Torque Test Device

Product No: LS-B47

Leave a Message

=
  • Description
  • Download

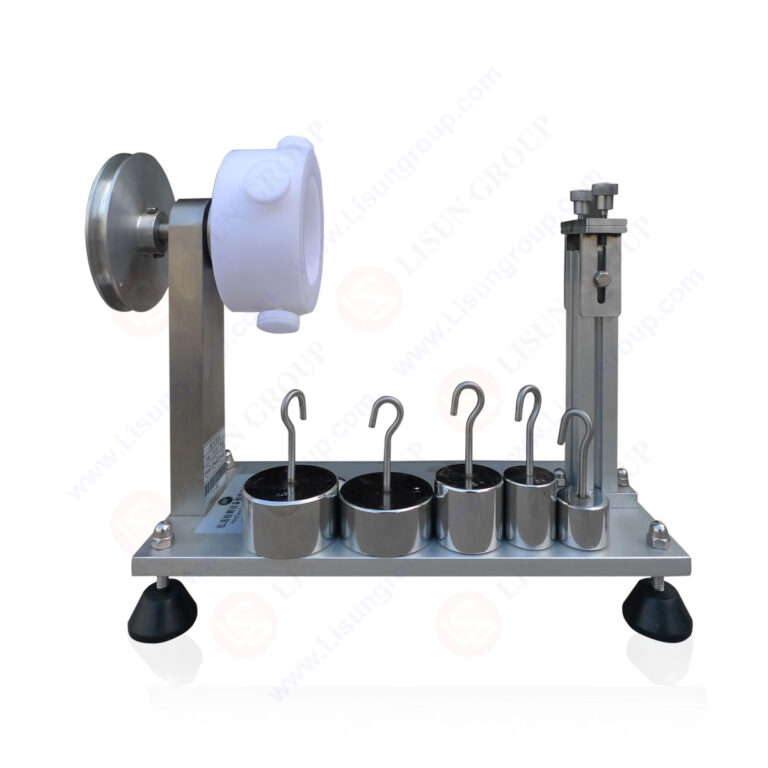

  • The LS-B47 Flexible Cables Torque Test Device is used to test flexible cables in plugs, removable sockets, fixed components with conductors, and their connectors. By applying tension and torque according to specifications, it examines the wear resistance of the flexible cable under the protection of the sheath, without the conductor terminals or ends being subjected to stresses such as twisting. At the same time, it verifies the displacement of the flexible cable and the integrity of the electrical connection after the test.

    Standard:

    Standards Standards Name
    IEC 60884:2022  Plugs and socket-outlets for household and similar purposes
    GB/T 2099.1-2021 家用和类似用途插头插座 第 1 部分：通用要求

    Specification:

    Torque Disc Diameter 100mm
    Weights 2N, 3N, 5N, 7N, 8.5N, one for each, achieving 0.1, 0.15, 0.25, 0.35, 0.425N.m torque respectively
    Applications:
    1. Testing the torque and abrasion resistance of flexible cables in household plug products
    2. Quality inspection of flexible cables and connectors in portable sockets
    3. Performance verification of flexible cables in fixed electrical components with wires
    4. Finished product qualification testing for electrical accessory manufacturers



    IEC 60884-1:2022 Table 21
