IEC 60884-1 Clause 10.2 and 24.6 Figure 6 Compression Test Device

Product No: LS-B08

Leave a Message

Description
Video

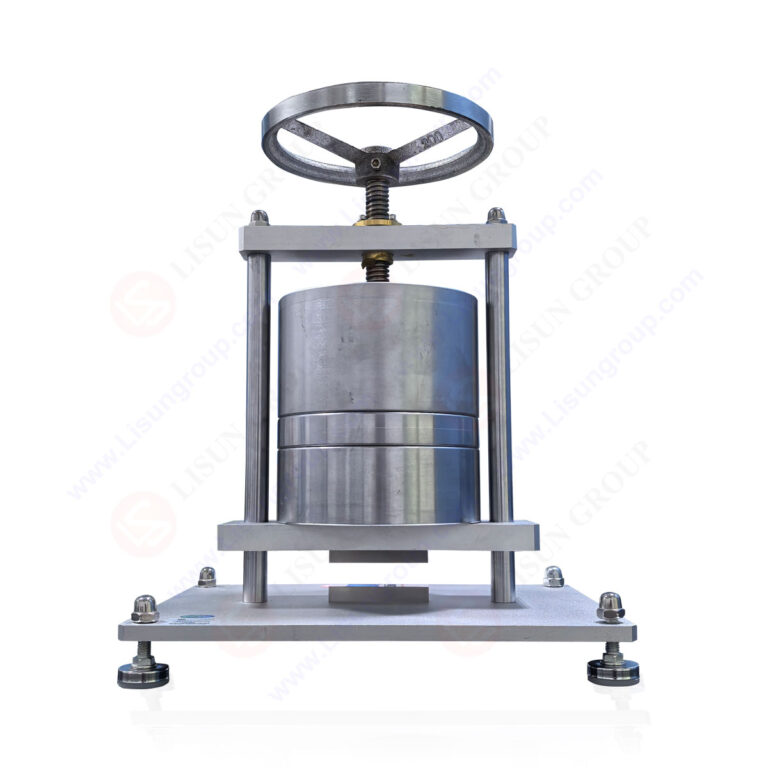

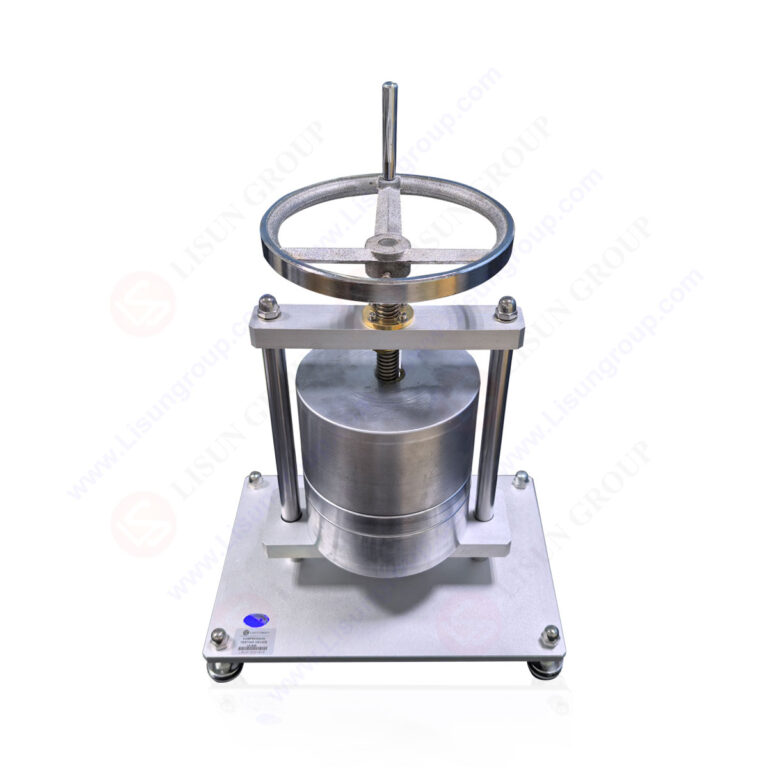

Compression Test Device is specifically designed for conducting pressure tests on plugs. This device applies force using weights and employs standardized loading methods to verify whether the plug’s mechanical strength meets specified requirements. This provides reliable testing support for plug product quality control and ensures the structural stability of the product during use.

Standard:

Standards	Standards Name
IEC 60884-1:2022	Plugs and socket-outlets for household and similar purposes – Part 1: General requirements
EN 50075:1990	Plugs, socket-outlets and couplers for household and similar purposes – Safety requirements
GB/T 2099.1-2021	家用和类似用途插头插座第 1 部分：通用要求

Specification:

Parameter	Specification
Base	Alumina plate
Main weight:	150N
Additional weight	150N
Loading weight	IEC 60884-1 Clause 10.2（35±2°C）：150N (GB/T 2099.1 Clause 10.1（40±2°C）)
	IEC 60884-1 Clause 24.6（23±2°C）：300N (GB/T 2099.1 Clause 24.6（23±2°C）)
	Notes: It should work together with LISUN GW-225 high temperature chamber
Up and down	Thread lifting
Steel base	Thickness>5mm，Width>18mm

Applications:
1. Mechanical strength pressure resistance test of household plugs
2. Pressure resistance performance test of civilian plugs
3. Structural stability pressure test of plugs for similar applications
4. Mechanical strength compliance test of plugs conforming to relevant standards
