IEC 60529 IPX5-6 Chamber & Nozzle Design: Essential for 100 L/min Water Jet Safety

Abstract: In modern industrial manufacturing and quality assurance frameworks, ensuring reliable environmental adaptability for electrical and electronic equipment is a prerequisite for accessing global markets. As the internationally accepted criterion for evaluating enclosure protection ratings (IP codes), the IEC 60529:2013 standard provides a rigorous technical framework for IPX5 (water jet) and IPX6 (powerful water jet) testing.

This paper delves into the design principles of IEC 60529 IPX5-6 water spray test chambers and the physical parameter consistency of their core component—the nozzle. Through engineering analysis of LISUN’s JL-56CP series test equipment, this article elucidates the critical roles of high-precision flow control, pressure stability, and material corrosion resistance in simulating extreme rainfall and industrial washdown environments, providing standardized compliance testing solutions for relevant industries.

1. Introduction: The Strategic Role of Enclosure Protection Ratings in Environmental Reliability

With the robust expansion of Industrial IoT, new energy vehicles, and intelligent lighting sectors, equipment operating scenarios are no longer confined to climate-controlled indoor laboratories. From 5G base stations exposed to violent storms to automotive chassis sensors frequently subjected to high-pressure washing, enclosure sealing performance directly determines system lifecycle reliability. Among various protection ratings, IPX5 and IPX6 have become core indicators for verifying physical sealing integrity, as they simulate dynamic water spray scenarios with significant kinetic energy impact.

The key to standardized testing lies in constructing a highly deterministic experimental environment—the IPX5-6 water spray test chamber. Through precision-engineered nozzles (hose nozzles), the test system generates water jets with specific flow rates and pressures, thereby applying predefined fluid stress to the Device Under Test (DUT). LISUN’s JL-56CP series addresses these stringent standardization requirements by minimizing experimental error through advanced digital control methodologies.

2. Technical Analysis of IPX5/6 Ratings Under IEC 60529

2.1 Physical Characteristics and Rating Definitions

According to clauses 14.2.5 through 14.2.6 of IEC 60529:2013, water spray tests are categorized into the following representative classifications:

• IPX5 (Water Jet Test): Simulates ordinary rainfall or low-pressure hose washing. The fundamental requirement is the ability to withstand water jets from any direction without harmful effects.
• IPX6 (Powerful Water Jet Test): Simulates wave impact or high-pressure intense jetting. At this rating, water flow momentum increases significantly, posing greater challenges to the instantaneous compression performance of sealing gaskets.
• IPX6K (Enhanced Powerful Water Jet): Typically specified in derivative standards such as ISO 20653, this rigorous requirement is also fully accommodated by the JL-56CP series.

2.2 Geometric Specifications of Nozzles

Standard Figure 6 specifies the internal geometry and outlet orifice of the nozzle in detail. Nozzle design involves more than simple pipe machining; the flow channel taper must ensure the water jet maintains a stable, convergent form upon exiting the nozzle to prevent premature energy dissipation.

• IPX5 Nozzle: Internal diameter of φ 6.3 mm
• IPX6 Nozzle: Internal diameter of φ 12.5 mm

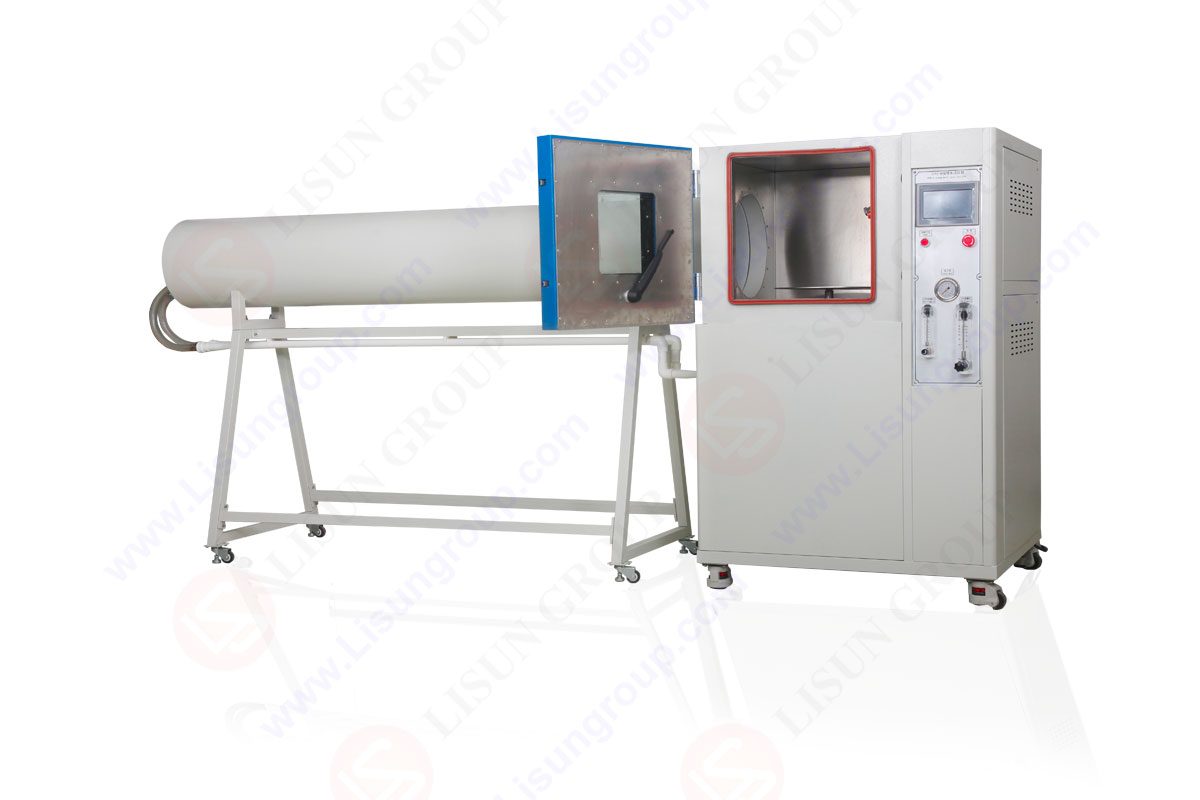

3. Core Design and Data Analysis of the LISUN JL-56CP Water Spray Test Chamber

The LISUN JL-56CP series represents a comprehensive testing platform specifically engineered for evaluating electronic products, lighting equipment, and automotive components. Its design logic strictly adheres to closed-loop feedback principles of mechanical dynamics and fluid mechanics.

3.1 Technical Parameter Comparison of Core Models

To accommodate test samples of varying volumes, LISUN provides multiple chamber specifications, ensuring the jet distance meets the standard requirement of 2.5 m to 3 m (the JL-56CP nominal spray distance is 2.8 m).

Model	Chamber Dimensions (W×D×H)	Turntable Size	Max Load	Water Flow Rate (L/min)
JL-56CP-200L	600×600×600 mm	φ 400 mm	50 kg	IPX5: 12.5 ± 0.625 IPX6: 100 ± 5
JL-56CP-500L	800×800×800 mm	φ 600 mm	50 kg	IPX5: 12.5 ± 0.625 IPX6: 100 ± 5
JL-56CP-1000L	1000×1000×1000 mm	φ 600 mm	50 kg	IPX5: 12.5 ± 0.625 IPX6: 100 ± 5
JL-56CP-1400L	1180×1180×1000 mm	φ 800 mm	50 kg	IPX5: 12.5 ± 0.625 IPX6: 100 ± 5

Note: For the IPX6K rating, the JL-56CP achieves precise flow rate control of 75 ± 3.75 L/min.

3.2 Mathematical Modeling of Jet Physical Characteristics

The impact force F generated during water spray testing represents the physical essence of test severity. According to fluid mechanics momentum equations, impact force is proportional to the square of the flow rate Q:

Where A represents the nozzle exit cross-sectional area. Since the IPX6 flow rate (100 L/min) significantly exceeds that of IPX5 (12.5 L/min), the resulting impact pressure increases substantially, effectively detecting minute gaps or sealing failures in enclosure structures under dynamic loading conditions.

4. Analysis of Key Characteristics and Engineering Advantages

4.1 Material Science and Durability Engineering

Operating in environments of prolonged high humidity and continuous water impact, the JL-56CP enclosure utilizes high-quality steel plate with baked finish, while the chamber interior, test turntable, and all core components in contact with water are uniformly constructed from SUS304 stainless steel. This material selection scheme not only provides excellent mechanical impact resistance but also effectively prevents oxidation and corrosion risks associated with long-term water circulation.

4.2 Intelligent Control and Human-Machine Interface

To minimize human error effects on test results, the JL-56CP features a full-color touchscreen operating system. Operators simply select the required waterproof rating (e.g., IPX5 or IPX6) via the interface, and the system automatically configures the flow and pressure parameters required by the standard before initiating the test. Additionally, the integrated waterproof LED lighting system and oversized observation window ensure comprehensive visual monitoring of the entire test process.

4.3 Safety Protection and Water Resource Management

The equipment integrates multiple safety protection functions, including:

• Electrical Safety: Equipped with comprehensive leakage protection and short-circuit protection systems.
• Hydraulic Safety: The built-in water tank supports closed-loop recycling, with automatic water level control via precision float valves. High/low water level alarms and water shortage protection ensure test continuity and maximize equipment operational lifespan.

5. Cross-Industry Applications: From Laboratory to Production Line

The LISUN JL-56CP water spray test chamber is widely deployed across industries with stringent waterproof performance requirements:

• Lighting Industry: Compliance testing for LED outdoor luminaires, stage lighting, and garden fixtures, ensuring no electrical short circuits occur under extreme weather conditions.
• Automotive and New Energy Sector: Evaluating water ingress protection for automotive sensors, headlights, power battery packs, and outdoor electric vehicle charging stations.
• Electronics Industry: Verification of operational stability for outdoor speakers, security cameras, and smart home devices under intensive spray environments.
• Third-Party Testing Laboratories: Providing authoritative IP rating certification services for global manufacturers and exporters.

6. Conclusion

In summary, constructing an internationally standardized waterproof testing system represents not merely a commitment to product quality, but a fundamental component of corporate brand competitiveness and market access. As the cornerstone of this system, the IEC 60529 IPX5-6 water spray test chamber demands precision engineering, material reliability, and faithful reproduction of standard parameters.

Through its precision nozzle adjustment systems, automated operational logic, and robust SUS304 stainless steel construction, the LISUN JL-56CP series water jet test equipment provides global customers with a highly stable, standard-compliant testing environment. By maintaining strict tolerances on flow rates (such as the 100 L/min specification for IPX6) and pressure parameters, this equipment ensures that every test datum possesses rigorous scientific validity and full traceability, empowering enterprises to confidently address technical barriers in international trade.
