Product No: LS-B12

Leave a Message

=
  • Description

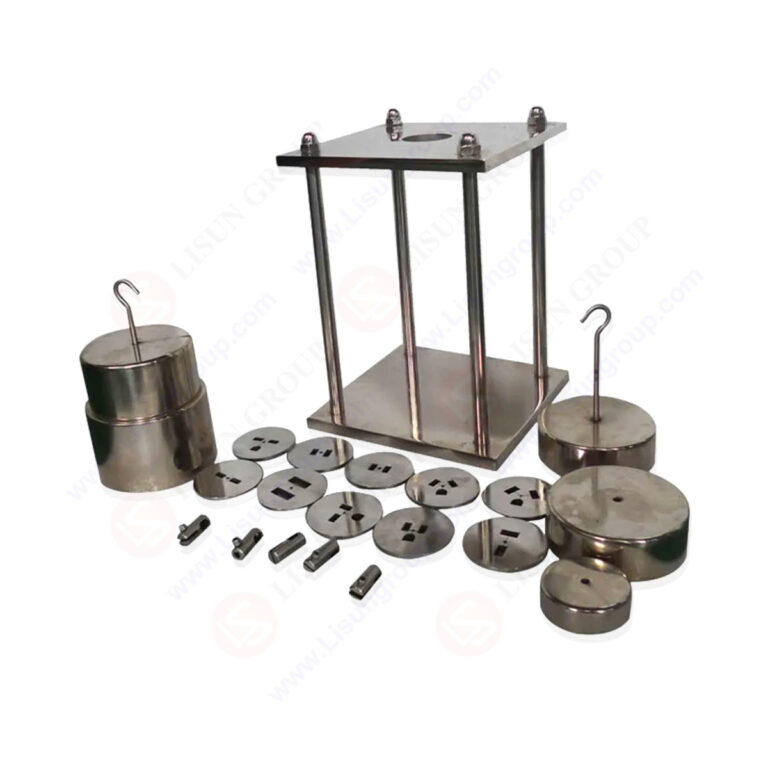

  • LS-B12 Socket-outlets Pins Retention Test Device is used to verify the installation stability of plug pins after high-temperature treatment. By applying a corresponding tensile force to the pins, it determines whether deformation or movement occurs, thereby verifying the pins’ firmness in the plug and providing a reliable testing basis for the quality control of related products. This device can be adapted to different tensile force configurations according to different testing needs and can also be used with a high-temperature chamber to meet diverse testing requirements.

    Standard:

    Standards Standards Name
    IEC 60884-1:2022  Plugs and socket-outlets for household and similar purposes – Part 1: General requirements
    IEC 60335-1:2023 Household and similar electrical appliances – Safety – Part 1: General requirements
    BS 1363-1:2023  Plugs, socket-outlets and couplers for household and similar purposes – Part 1: General requirements
    EN 5007:1951 Specification for two-pole plugs with earthing contact, rated 10 A and 16 A, 250 V
    VDE 0620-2-1:2021  Plugs, socket-outlets and couplers for household and similar purposes – Part 2-1: Specific requirements for plugs
    GB/T 2099.1-2021 家用和类似用途插头插座 第 1 部分：通用要求
    GB 4706.1-2024 家用和类似用途电器的安全 第 1 部分：通用要求

    Specification:

    LISUN Model Standard Requirement Pull-Weights
    LS-B12 IEC 60884-1 Clause 24.11 Figure 33 (GB/T 2099.1 Clause 24.10 Figure 30) Reference Table 19, two-pole 40N, three-pole 10A: 50N, three-pole 16A: 54N
    LS-B12A IEC 60335-1 Clause 22.3 (GB 4706.1 Clause 22.3) 50N
    GNGPL-3607 BS 1363-1 Clause 12.11.1 Figure 7 100N

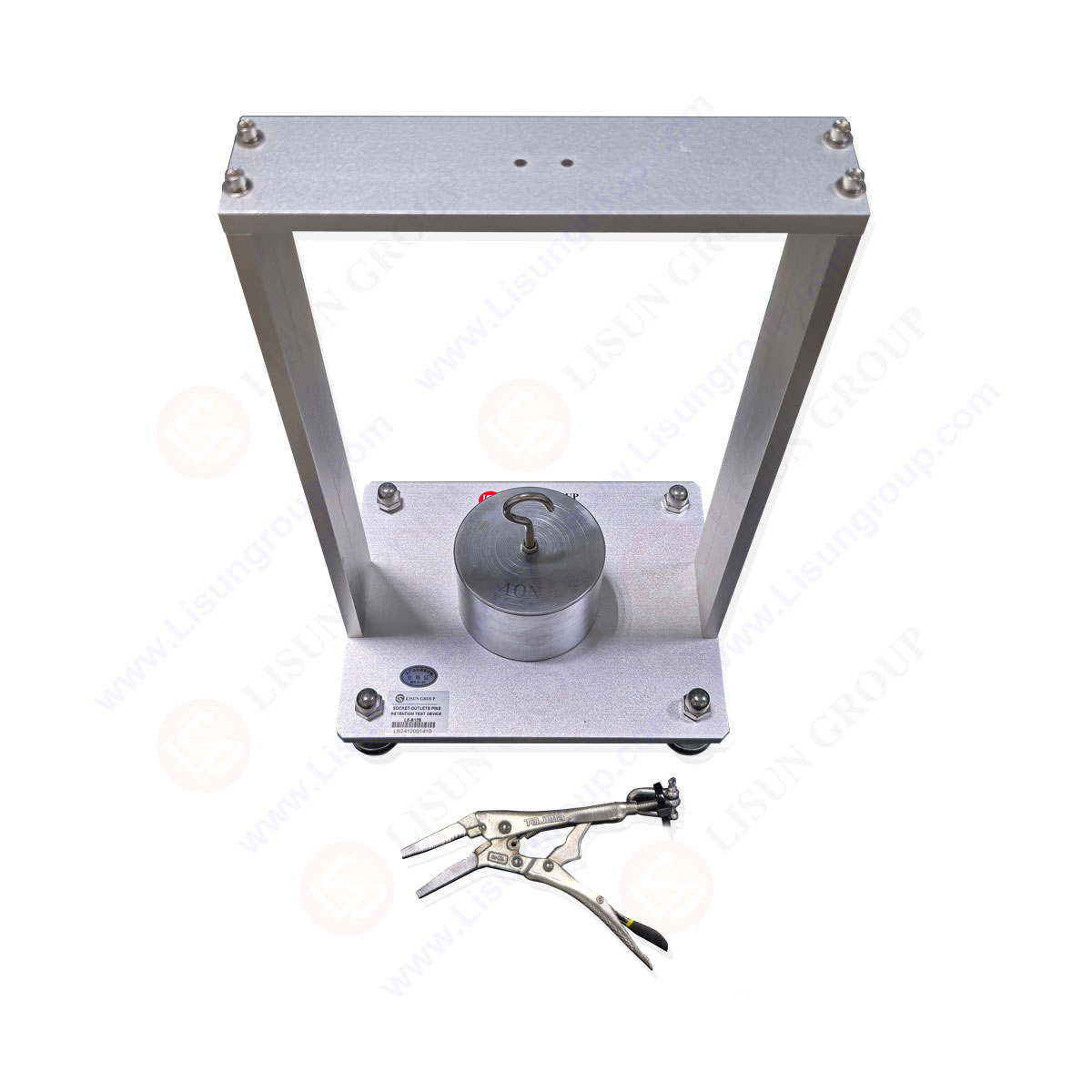

    LS-B12B EN 50075 Clause 13.4 40N
    LS-B12C VDE 0620-2-1 Clause 24.10 Figure 31 Reference Table 19

    Notes: 1. It can work together with LISUN GW-225 High Temperature Chamber (Optional); 2. Other pull-weights is optional according to customer’s request with extra cost.

    Applications:
    1. High-temperature stability testing of household plug pins
    2. Installation stability testing of industrial plug pins
    3. Factory quality inspection of electrical appliance plug products
    4. Stability verification testing of plug pins during the R&D stage
    5. Compliance testing of plug pins by third-party testing institutions
    6. Quality control of pin stability during power plug production

    IEC 60884-1 Table 19

    IEC 60884-1 Clause 24.11 Figure 33
