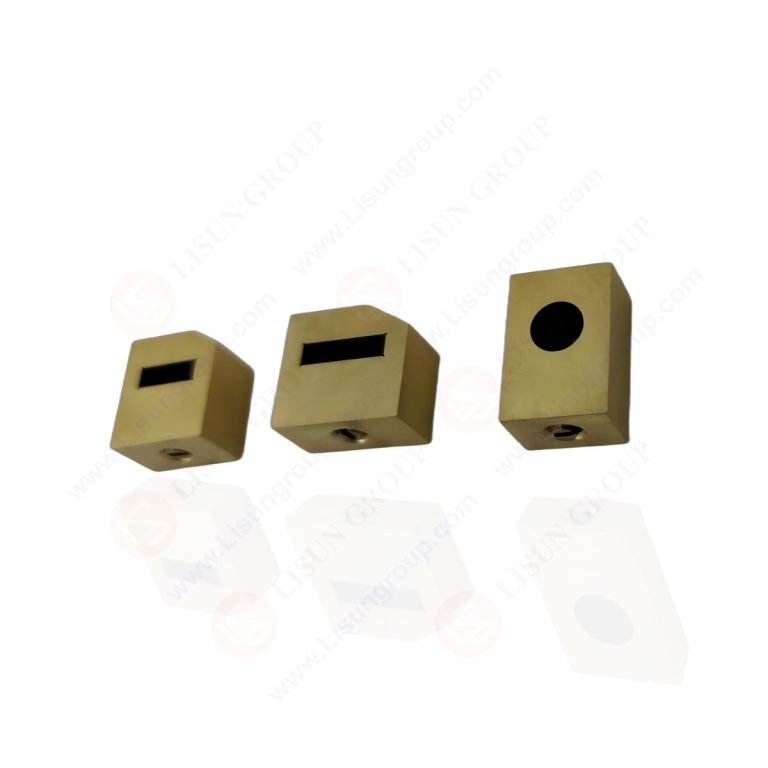

Product No: LS-B67

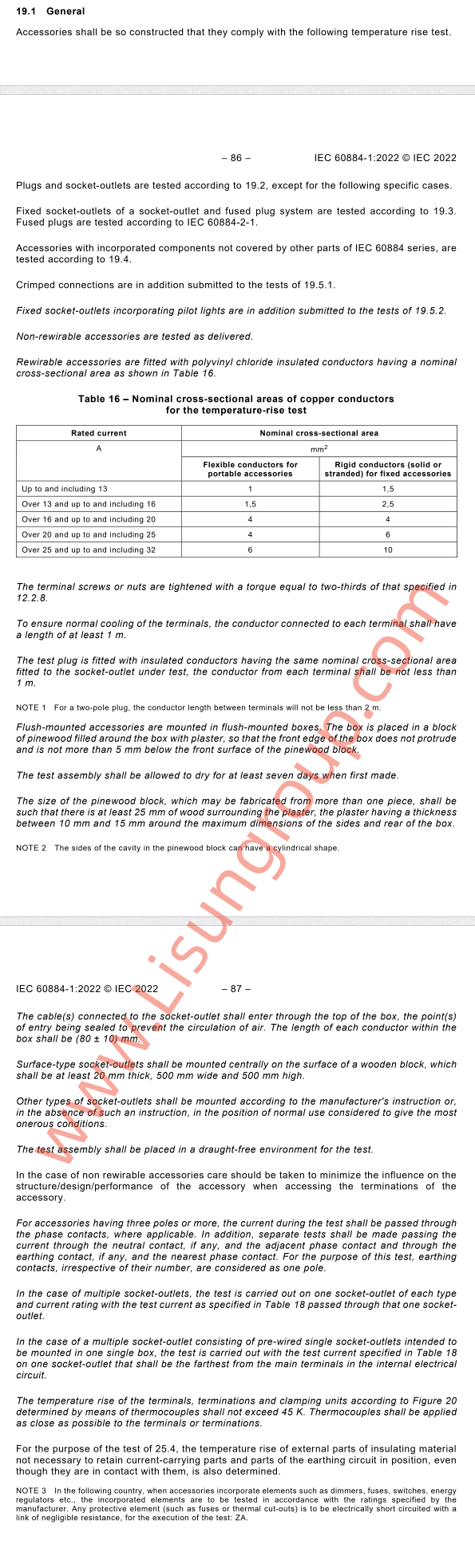

The LS-B67 national standard plug clamping unit for solid pins is designed and manufactured according to the requirements of IEC 60884-1:2022 Clause 19.1 Figure 20 (GB/T 2099.1-2021 Section 19.2 and Figure 44)
Specifications:
Item Name | Specification |
Material | Brass |
Copper block type | 10A two-pin plug: 2 pieces |
10A three-pin plug: 3 pieces | |
16A three-pin plug: 3 pieces | |
32A three-pin plug: 3 pieces | |
Latch opening size | Maximum pin size +0.8mm |
Clamping screw | M4 |
Tolerance | ±0.2 |
Material | Copper content> 52% brass |
Notes:
1. This product includes a 500*500*20mm wooden board, as required by Clause 19.2 of IEC60884-1.
2. This product can be used with the LISUN WS-1 Temperature Rise Tester.

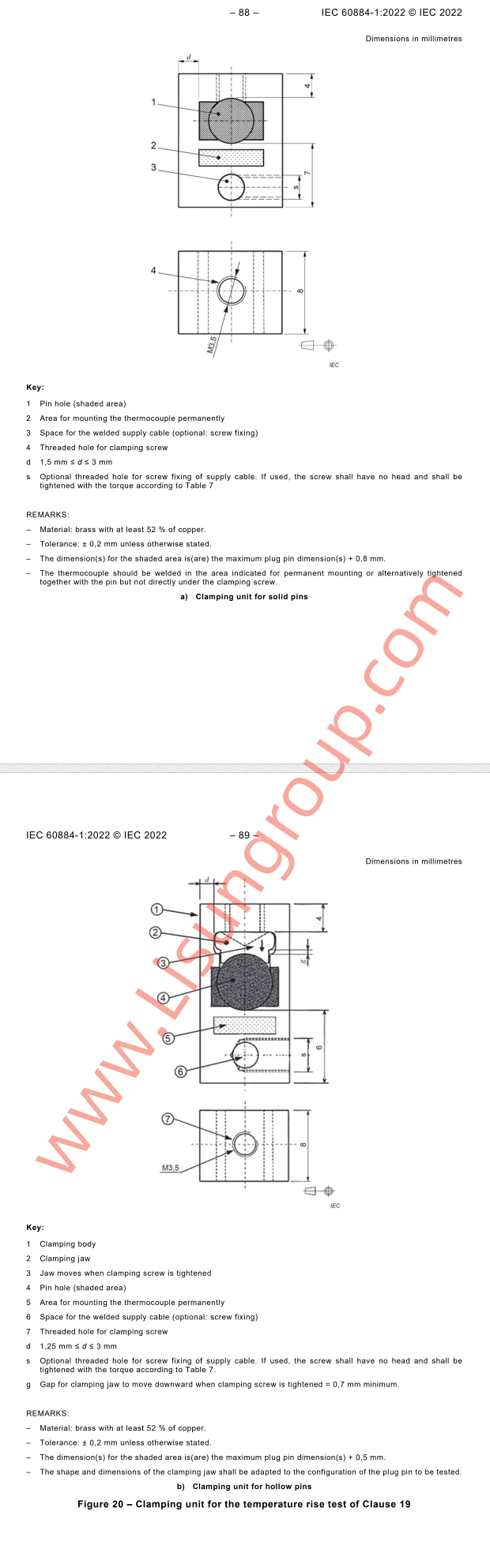

IEC 60884-1:2022 Figure 20
