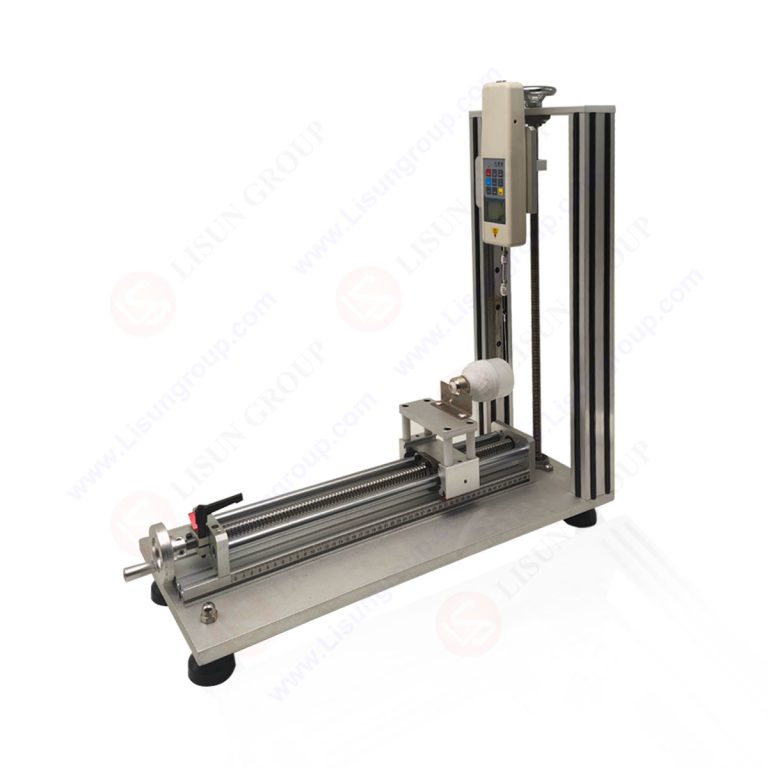

Bending Moment and Mass Imparted Test Device for Semi-Lamp

The LS-WJ63 Bending Moment and Mass Imparted Test Device for Semi-Lamp is used to simulate the bending moment loads borne by semi-luminaires during installation, transportation, and long-term use. It accurately assesses the structural strength, installation connection reliability, and deformation resistance of the tested luminaire, and is suitable for luminaire manufacturers, quality supervision agencies, and third-party testing laboratories. The device is composed of an aluminum profile frame, a thrust gauge, and precision linear guide rails, featuring an aesthetically pleasing design, stable movement, and minimal clearance, ensuring accurate testing.

Standards:

Specifications:

• Bending moment range: 0.1~10N.m, accuracy: ±5%, mechanical;
• Digital push-pull force gauge: force range 0~10N, resolution 0.001N;
• Lifting mechanism: 0~100mm, linear guide rail;
• Manually rotated power arm, pre-measured;
• Frame: aluminum profile.

Note: If you require to meet the standard IEC 62560:2011, Clause 6.2, Table 2 (GB 24906:2010 Clause 6.2, Table 2), please click on the LS-WJ62 Bending Moment Test Device for Lamp Cap.

IEC 60968:2015 Clause 6.2

IEC 60968:2015 Figure 3

IEC 60968:2015 Table 2
