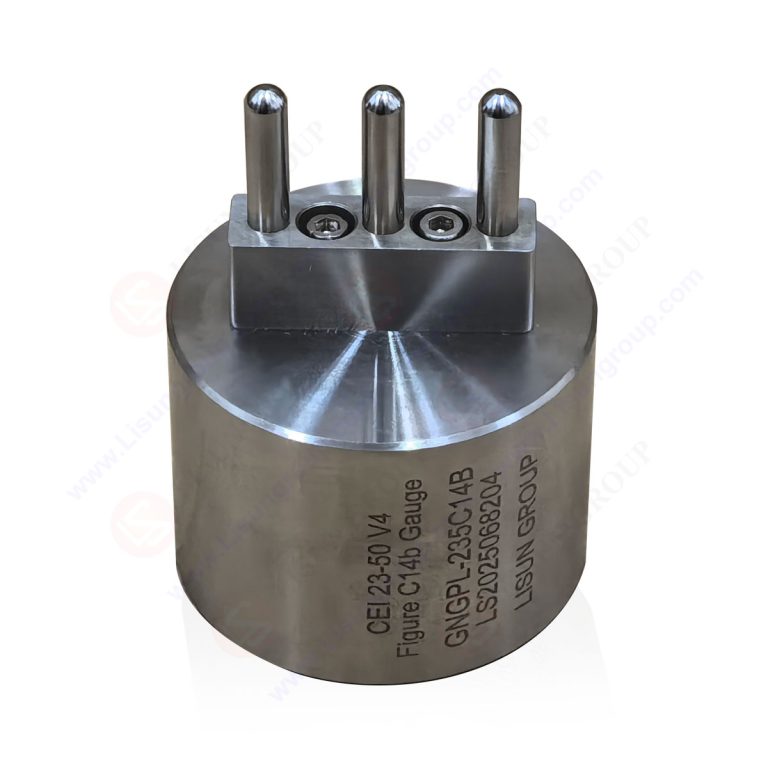

CEI 23-50 V4 Figure C14b Gauge

CEI 23-50 V4 Figure C14b Gauge is meticulously designed to meet the requirements of par. 19.101, specializing in verifying the electrical continuity and retention of specific plugs in P40 sockets. It comes in two variants tailored to different front profile heights of the plugs, ensuring precise and reliable testing performance for compliance with relevant standards.

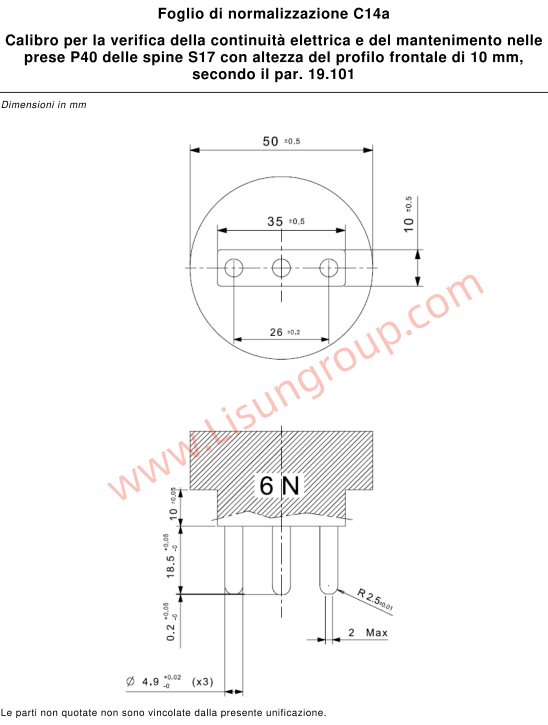

Specifications:
• Overall dimension: 50 ±0.5 mm
• Dimension: 35 ±0.5 mm
• Dimension: 26 ±0.2 mm
• Radius: R 2.5 ±0.01 mm
• Maximum dimension: 2 mm
• Diameter: ø4.9 mm
• Feature: 3 sets of ø4.9 mm diameter components
• Front profile height options: 10 mm and 12 mm

Test Procedures:
• Ensure the gauge and the P40 socket are clean and free from any debris or damage that might affect testing results.
• Select the appropriate gauge variant based on the front profile height (10 mm or 12 mm) of the S17 plug to be tested.
• Carefully insert the gauge into the P40 socket, ensuring proper alignment with the socket’s internal structure.
• Verify the electrical continuity by following standard electrical testing protocols compatible with the gauge and socket.
• Assess the retention force of the plug in the socket by observing the interaction between the gauge and the socket’s retention mechanisms.
• Record the test results to confirm whether the P40 socket meets the specified requirements for electrical continuity and retention.
• Remove the gauge gently from the socket after completing the test to avoid any damage to either the gauge or the socket.

Applications:
• Quality control testing of P40 sockets in manufacturing facilities to ensure compliance with par. 19.101 standards.
• Routine maintenance and inspection of electrical equipment equipped with P40 sockets to verify ongoing performance.
• Compliance testing for electrical products utilizing S17 plugs and P40 sockets to meet industry regulatory requirements.
• Laboratory testing and research to evaluate the reliability and durability of P40 sockets under different conditions.
• Field testing of electrical installations involving P40 sockets to ensure safe and efficient operation.

CEI 23-50 V4 Figure C14b
