SMT-PA100A

09 Feb, 2024 156

UL 507 Figure 9.2 Articulate Probe with Web Stop PA100A UL

9.3 Stationary fans and permanently connected fans up in UL 507 9.3.1 In accordance with 9.1.1, the design and intended use of a stationary fan or of a fan intended to be permanently connected electrically is to be considered when evaluating an enclosure or guard. 9.3.2 The impeller of a stationary or permanently connected fan shall be constructed so that it cannot be contacted by the probe illust...

Articulate Probe with Web Stop Live Parts of UL 498 Figure 9.1

9.1 General 9.1.1 A device shall have live parts protected against exposure to contact by persons when fully assembled using all essential parts (described in 9.1.5) and installed in the intended manner. Exception No. 1: Male blades which are energized only when mated with the corresponding outlet are not required to comply with this requirement. Exception No. 2: Exposed wiring terminals or other ...

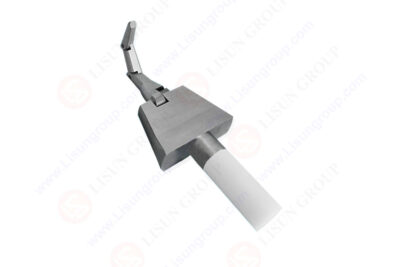

Articulate Probe with Web Stop with UL 1310 Figure 16.2

16 Accessibility of Live Parts 16.1 General 16.1.1 A live part that poses a risk of electric shock shall be located or enclosed so that the risk of contact is reduced. 16.1.2 The input impedance of the voltmeter used to measure voltage in accordance with the requirements of 16.2.1 and 16.3.1 is to be a minimum of one megohm. The input impedance of a meter with more than one megohm input impedance ...
