Home Products IEC61032 figure 12 test probe 18 and IEC61032 figure 13 test probe 19

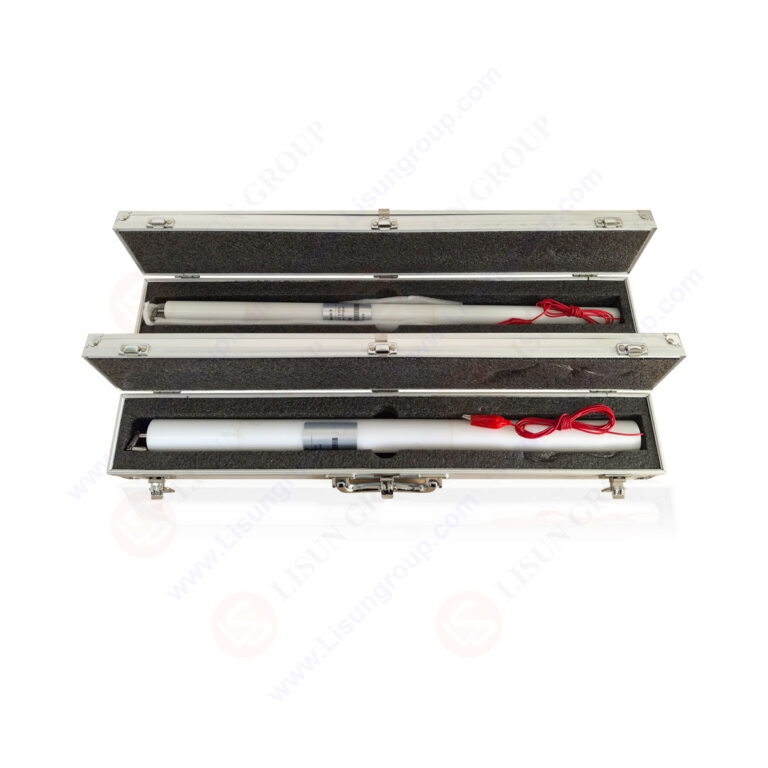

IEC61032 figure 12 test probe 18 and IEC61032 figure 13 test probe 19

Product No: SMT-1819

Leave a Message

Description

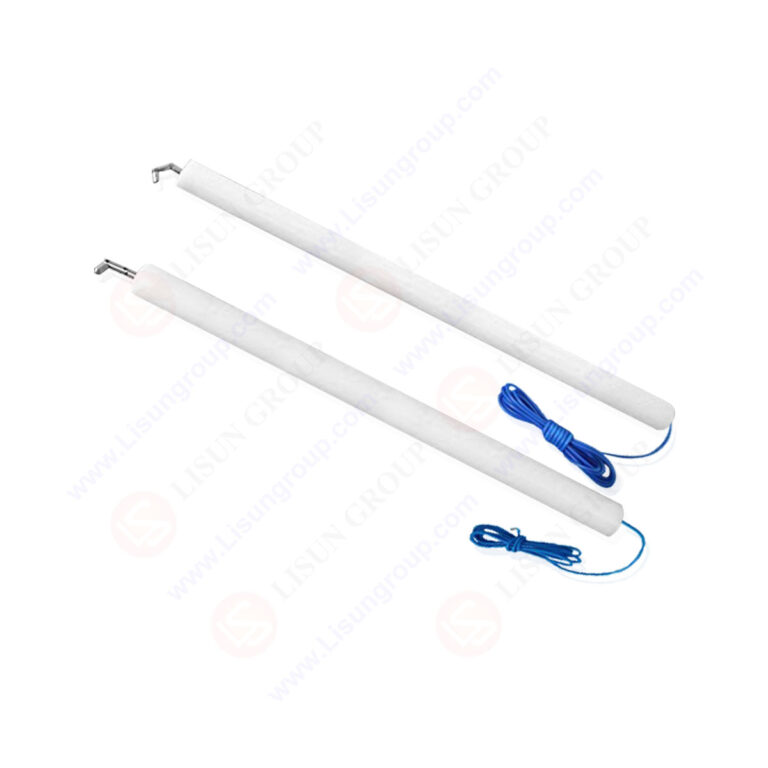

The IEC 61032 Small Finger Probe (Test Probe 18 & 19) is a child-specific safety tool designed to test if equipment openings block access to hazardous parts by infants (0–36 months) and young children (37–96 months). It features two articulated probes: Probe 18 (mimicking 3–8-year-olds’ fingers) and Probe 19 (simulating infants’ smaller digits), with flexible joints that replicate natural hand movements. Crafted from conductive metal (for detecting live parts) and paired with insulated handles, it applies a gentle 10N thrust to mimic curious child contact. Strictly compliant with IEC 61032, it’s critical for manufacturers of child-accessible devices to prevent injuries and meet global safety rules.

Standards:

Standards No.	Clause/Figure	Standards Name
IEC 61032:2017	Clause 5.8, Figure 12 (Probe 18); Clause 5.9, Figure 13 (Probe 19)	Test probes for protection against access to hazardous parts
IEC 60335-1:2023	Clause 22.5, Figure 22.5	Standard for Safety for Household and Similar Electrical Appliances – Part 1: General Requirements
UL 60950-1:2023	Clause 6.2.2, Figure 6.2.2	Standard for Safety for Information Technology Equipment – Safety – Part 1: General Requirements
EN 71-1:2020	Clause 8.2, Figure 8.2	Safety of toys – Part 1: Mechanical and physical properties

Specifications:

Parameter	Test Probe 18 (37–96 Months Children)	Test Probe 19 (0–36 Months Infants)
Probe Type	Child finger simulator (3–8 years old)	Infant finger simulator (0–3 years old)
Material	Conductive metal (resistance ≤ 0.1Ω; corrosion-resistant)	Conductive metal (resistance ≤ 0.1Ω; corrosion-resistant)
Handle Material	Insulated ABS plastic (resistance ≥ 100MΩ; heat-resistant up to 110°C)	Insulated ABS plastic (resistance ≥ 100MΩ; heat-resistant up to 110°C)
Joint Characteristics	1 flexible pivot joint; max bending angle: 90° ± 10°	1 flexible pivot joint; max bending angle: 90° ± 10°
Key Dimensions	– Tip Diameter: 8.6mm ± 0.1mm	– Tip Diameter: 5.6mm ± 0.1mm
	– Total Length: 451.6mm ± 0.8mm	– Total Length: 464.3mm ± 0.8mm
	– Collar Length: 101.6mm ± 0.3mm	– Collar Length: 101.6mm ± 0.3mm
Applied Thrust	10N ± 0.5N (mimics child’s curious contact force)	10N ± 0.5N (mimics infant’s grip force)
Core Function	Tests if equipment blocks 3–8-year-olds’ access to hazards	Tests if equipment blocks infants’ access to hazards

Test Procedures:
1. Inspect both probes for loose joints, bent tips, or cracked insulation; confirm conductivity with a test tool.
2. Power on the child-accessible device under test (EUT, e.g., a toy or fridge) and set it to normal mode.
3. Hold the insulated handle, use the joint to guide the relevant probe (18 for children, 19 for infants) into EUT openings (e.g., toy seams, fridge door gaps).
4. Apply a steady 10N thrust to advance the probe—stop if resistance from the EUT blocks insertion.
5. Check the connected live-part detector for signals (indicating contact with hazardous parts).
6. Record results: Pass if no contact; Fail if the probe reaches dangerous components.

Applications:
1. Testing plastic toy enclosure gaps (per EN 71-1:2020 Figure 8.2) to block infants’ (Probe 19) access to small internal parts.
2. Verifying household fridge door handle slots (compliant with IEC 60335-1:2023) to prevent young children (Probe 18) from touching cooling system wiring.
3. Safety checks for children’s learning tablet charging ports (per UL 60950-1:2023) to avoid infant (Probe 19) contact with live terminals.
4. Quality control for baby monitor casing seams during manufacturing, ensuring IEC 61032 compliance for infant safety.
5. Post-production testing of children’s ride-on toy control gaps (Probe 18) to meet global child equipment safety standards.
