IEC 60335-1:2020 Figure 13 Small Part Cylinder

Product No: SMT-335F13

  • Specifications

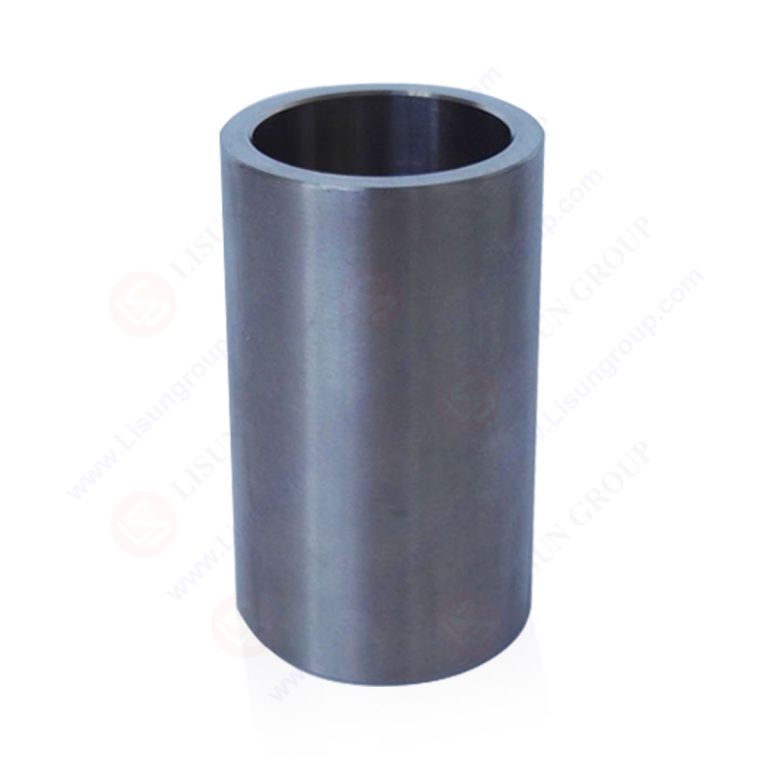

  • LISUN SMT-335F13 Small Parts Cylinder is manufactured strictly in accordance with IEC 60335-1:2020 Figure 13 (Clause 22.12). It is a standard test gauge to evaluate choking hazard risk of loose detachable components from household electrical appliances. When small components fall off appliances during normal operation or abuse tests, inspectors place the separated parts into this cylinder. If the component can be fully contained inside the cylinder, the product is judged to have potential swallowing and choking risk for young children.

    Specifications:

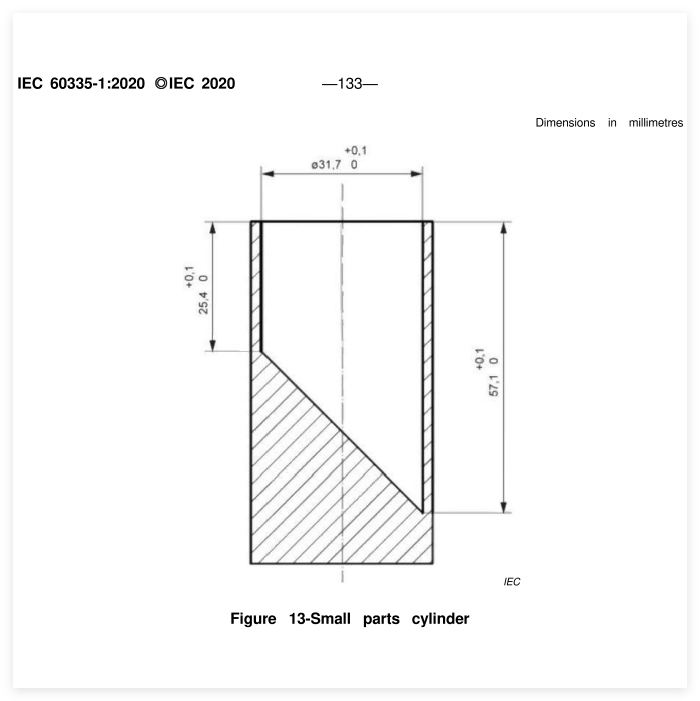

    • Internal Diameter：Ø31.7 mm (+0.1 / 0 mm)
    • Overall Height: 57.1 mm (+0.1 / 0 mm)
    • Vertical straight section depth: 25.4 mm (+0.1 / 0 mm)
    • Tolerance: Strictly follows the dimensional tolerance specified in IEC standard drawing

    Application:
    • Safety compliance test for household electrical appliances following IEC 60335-1
    • Check choking hazard of loose small removable parts
    • Used by manufacturer QC laboratory, independent test house, certification testing
    • Supporting safety assessment for appliances accessible to young children

    IEC 60335-1:2020 Figure 13 Small Part Cylinder

    IEC 60335-1:2020 Figure 13 Small Part Cylinder
