Product No: SMT-S3252

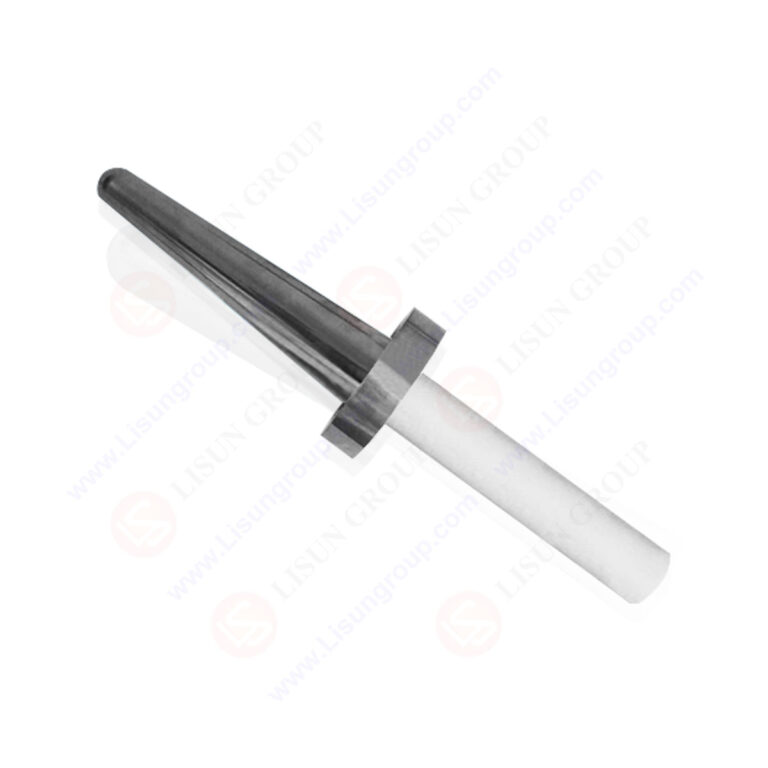

UL 1310 Figure 16.4 S3252 accessibility Probe for testing accessibility to hazardous moving parts.
Parameter :
1. Probe Total Length: 114.3mm(4.5 inches)
2. Tail Probe Diameter: 25.4mm(1.0 inch)
3. Head Probe Diameter: 50.8mm(2.0 inches)
4. Former Head Radius: R 14.3mm(0.25 inch)
5. Standard: UL1310 fig.16.4
Standard:
UL 1310 “Class 2 Power Units” Figure 16.4 S3252
Hazardous Moving Parts Probe with UL1310 Fig.16.4
