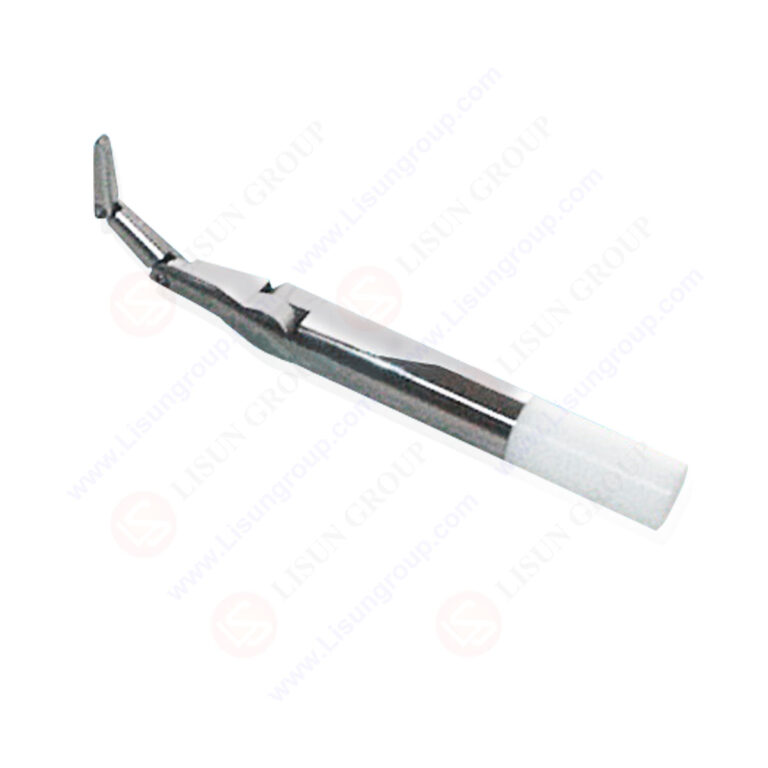

Articulate Probe with CSA C22.2 No.12 Figure 1

Articulate Probe with CSA C22.2 No.12 Figure 1 is a specialized safety tool designed to verify protection against access to hazardous parts in portable luminaires. Compliant with CSA C22.2 Figure 1, it features a flexible articulated design for navigating gaps in luminaire enclosures, a durable stainless steel tip (from the pointed end to the first knuckle) for reliable contact testing, and a nylon handle for secure, insulated grip. Its precision tolerances ensure accurate results, making it essential for validating the safety of portable lighting products in North American markets.

Specifications:
• Material Composition – Handle: Nylon (insulating, ergonomic grip); – Tip to first knuckle: Stainless steel (durable, corrosion-resistant)
• Tolerances:  ±0.2mm (applies to all dimensions except gaps between knuckles)
• Structural Design:  Articulated joints (enables flexible bending to access tight gaps in luminaires)
• Functional Range:  Designed for testing access to hazardous parts in portable luminaire enclosures
• User Safety Feature:  Insulated nylon handle (prevents electrical contact during testing)

Test Procedures:
• Inspect the probe for damaged joints, worn stainless steel tips, or cracked nylon handles; confirm tolerances meet specs.
• Power off the portable luminaire under test and place it on a stable, flat surface.
• Bend the probe’s articulated joints to match the angle of gaps/openings in the luminaire’s enclosure.
• Hold the nylon handle, align the stainless steel tip with target gaps, and gently insert to check access to hazardous parts.
• Verify if the tip can reach live components or sharp mechanical parts inside the luminaire.
• Record results to confirm compliance with CSA C22.2 Figure 1.

Applications:
• Safety testing of household portable luminaires (e.g., table lamps, floor lamps) per CSA C22.2.
• Compliance checks for commercial portable lighting (e.g., office desk lamps, retail display lights) in North American markets.
• Quality control for portable LED luminaires during production to prevent access to hazardous internal parts.
• Third-party certification testing (e.g., CSA, UL) for portable luminaires seeking market entry in Canada/USA.
• Pre-shipment safety verification of outdoor portable lights (e.g., camping lanterns) to meet CSA safety norms.
