Product No: GNGPL-3610-2PA

Leave a Message

=
  • Description
  • Download

  • The GNGPL-3610-2PA High Temperature Pressure Test Device is a professional device for testing the heat resistance of insulation and sheathing components. By applying a stabilizing force to the sample using a specialized blade under specific high-temperature conditions, and measuring the indentation on the sample surface after the test cycle, it accurately assesses the structural stability and heat resistance of the sample under high-temperature conditions, providing objective and reliable testing support for the quality control of related products.

    Standard:

    Standards Standards Name
    IEC 60884-1:2022 Plugs and socket-outlets for household and similar purposes – Part 1: General requirements
    IEC 60811-3-1:2020 Electric and optical cables – Test methods for non-metallic materials – Part 3-1: Mechanical tests – Compression test at elevated temperature
    GB/T 2099.1-2021 家用和类似用途插头插座 第 1 部分：通用要求
    GB/T 2951.31-2008 电缆和光缆 绝缘和护套材料通用试验方法 第 31 部分：高温压力试验

    Specification:

    LISUN Model GNGPL-3610-2PA GNGPL-3610-3PA
    Working Station 2 working station 3 working station
    Blade 1pc rectangular blade and 1pc Φ6 round blade  3pcs rectangular blades
    Blade thickness 0.7±0.01mm
    Weights 2.5N Weights (Contains the weight of the blade): 2pcs 1~1kg Weights: 3sets
    Heating temperature 200℃ or temperature according to the cable specified (Work together with LISUN GW-225 High Temperature Chamber)
    Test time 2h D≤15mm test for 4h; D>15mm test for 6h
    Cooling transition time 10s Rapid cooling, cold water spray method can be used
    Qualified judgment Diren depth less than or equal to 50% The median value of the indentation depth is less than or equal to 50% of the average value of the sample thickness
    According to the standards IEC 60884-1 Clause 30.1 Figure 41 IEC 60811-3-1 Clause 8 Figures 1, 2 and 3

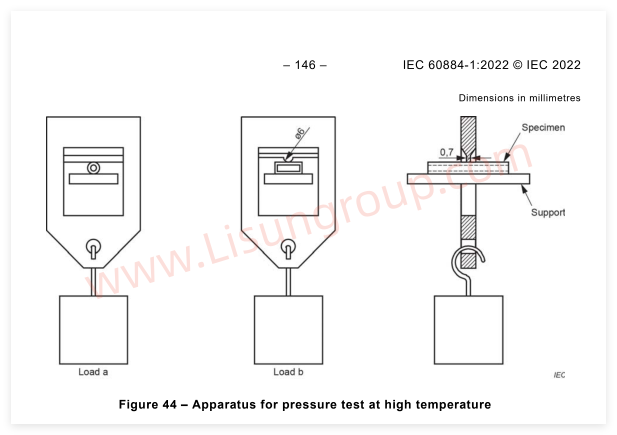

    IEC 60884-1 Figure 41 Test Apparatus for pres test at high temperature
