Conduits Compression Test Apparatus According to IEC 61386-1: 2017 Clause 10.2 and Figure 1

Product No: LS-B50

Leave a Message

=
  • Description

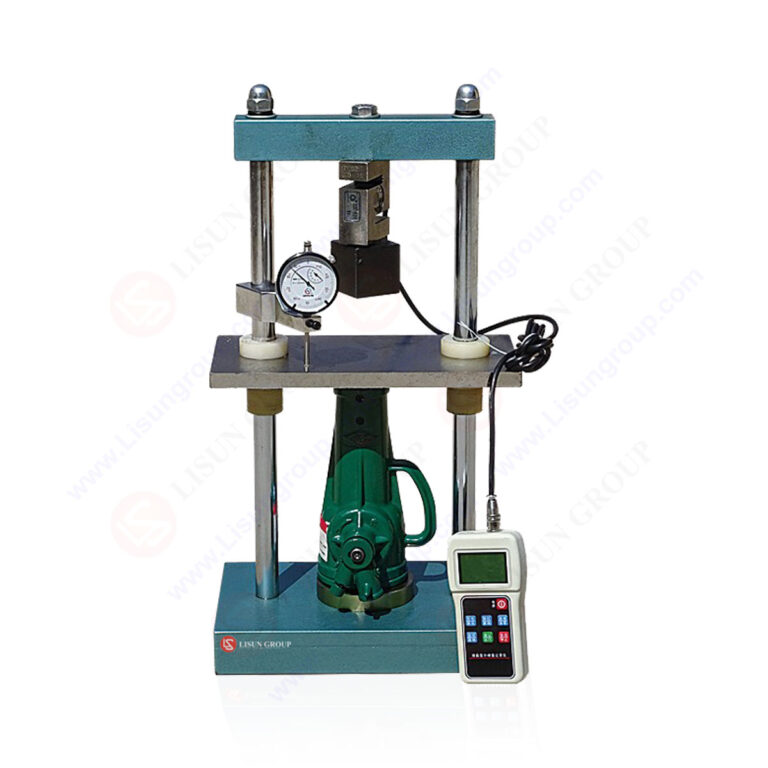

  • Conduits Compression Test Apparatus is suitable for pressure testing of various plastic pipes, plastic corrugated pipes, etc. A cubic steel block is placed on the sample, and a slowly increasing force is applied by the lever and the weight. The large-scale surface meter measures the change in the outer diameter of the sample at the flattening point, and checks the mechanical properties of the sample. It complies with IEC 61386-1: 2017 Clause 10.2 and Figure 1 (GB/T 20041.1-2015 Clause 10.2 and Figure 1), IEC 61386-21, GB/T 14823.2, JG 3050 and ZBG 33008.

    Specification:
    •  Maximum pressure: 5000N
    •  Pressure accuracy: ±1%
    •  Pressure head specification: 50*50mm
    •  Pipe diameter change measurement range: 0-12mm, measurement accuracy 0.01mm
    •  Lifting plate size: 300*150mm
    •  Lifting range: 200mm
    •  Overall dimensions: 310*210*700mm
    •  Weight: 55kg

    Standard:
    IEC 61386-1 (GB/T 20041.1)  “Conduit systems for cable management – Part 1: General requirements” Clause 10.2 and Figure 1
    IEC 61386-21 (IEC 60614-2-2, IEC 614-2-2) “Conduit systems for cable management – Part 21: Particular requirements – Rigid conduit systems”

    IEC 61386-1: 2017 Clause 10.2

    IEC 61386-1: 2017 Figure 1
