Product No: LS-B45

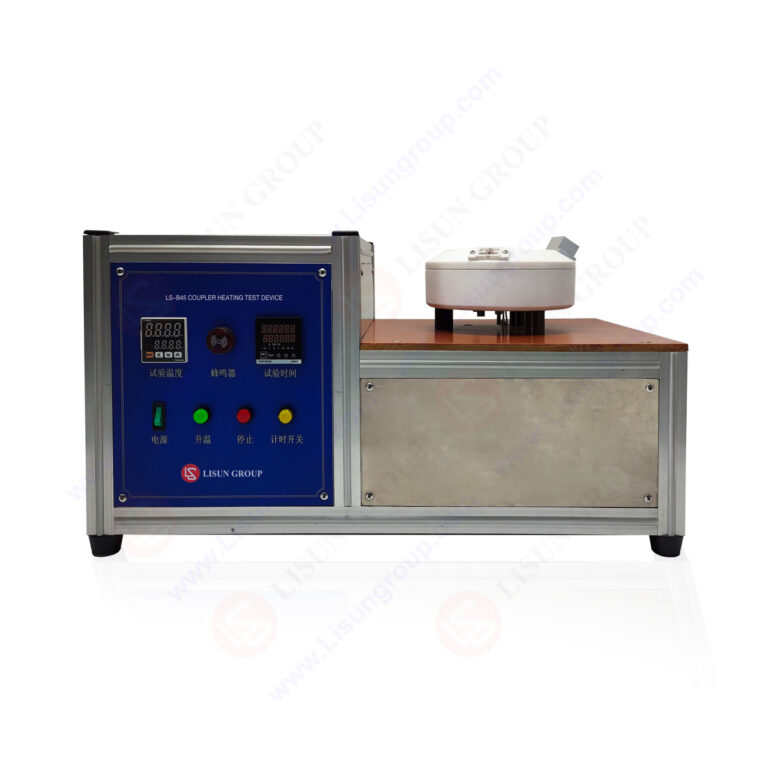

LS-B45 Coupler Heating Test Device uses electric heating to test the heat resistance of device couplers and connectors. Designed and manufactured according to relevant standards, it can simulate the use environment under thermal or extreme heat conditions. Through precise temperature control and time setting, it provides reliable support for product performance testing and helps related products verify performance and control quality in specific environments.
Standards:
| Standards | Standards Name |
| IEC 60320-1:2021 | Connectors for use in electrical equipment |
| GB/T 17465.1-2022 | 家用和类似用途器具耦合器 第 1 部分：通用要求 |
Specification:
| Station | Single station |
| Electrical Control Method | Button control and digital display |
| Heating Method | Electric heating: RT+10~160°C ±2°C (Adjustable) |
| Test Items | 10A heat-resistant appliance input socket: Tests 10A connectors, test temperature 120°C ±2°C |
| 10A heat-resistant appliance input socket for very hot conditions: Tests 10A connectors, test temperature 155°C ±2°C | |
| 16A heat-resistant appliance input socket for very hot conditions: Tests 16A connectors, test temperature 155°C ±2°C | |
| Test Duration | 0-99 hours 59 minutes, presettable |
| Coupling Center Distance | Evenly arranged in a circle with a diameter of 175mm |
| Standard Gauge | Standard 10A heat-resistant, 10A very hot resistant, and 16A very hot resistant heating gauges included |
| Applicable Environment | Power supply AC 220V ±10% / 50-60Hz, operating temperature 5-35°C, humidity 30%-90%. |
IEC 60320-1:2021 Clause 18.2 and Figure 5
