Gauges of CEE 7 C3 for 10/16A 250V Two-pole Socket-outlets

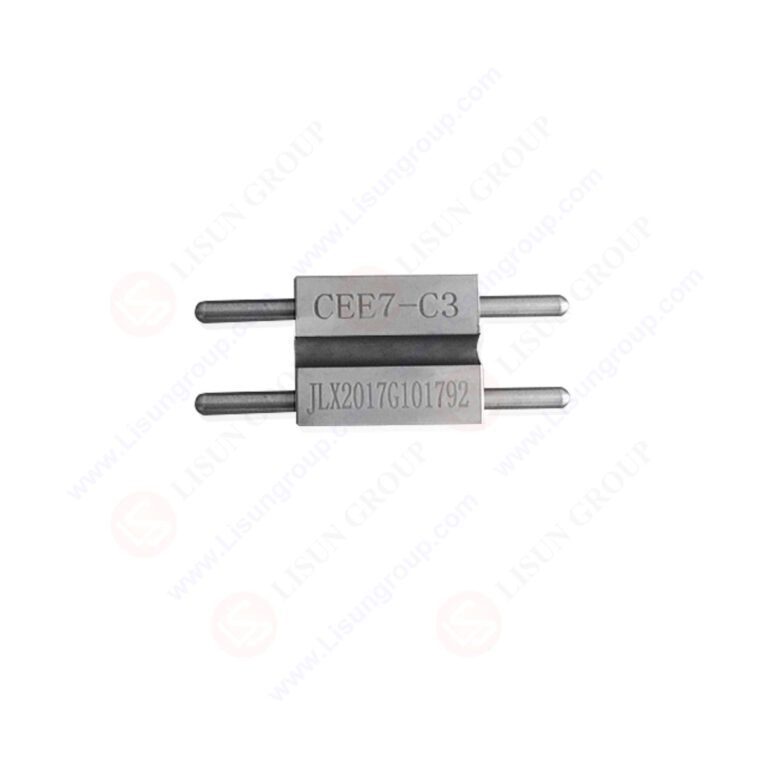

Gauges of CEE 7 C3 for 10/16A 250V Two-pole Socket-outlets is tailored for verifying the structural and dimensional compliance of 10/16A 250V two-pole socket-outlets with IECEE CEE-7 standards. It is precision-engineered to meet strict requirements for dimensions, tolerances, material quality, hardness, and surface roughness. With material hardness exceeding 50HRC and a low thermal expansion coefficient, the gauge maintains stable and reliable dimensional accuracy, ensuring that two-pole plugs can be fully inserted into the tested socket-outlets without undue force—consistent with standard specifications.

Specifications:
• Rated current compatibility: 10/16A
• Rated voltage compatibility: 250V
• Applicable product type: Two-pole socket-outlets
• Compliance standard: IECEE CEE-7 “Specification for plugs and socket-outlets for domestic and similar purpose” C3
• Core function: Acceptance testing of two-pole plug insertion
• Material hardness: Above 50HRC
• Material property: Low thermal expansion coefficient
• Dimensional feature: Stable and reliable with strict tolerance control
• Surface finish: Meets standard requirements for surface roughness
• Key performance requirement: Pins on both sides of the gauge can be fully inserted into the socket-outlet without undue force
• Corresponding standard figure: Fig.3

Test Procedures:
• Prepare the test gauge and the 10/16A 250V two-pole socket-outlet to be tested, ensuring both are clean, free from debris, damage, or deformation that may affect test results.
• Confirm the gauge’s dimensions and surface condition comply with IECEE CEE-7 C3 standard requirements before starting the test.
• Align the gauge’s pins with the contact openings of the socket-outlet in accordance with the orientation specified in Fig.3 of the standard.
• Attempt to insert the gauge’s pins fully into the socket-outlet, applying only gentle and steady force without excessive pressure.
• Verify whether the pins can be completely inserted into the socket-outlet as required by the standard, checking for any obstruction or resistance that indicates non-compliance.
• Inspect the fit between the gauge and the socket-outlet to ensure structural and dimensional conformity.
• Record the test result, confirming whether the socket-outlet meets the two-pole plug acceptance criteria of IECEE CEE-7 C3.
• After the test, remove the gauge carefully and store it in a dry, dust-free environment to preserve its precision.

Applications:
• Quality inspection of 10/16A 250V two-pole socket-outlets in the electronics manufacturing industry.
• Compliance testing of socket-outlets during production line quality control processes.
• Dimensional and structural verification in the R&D phase of new socket-outlet designs to ensure adherence to IECEE CEE-7 C3 standards.
• Routine quality assurance for electrical appliances equipped with compatible two-pole socket-outlets.
• Third-party testing and certification services for two-pole socket-outlets to validate two-pole plug acceptance.
• Compliance auditing in industries specializing in the production and supply of domestic and similar-purpose electrical connectors.
