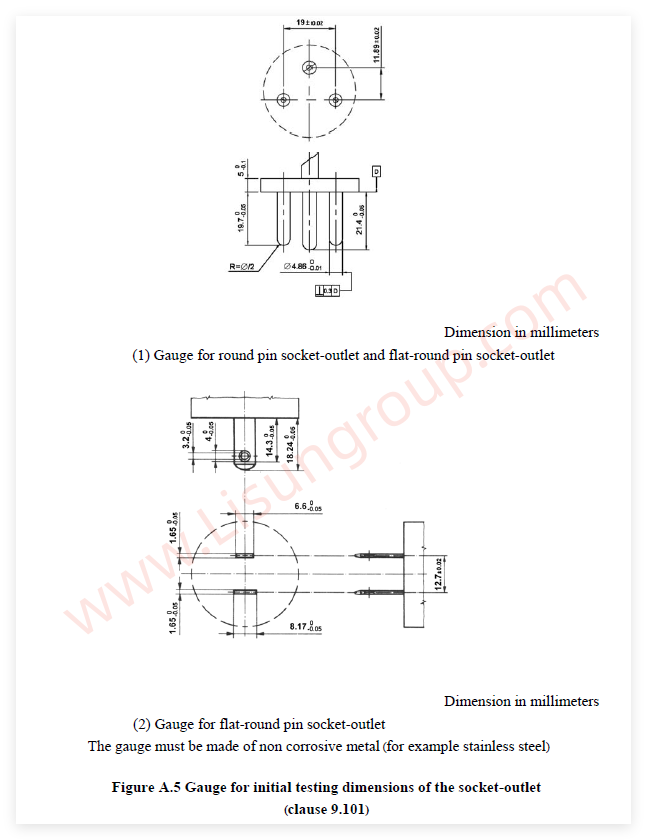

TIS166-2549 Figure A.5 Test Gauge for Initial Inspection Dimension of Socket

GNGPL-TIS166FA5 TIS166-2549 Figure A.5 Test Gauge consists of two sub-gauges: gauge for round pin socket-outlet and gauge for flat-round pin socket-outlet, manufactured according to Thai Standard TIS 166-2549 Appendix A. This set of gauges is applied for initial dimension inspection of Thai standard socket-outlets. It verifies critical mating dimensions such as pin spacing and pin profile for round pin and flat-round pin sockets, ensuring proper interoperability with standard plugs. All gauges are made of non-corrosive stainless steel with sufficient mechanical strength, serving as essential test tool for TIS safety certification of Thailand socket-outlets.

Specifications:

• Compliance Standard: TIS 166-2549 Appendix A, Figure A.5
• Material: Stainless steel (non-corrosive metal)
• Dimensions: Fully comply with all millimeter dimensions and tolerances specified on drawing
• Applicable Products: Round pin socket-outlets, flat-round pin socket-outlets
• Function: Initial inspection of critical mating dimensions for socket-outlets

Test Procedures:
• Select the corresponding gauge according to sample type: Use gauge (1) for round pin sockets; both gauges can be tested sequentially for flat-round pin sockets.
• Align the gauge with socket entry holes and perform fitting test to check normal insertion.
• Verify key mating parameters including pin center distance, pin profile and insertion depth against standard limits.
• Repeat the fitting test on all socket positions of the sample.

Applications:
• Pre-compliance dimension inspection for socket-outlets applying for Thailand TIS 166-2549 certification
• Dimensional verification, incoming and outgoing inspection for Thai round pin & flat-round pin socket-outlets during R&D and production
• Third-party electrical safety testing laboratories
• Compliance test for interchangeability and mating dimension between plugs and sockets
• Avoid assembly failure caused by dimensional deviation of socket-outlets
