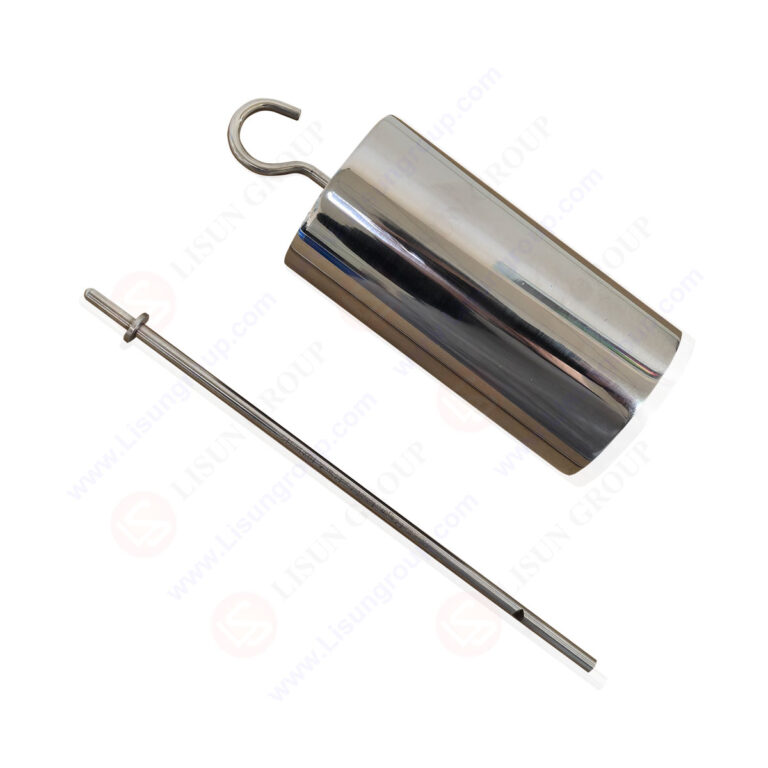

SB1609A Test Pin A of UL 498 Figure 123.1

Product No: GNGPL-SB1609A

Application:
This SB1609A Test Pin A of UL 498 Figure 123.1 is mainly used to test and inspect whether the structure and size of plugs and sockets conform to UL 498:2012 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.

Feature:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements; Material hardness is more than 50HRC;Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable.

Standard:
UL 498 “Attachment Plugs and Receptacles” Figure 123.1

SB1609A Test Pin A of UL 498 Figure 123.1
Tags：GNGPL-SB1609A , UL 498
