CEE 7 Gauge C 4 for Acceptance of Two-pole Plugs with Side Earthing-contacts

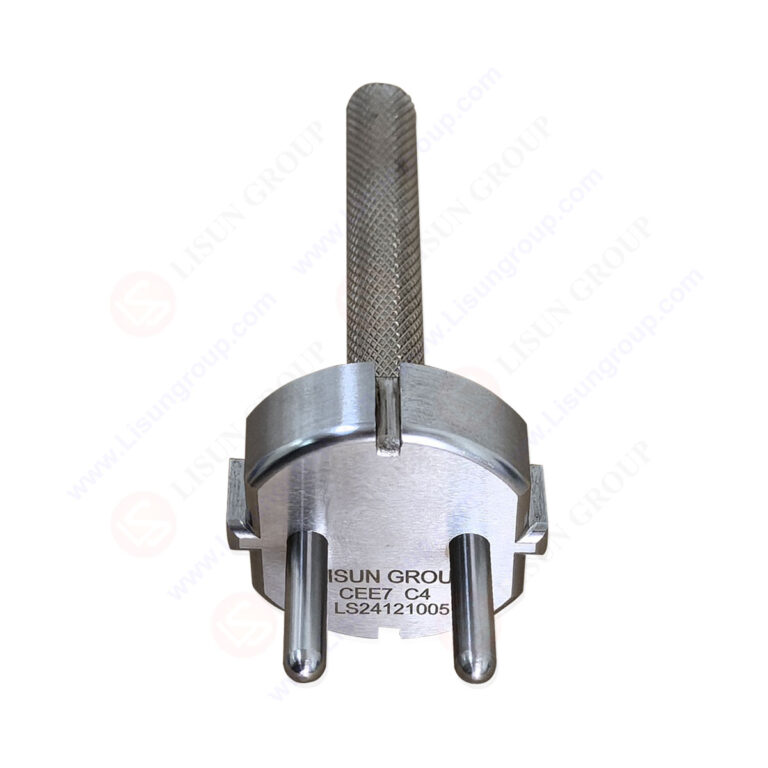

CEE 7 Gauge C 4 for Acceptance of Two-pole Plugs with Side Earthing-contacts is specialized in verifying the structural and dimensional compliance of 10/16A 250V two-pole socket-outlets with side earthing-contacts, strictly adhering to CEE7  standards. It is precision-manufactured to meet rigorous requirements for dimensions, tolerances, material quality, hardness, and surface roughness. With material hardness exceeding 50HRC and a low thermal expansion coefficient, the gauge maintains stable and reliable dimensional accuracy, ensuring that two-pole plugs with side earthing-contacts can be fully inserted into the tested socket-outlets without undue force, in line with standard specifications.

Specifications:
• Rated current compatibility: 10/16A
• Rated voltage compatibility: 250V
• Applicable product type: Two-pole socket-outlets with side earthing-contacts
• Compliance standard: CEE7
• Core function: Acceptance testing of two-pole plugs with side earthing-contacts
• Material hardness: Above 50HRC
• Material property: Low thermal expansion coefficient
• Dimensional feature: Stable and reliable with strict tolerance control
• Surface finish: Meets standard requirements for surface roughness
• Key performance requirement: Gauge pins can be fully inserted into the socket-outlet without undue force
• Corresponding standard figure: Fig.4
• Key dimensional parameters (mm): ϕ379±0.03, 32.9±0.03, 2.8±0.03, R=25±0.05, 19±0.05

Test Procedures:
• Prepare the test gauge and the 10/16A 250V two-pole socket-outlet with side earthing-contacts, ensuring both are clean, free from debris, damage, or deformation that may affect test validity.
• Confirm the gauge’s dimensions, surface condition, and hardness comply with CEE7 standard requirements prior to testing.
• Align the gauge’s pins with the contact openings and side earthing contacts of the socket-outlet as specified in Fig.4 of the standard.
• Attempt to insert the gauge’s pins fully into the socket-outlet, applying only gentle and consistent force without excessive pressure.
• Verify whether the pins can be completely inserted into the socket-outlet as required, checking for smooth insertion without obstruction or abnormal resistance.
• Inspect the fit between the gauge and the socket-outlet’s side earthing contacts to ensure structural and dimensional conformity.
• Record the test result, confirming whether the socket-outlet meets the acceptance criteria for two-pole plugs with side earthing-contacts per CEE7 standards.
• After the test, carefully remove the gauge and store it in a dry, dust-free environment to preserve its precision and service life.

Applications:
• Quality inspection of 10/16A 250V two-pole socket-outlets with side earthing-contacts in the electronics industry.
• Compliance testing of socket-outlets during production line quality control processes.
• Dimensional and structural verification in the R&D phase of new socket-outlet designs to ensure adherence to CEE7 standards.
• Routine quality assurance for electrical appliances equipped with compatible two-pole socket-outlets with side earthing-contacts.
• Third-party testing and certification services for two-pole socket-outlets to validate acceptance of two-pole plugs with side earthing-contacts.
• Compliance auditing in industries specializing in the production and supply of domestic and similar-purpose electrical connectors with side earthing-contacts.
