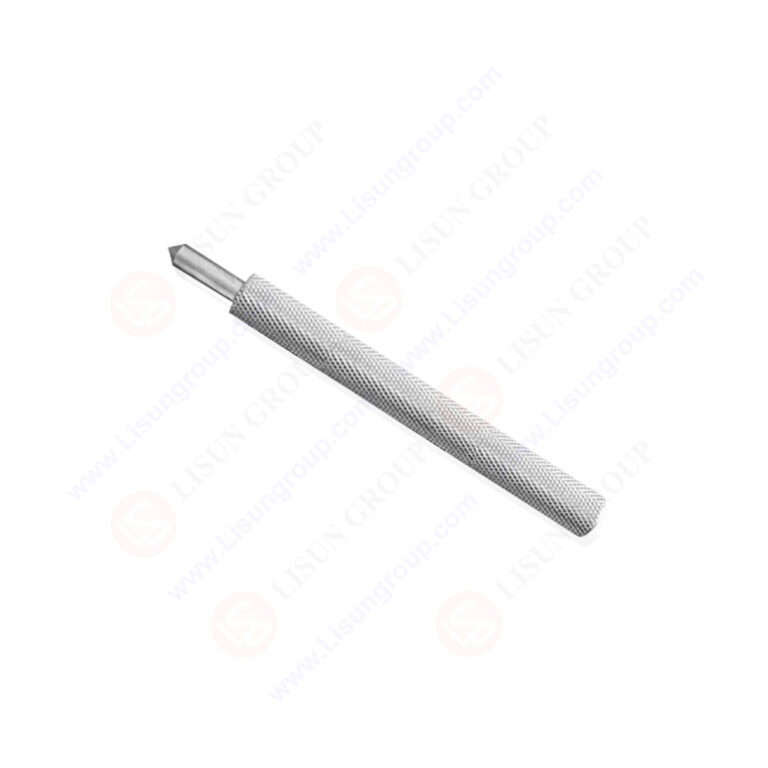

Probe PA190 According to UL 498 Figure 10.1
Probe PA190 According to UL 498 Figure 10.1

Probe PA190 According to UL 498 Figure 10.1

Product No: GNGPL-98101

Leave a Message

=
  • Description

  • Application:
    The Probe PA190 of UL 498 Figure 10.1 is a plug and socket test gauge used to test and inspect if the structure and size of plugs and sockets conform to UL 498 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.

    Feature:
    Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements; Material hardness is more than 50HRC;Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable.

    Standard:
    UL 498 “Attachment Plugs and Receptacles” Figure 10.1

    Probe PA190 According to UL 498 Figure 10.1

    Probe PA190 According to UL 498 Figure 10.1
