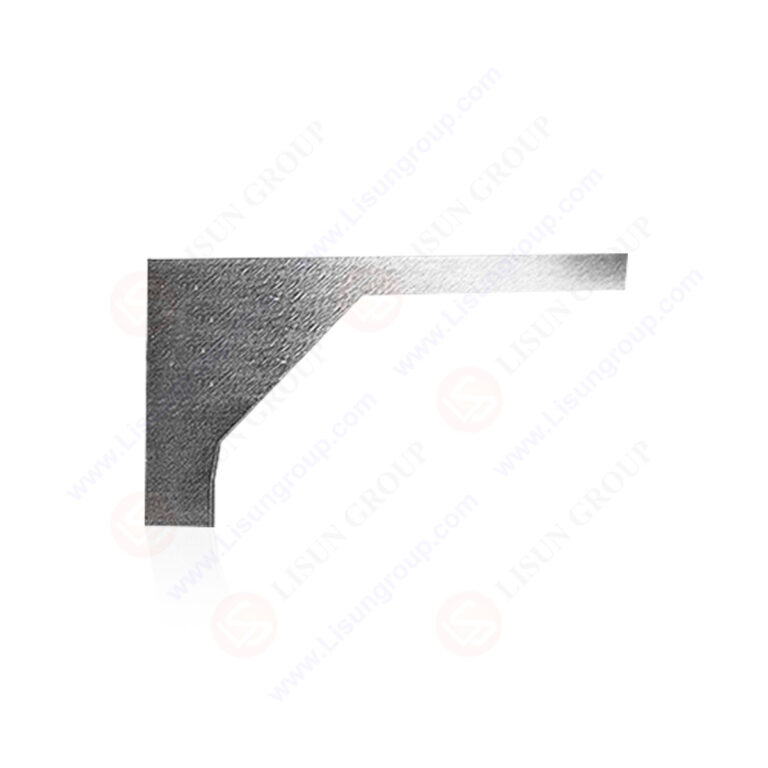

NF C 61-314 Figure 32 Calibre (épaisseur approximative 2 mm) pour la vérification du contour des capots ou plaques de recouvrement

NF C 61-314 Figure 32 Calibre (épaisseur approximative 2 mm) pour la vérification du contour des capots ou plaques de recouvrement is a specialized gauge designed for verifying the contour of covers or cover plates, strictly complying with NF C 61-314 “Prises de courant pour usages domestiques et analogues – Systèmes 6 A/250 Ⅴ et 16 A/250Ⅴ” Figure 32. With an approximate thickness of 2 mm, it features precise structural design and dimensional accuracy, ensuring that the tested components meet the contour requirements for domestic and similar purpose electrical applications.

Specifications:
• Complies with NF C 61-314 “Prises de courant pour usages domestiques et analogues – Systèmes 6 A/250 Ⅴ et 16 A/250Ⅴ” Figure 32
• Thickness: Approximately 2 mm
• Function: Contour verification of covers or cover plates
• Applicable systems: 6A 250V and 16A 250V domestic and similar purpose sockets
• Key dimensions (with tolerances, in mm/degrees):
• Angle: 45° ± 5°
• Angle: 10° ± 5′ (30 minutes minimum specification)
• Linear dimension: 10 ± 1 mm
• Structural features: Equipped with Face A, Face B, and Face C for multi-faceted contour inspection
• Engineered for precise dimensional compliance verification

Test Procedures:
• Prepare the cover or cover plate of the target 6A 250V or 16A 250V socket, ensuring its surface is clean, flat, and free of deformations or debris.
• Identify the corresponding inspection surfaces (Face A, Face B, Face C) of the gauge based on the contour characteristics of the tested component.
• Align the gauge’s inspection faces accurately with the contour of the cover or cover plate, ensuring full and close contact between the gauge and the component’s surface.
• Check for gaps, misalignment, or irregularities between the gauge and the component’s contour throughout the contact area.
• Verify compliance: If the gauge fits seamlessly with the cover/cover plate without significant gaps or misalignment, the contour meets the NF C 61-314 standard requirements.

Applications:
• Contour inspection of covers or cover plates for 6A 250V domestic and similar purpose sockets.
• Contour verification of covers or cover plates for 16A 250V domestic and similar purpose sockets.
• Quality control and compliance verification in the electronics manufacturing industry.
• Dimensional conformity assessment during the production process of electrical sockets and their accessories.
• Inspection of socket covers/cover plates for adherence to NF C 61-314 standards in household and commercial electrical systems.
