Gauges C 14 of CEE7 for Dimensions of Mounting Boxes of 10/16A 250V Two-pole Flush-type Socket-outlets

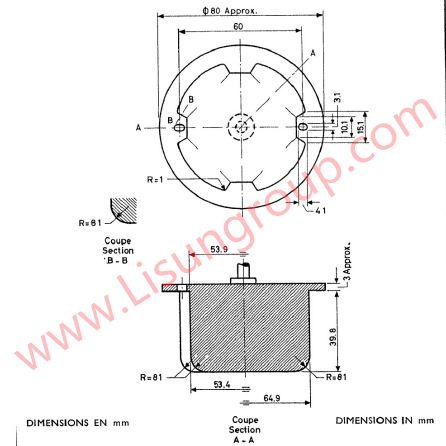

This Gauges C 14 of CEE7 for Dimensions of Mounting Boxes of 10/16A 250V Two-pole Flush-type Socket-outlets is a specialized dimensional verification gauge developed in strict compliance with the IECEE CEE-7 “Specification for plugs and socket-outlets for domestic and similar purpose” C 14 standard. It is specifically designed for inspecting the dimensions of mounting boxes used with 10/16A 250V two-pole flush-type socket-outlets, ensuring the mounting boxes meet precise dimensional requirements to enable proper installation and compatibility with the corresponding socket-outlets.

Specifications:
• Complies with IECEE CEE-7 “Specification for plugs and socket-outlets for domestic and similar purpose” C 14 standard
• Applicable to mounting boxes of 10/16A 250V two-pole flush-type socket-outlets
• Focuses on dimensional verification of target mounting boxes
• Manufacturing tolerances for all dimensions are ±0.05 mm
• Allows insertion into the mounting box without undue force, with the gauge’s flange resting on the top of the box
• Compatible with fixation using two 3 mm diameter screws
• Features specified dimensional parameters (including radii and linear measurements) in metric (mm) units

Test Procedures:
• Prepare the 10/16A 250V two-pole flush-type socket-outlet mounting box that requires dimensional verification.
• Place the mounting box on a flat, stable surface to ensure accuracy during the test.
• Align the gauge with the opening of the mounting box, ensuring correct positional alignment.
• Insert the gauge into the mounting box gently, applying no undue force throughout the process.
• Check if the flange of the gauge securely rests on the top of the mounting box, indicating proper dimensional fit.
• Use two 3 mm diameter screws to fix the gauge to the mounting box and verify the stability of the connection.
• Confirm that all dimensional and installation requirements specified in the CEE-7 C 14 standard are met; if insertion is forced or the flange fails to rest properly, the mounting box does not comply with specifications.

Applications:
• Dimensional inspection of mounting boxes during the production of 10/16A 250V two-pole flush-type socket-outlets
• Quality control in manufacturing facilities to ensure batch consistency of mounting boxes
• Compliance verification for mounting boxes to meet IECEE CEE-7 C 14 standard requirements
• Dimensional validation for mounting box prototypes in R&D processes
• On-site installation verification by electricians to ensure compatibility with flush-type socket-outlets
• Third-party testing and certification of mounting boxes for market access
• Inventory quality auditing and maintenance checks for existing mounting box stock

Gauges C 14 of CEE7 for Dimensions of Mounting Boxes of 10/16A 250V Two-pole Flush-type Socket-outlets
