Gauge for Outlets 16A 250V A.C. According to IEC 60906-1 Figure 5A/5B

This Gauge for Outlets 16A 250V A.C. According to IEC 60906-1 Figure 5A/5B is engineered to check the maximum withdrawal force of 16A 250V A.C. plugs and socket-outlets, complying with IEC 60906-1 Figure 5A/5B and Clause 22 of IEC 60884-1. Crafted from hard corrosion-resistant metal (such as stainless steel), it ensures accurate and durable performance in verifying the withdrawal force requirement for household and similar purpose socket-outlets, playing a vital role in product quality control and compliance with international electrical standards.

Specifications:
• Applicable Standards: IEC 60906-1 Figure 5A/5B, Clause 22 of IEC 60884-1
• Rated Voltage Compatibility: 250V A.C.
• Rated Current Compatibility: 16A
• Material: Hard corrosion-resistant metal (e.g., stainless steel)

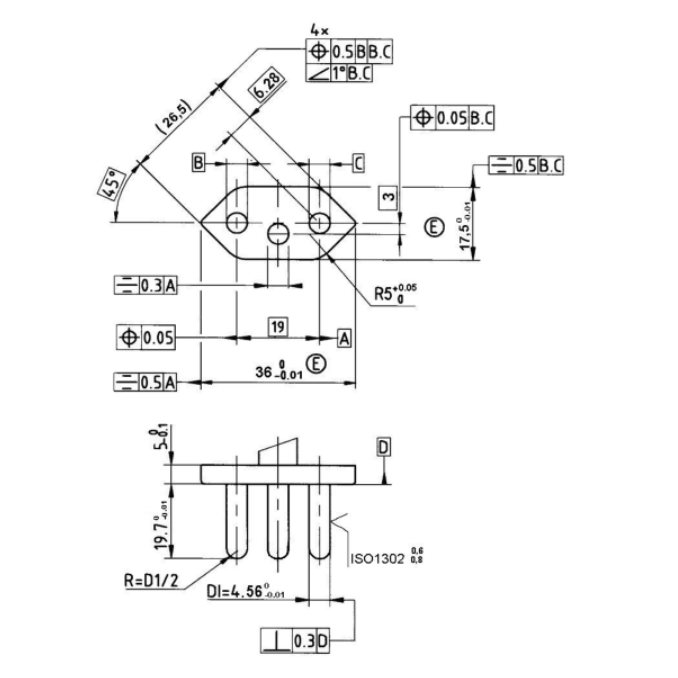

• Dimension D1: 4.56 mm (tolerance: -0.01 mm)
• Radius Specification: R = D1/2
• Additional Dimension Parameters: Includes 0.5 mm tolerance specifications, 1° angular tolerance, 6.28 mm dimension, R5 mm radius (tolerance: +0.05 mm), 19 mm dimension, 36 mm dimension (tolerance: -0.01 mm), and 0.3 mm dimension
• Surface Quality Standard: Complies with ISO 1302

Test Procedures:
• Ensure the gauge is clean and free of debris or corrosion before initiating the test.
• Confirm that the 16A 250V A.C. socket-outlet to be tested is installed or positioned in a stable, standard orientation as required by relevant standards.
• Insert the gauge into the socket-outlet’s contact assembly in strict accordance with the structural requirements of IEC 60906-1 Figure 5A/5B.
• Apply a steady and gradual pulling force to the gauge to simulate the withdrawal of a plug from the socket-outlet.
• Measure and record the maximum force required to fully withdraw the gauge from the socket-outlet.
• Compare the measured maximum withdrawal force with the limit values specified in Clause 22 of IEC 60884-1 to determine compliance.

Applications:
• Maximum withdrawal force testing of 16A 250V A.C. household socket-outlets.
• Compliance verification for plugs and socket-outlets manufacturers to meet IEC 60906-1 and IEC 60884-1 standards.
• Quality control inspections in the production process of electrical socket-outlets for household and similar purposes.
• Conformance testing for electrical products intended for international markets requiring adherence to IEC standards.
• Performance evaluation and validation in research and development of socket-outlet products.
• Third-party certification and audit testing for electrical equipment compliance.

Gauge for Outlets 16A 250V A.C. According to IEC 60906-1 Figure 5A

Gauge for Outlets 16A 250V A.C. According to IEC 60906-1 Figure 5B
