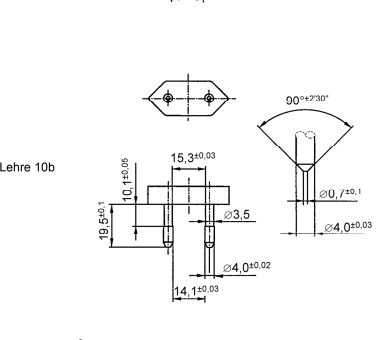

DIN-VDE 0620-1-Lehre10b Prüfung auf Unmöglichkeit des einpoligen Einführens B

This DIN-VDE 0620-1-Lehre10b Prüfung auf Unmöglichkeit des einpoligen Einführens B is meticulously designed to assess the impossibility of single-pole insertion for plugs and sockets, adhering strictly to the rigorous requirements of relevant standards. It serves as a critical testing tool for manufacturers and quality control departments, ensuring that electrical products meet essential safety criteria to prevent potential electrical hazards caused by incorrect insertion. With its precise structural design and high-quality material selection, the gauge delivers reliable and consistent testing results, effectively supporting the production of safe and compliant electrical equipment.

Specifications:

• Compliance: Fully conforms to DIN-VDE 0620-1 standard requirements
• Material: High-strength stainless steel, ensuring corrosion resistance and long service life
• Dimensional Tolerance: ±0.02mm, guaranteeing accurate testing precision
• Operating Temperature Range: -10℃ to 50℃, suitable for various working environments
• Storage Temperature Range: -20℃ to 60℃, facilitating convenient storage without performance degradation
• Weight: Approximately 0.8kg, offering easy handling and operation
• Surface Treatment: Polished finish to prevent scratches on tested products

Test Procedures:

• Prior to testing, ensure the gauge and the tested plug/socket are clean and free from any debris or damage that might affect the test results.
• Place the tested plug or socket on a stable and flat test bench, ensuring it is securely fixed to avoid movement during the test.
• Hold the gauge by its non-testing end, aligning the testing part with the insertion opening of the plug or socket in a single-pole direction.
• Apply a uniform and gradual force to the gauge, attempting to insert it into the plug or socket in the single-pole manner as specified by the standard.
• Observe whether the gauge can be inserted successfully. If insertion is impossible or cannot be completed as required, the product passes the test; if insertion is smooth and meets the single-pole insertion condition, the product fails the test.
• After the test, record the test results in detail, including the product information, test time, and specific observation phenomena.
• Clean the gauge and the tested product, and place the gauge back in its dedicated storage case for subsequent use.

Applications:

• Quality control testing in the production process of household plugs and sockets, ensuring each product meets safety standards before leaving the factory.
• Compliance testing for electrical equipment manufacturers, verifying that the plug/socket components used in their products meet DIN-VDE 0620-1 requirements.
• Third-party testing institutions conducting product certification and quality inspection, providing accurate and reliable test data for product evaluation.
• Research and development of new plug and socket products, assisting R&D personnel in verifying the rationality of product structural design during the prototype stage.
• After-sales quality verification, helping enterprises and relevant departments quickly assess the safety performance of problematic products in the market.
• Educational and training institutions in the electrical field, serving as a practical teaching tool to demonstrate the safety testing principles of electrical products.
