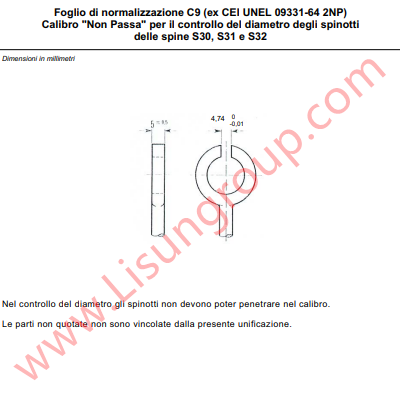

CEI-23-50 Foglio di normalizzazione C9 (ex CEI UNEL 09331-64 2NP) Calibro “Non Passa” per il controllo del diametro degli spinotti delle spine S30, S31 e S32

CEI 23-50 C9 No-Go Gauge for Controlling Plug Pin Diameter is designed and manufactured in strict accordance with CEI 23-50 Normalization Sheet C9 and belongs to the “Non Passa” type of precision testing tool. It is specifically used to verify the pin diameter of S30, S31 and S32 plugs, with the core requirement that the pins of these plugs must not be able to penetrate the gauge. By conducting this dimensional verification, the gauge ensures that the plug pins meet the specified size standards, which is crucial for maintaining stable electrical contact between plugs and sockets and preventing potential safety risks such as poor connection or short circuits caused by oversized pins. It is an indispensable testing instrument for enterprises and institutions engaged in the production, quality control and compliance testing of household and similar electrical plugs.

Specifications
• Complies with the requirements of CEI 23-50 Normalization Sheet C9
• Features a key dimensional parameter of 4.74 mm for the no-go detection part
• Is categorized as a “Non Passa” gauge dedicated to pin diameter inspection of specific plug types
• Adopts high-precision machining processes to ensure strict dimensional accuracy and consistency of the detection part
• Has a robust structure that can withstand repeated testing operations without deformation or wear affecting detection results
• Is only applicable for verifying the pin diameter of S30, S31 and S32 plugs, with a clear no-go detection criterion (pins must not penetrate the gauge)

Test Procedures
• Prepare the gauge and the to-be-tested S30, S31 and S32 plugs, ensuring that both the gauge’s detection part and the plug pins are clean, free of burrs, deformation or rust that may interfere with the test results.
• Take a single plug and identify its pins that need to be inspected for diameter compliance.
• Align the plug’s pin with the detection aperture of the “Non Passa” gauge, and attempt to insert the pin into the gauge’s aperture with appropriate, even force.
• Observe and record whether the pin can penetrate the gauge: if it cannot penetrate, the pin diameter meets the standard requirement; if it can penetrate, the pin is oversized and fails the test.
• Repeat steps 2-4 for all pins of each plug type (S30, S31, S32) to complete a full set of diameter verifications.
• After finishing all tests, clean the gauge’s aperture and the plug pins, and store the gauge in a dust-free, dry environment to preserve its detection precision for subsequent use.

Applications
• In-line quality control of plug production lines, where manufacturers use the gauge to conduct batch sampling or full inspection of plug pins to ensure the outgoing quality of finished plugs meets dimensional standards.
• Compliance testing of plug products by third-party electrical certification institutions, using the gauge to verify whether the pin diameter of the tested plugs conforms to relevant Italian safety and quality standards.
• R&D and prototype verification of plug products, where the gauge is applied to validate the dimensional accuracy of new plug pin designs and adjust production molds according to test results to optimize product performance.
• Market supervision and spot-check work carried out by regulatory authorities, using the gauge to inspect the pin diameter of plugs on the market and remove unqualified products that may pose electrical safety hazards.
